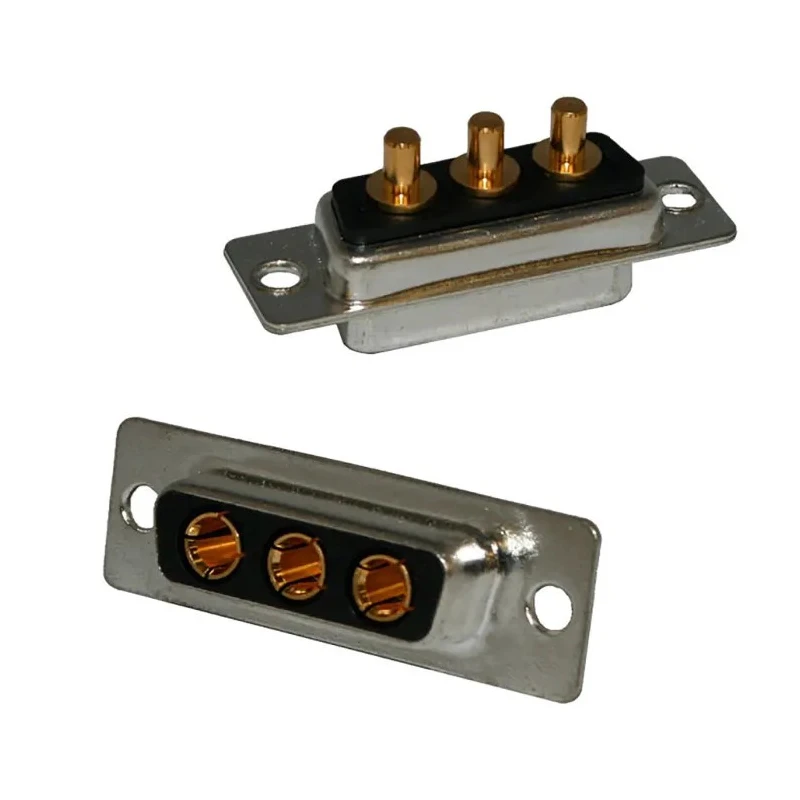

Norcomp 3 Way Straight 6.85 mm Pitch Through Hole D-Sub Connector Male 681M3W3103L001
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 1.0kV |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 40A |
| Model | 681M3W3103L001 |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | 681M |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Shell | Steel, Nickel plated |
| Pitch | 6.85mm |
| Insulator | Glass-Filled Thermoplastic, Black |
| Standards/Approvals | RoHS |
| Contact Plating | Gold Flash |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector Gender | Male |
| Signal Contacts | Machined Copper Alloy, Full Gold Flash |
Key Features
- Connector features 3 contacts designed for both signal and power applications.
- Current rating of up to 40A for robust power delivery.
- Constructed with steel nickel-plated shell for durability.
- Contact plating is gold flash to ensure excellent conductivity and corrosion resistance.
- Operates reliably within temperature range -55°C to 155°C.
- Designed for through hole mounting and solder termination.
- Insulator made from black glass-filled thermoplastic for enhanced strength.
- Connector orientation is straight with male contact gender.
Product Description
Norcomp 681M3W3103L001 is a 3 Way Straight 6.85 mm Pitch Through Hole D-Sub Connector Male, designed to combine signal, high current, and high voltage in a single robust connector. It supports a current of up to 40 amps and a voltage rating of 1.0 kV, enabling reliable performance in demanding electronic applications.
This connector is constructed with a durable steel nickel-plated shell and a black glass-filled thermoplastic insulator that enhances mechanical strength and stability. The contacts are precision-machined from copper alloy and finished with a full gold flash plating on both signal and power contacts, ensuring excellent electrical conductivity and corrosion resistance.
Its straight orientation and through hole mount type make it suitable for integration into printed circuit boards with solder termination, providing stable and lasting connections. The connector operates across a wide temperature range from -55°C to 155°C, making it suitable for industrial, manufacturing, and electronic component assembly environments.
Compliant with RoHS standards, the 681M3W3103L001 connector is environmentally safe and manufactured in Taiwan, Province Of China, reflecting quality production standards. Three contacts support combined signal and power transmissions.
Steel shell with nickel plating provides durable shielding and protection. Glass-filled thermoplastic insulator offers high mechanical strength. Gold flash contact plating ensures reliable conductivity and corrosion resistance.
Suitable for solder termination and through hole mounting on PCBs. Wide operating temperature range from -55°C to 155°C. Rated for a current of 40 A and voltage of 1.0 kV. Connector gender male and straight orientation facilitate versatile installations.
RoHS certified for environmental compliance. Ideal for electronic components, power connectors, and industrial applications. Explore the full range of Norcomp D-Sub Connectors on EnvMart for quality and reliability in your electronic component projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 40A, allowing for robust power delivery in various applications.
The voltage rating for this connector is 1.0 kV, making it suitable for high voltage applications.
It operates reliably within a temperature range of -55°C to 155°C, suitable for demanding environments.
The connector features a steel nickel-plated shell, a black glass-filled thermoplastic insulator, and machined copper alloy contacts with gold flash plating.
This model is designed for through hole mounting with solder termination, making it easy to integrate into printed circuit boards.
It has 3 contacts, designed to support both signal and power applications.
The Norcomp 681M3W3103L001 has a straight orientation, facilitating versatile installation options.
Yes, this connector is RoHS certified, ensuring it meets environmental safety standards.
The pitch size for this model is 6.85 mm, which is standard for D-Sub connectors.
It is ideal for electronic components, power connectors, and industrial applications due to its robust design and specifications.
This connector is manufactured in Taiwan, Province Of China, reflecting quality production standards.
The contacts are finished with gold flash plating, which ensures excellent conductivity and corrosion resistance.
