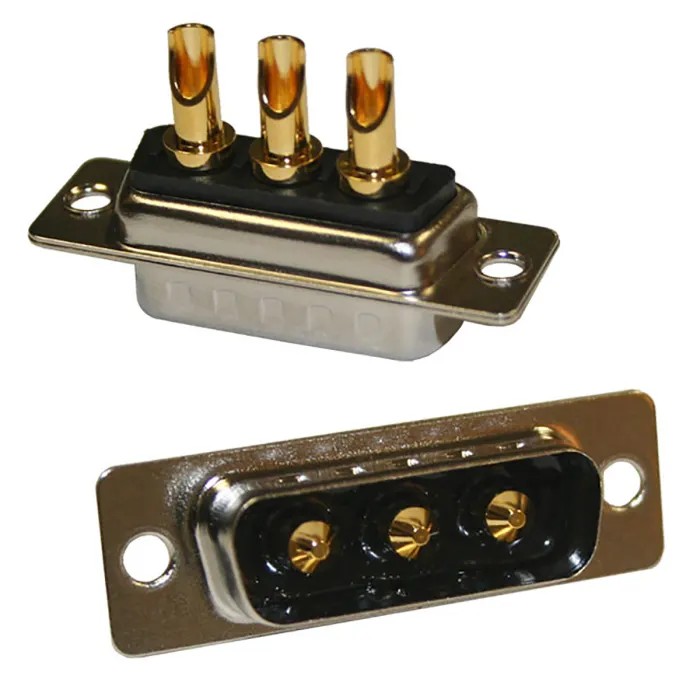

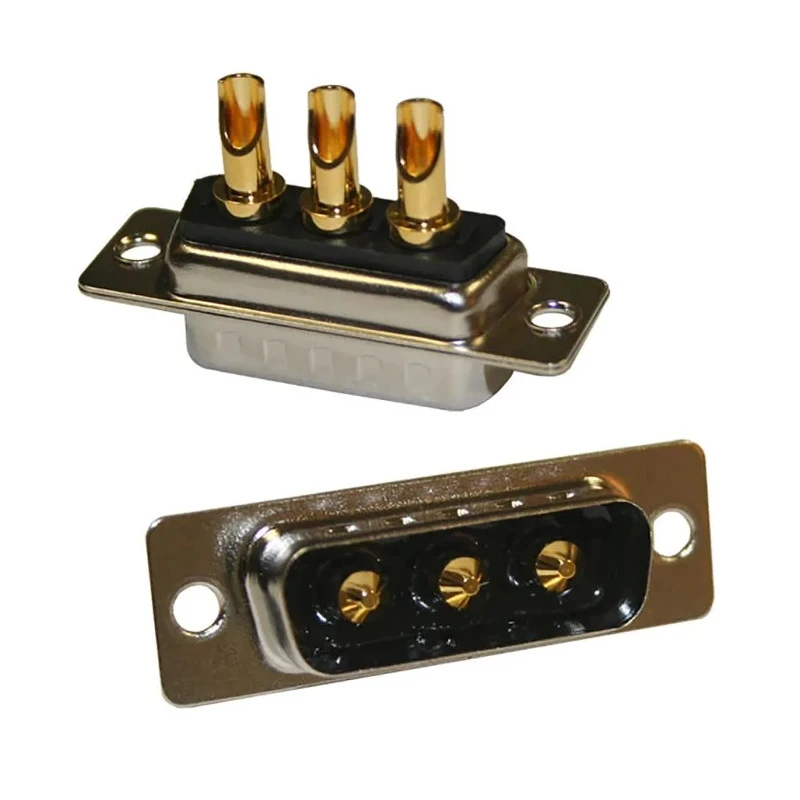

Norcomp 3 Way Straight 6.85 mm Pitch Panel Mount D-Sub Connector Male 40A 1.0kV 680S3W3103L401
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 1.0kV |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 40A |
| Model | 680S3W3103L401 |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | 680S |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Shell | Steel, Nickel plated |
| Pitch | 6.85mm |
| Insulator | Glass-Filled Thermoplastic, Black |
| Standards/Approvals | RoHS |
| Contact Plating | Gold Flash |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector Gender | Male |
| Signal Contacts | Machined Copper Alloy, Full Gold Flash |
Key Features
- Constructed with steel nickel-plated shell for durability and corrosion resistance.
- Glass-filled thermoplastic black insulator provides excellent electrical insulation.
- Signal contacts and power contacts made from machined copper alloy with full gold flash plating.
- Designed for panel mounting with male connector orientation and solder termination.
- Operates reliably within -55°C to 155°C temperature range.
- RoHS compliant ensuring environmentally safe manufacturing standards.
- Offers a 6.85 mm pitch for precise and secure pin alignment.
- Manufactured in the United States guaranteeing quality control.
Product Description
Norcomp 680S3W3103L401 3 Way Straight 6.85 mm Pitch Panel Mount D-Sub Connector Male is engineered to offer high current and voltage handling in a compact, reliable connector. It supports a maximum current of 40 amps and withstands up to 1.0kV voltage, making it suitable for demanding electrical and industrial applications.
The connector features a robust steel shell with nickel plating, ensuring mechanical strength and resistance to corrosion. The insulator is made of black glass-filled thermoplastic, providing excellent insulation and durability under harsh conditions.
Its contacts consist of machined copper alloy with gold flash plating, which guarantees low contact resistance and long-lasting performance. The connector is designed for panel mount installations with a straight orientation and utilizes solder termination for secure wiring.
The device is designed to operate in a temperature range from minus 55 degrees Celsius to 155 degrees Celsius, suitable for extreme environments. The component is RoHS compliant, reflecting adherence to environmental and health safety directives.
This D-Sub connector comes with a unique sealing mechanism that preserves the standard profile, ensuring easy drop-in replacements for existing POWER-D connectors. It is available in 12 industry-standard size and position options, including varying power and signal contact ratings for versatile application.
Constructed with steel, nickel-plated shell for enhanced durability. Glass-filled thermoplastic acts as a resilient, black insulator. Machined copper alloy contacts with full gold flash plating ensure superior conductivity.
Supports a current rating of 40A and voltage up to 1.0kV. Operates effectively between -55°C and 155°C. Designed for panel mounting with straight male connector orientation. Compliant with RoHS standards for environmental safety.
Made in the United States, reflecting high manufacturing standards. Ideal for industrial, electronic, and power connection applications. Compatible with multiple industry-standard sizes and provides versatile connectivity solutions.
Explore comprehensive connectivity solutions and related D-Sub Connectors at EnvMart for industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 40 amps.
It can withstand up to 1.0kV voltage.
It operates effectively within a temperature range of -55°C to 155°C.
The shell is made of steel with nickel plating, while the insulator is glass-filled thermoplastic, and the contacts are machined copper alloy with gold flash plating.
It is designed for panel mounting with a straight orientation.
This model utilizes solder termination for secure wiring.
It features a total of 3 contacts.
Yes, it is RoHS compliant, ensuring adherence to environmental and health safety standards.
The connector offers a pitch of 6.85 mm for precise pin alignment.
It is manufactured in the United States, reflecting high manufacturing standards.
It is suitable for demanding electrical and industrial applications due to its high current and voltage handling capabilities.
The contacts are made from machined copper alloy with full gold flash plating, ensuring low contact resistance.
