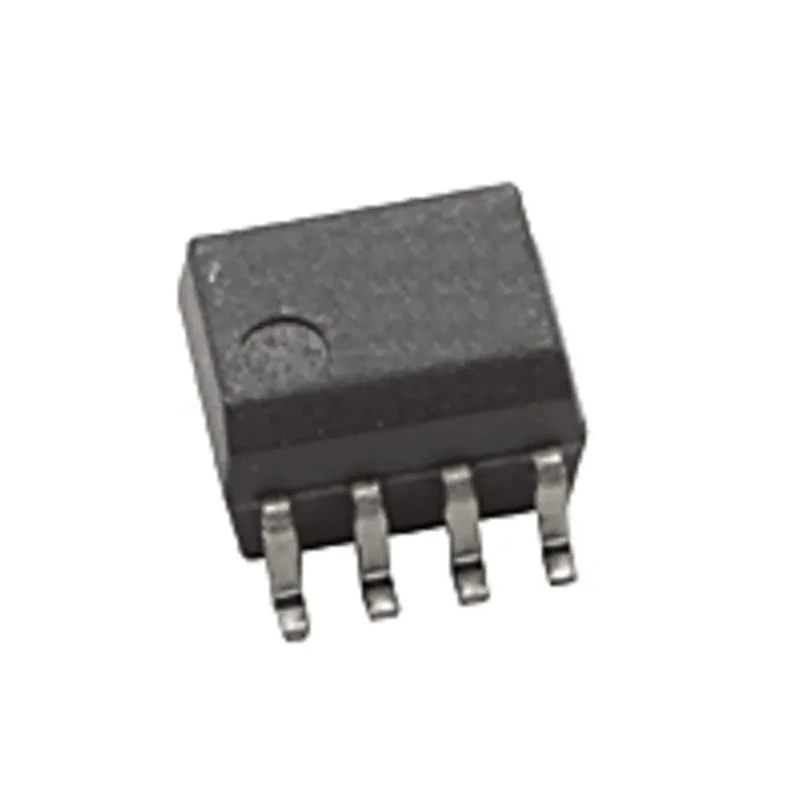

Broadcom Optocoupler Surface Mount 8-Pin SO Package High-Speed 10MBd HCPL-0611-500E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-0611-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HCPL |
| Maximum Operating Temperature | 80°C |
| Package Type | SO |
| Minimum Operating Temperature | -45°C |
| Maximum input current | 20mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, CSA |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Typical Rise Time | 24ns |
| Typical Fall Time | 10ns |
| Automotive Standard | AEC-Q100 |
| Low Input Current Capability | 5 mA |
| Guaranteed ac and dc Performance over Temperature | -40 degrees C to 85 degrees C |
Key Features
- Combines GaAsP LED and integrated high gain photodetector in one device.
- Features an enable input allowing detection strobing for output control.
- Open collector Schottky-clamped transistor output for efficient switching.
- Rated for 3750 Vrms isolation voltage ensuring high electrical isolation.
- Typical rise time is 24 ns and fall time is 10 ns for fast switching.
- Compatible with LSTTL and TTL logic levels providing versatile interfacing.
- Operates across a wide temperature range from -45°C to 80°C.
- Compliant with UL, CSA standards and automotive AEC-Q100 certification.
Product Description
Broadcom HCPL-0611-500E optocoupler is a surface mount electronic component designed for signal isolation and switching in industrial, automotive, and electronic applications. This device integrates a GaAsP light emitting diode with a high gain photodetector, enabling optical coupling with high-speed operation up to 10 MBd. It features an enable input that allows strobed operation of the photodetector, and provides an open collector output transistor with Schottky clamp for improved switching performance.
The optocoupler achieves a guaranteed common mode transient immunity of 10 kV/µs, ensuring robust operation in noisy environments. It provides an isolation voltage of 3750 Vrms, allowing safe electrical separation between input and output circuits. The device supports a maximum forward input voltage of 1.8 V and an input current capability of 20 mA with low input current operation down to 5 mA.
Operating temperature range from -45°C to 80°C guarantees reliability across harsh industrial and automotive conditions. The component is compliant with recognized safety standards UL and CSA, and meets the AEC-Q100 automotive quality standard. Its compact 8-pin SO package facilitates easy surface mounting and automated tape & reel packaging supports efficient board assembly.
This optocoupler is ideal for industrial controls, signal interfacing, telecommunications, automotive electronics, and medical instrumentation where high voltage isolation and fast switching are required.
Combines GaAsP LED and integrated high gain detector in one device. Enable input for output strobing functionality. Open collector Schottky-clamped transistor output. Guaranteed 10 kV/µs common mode transient immunity. Isolation voltage rating of 3750 Vrms.
Typical rise and fall times of 24 ns and 10 ns respectively. Input current range from 5 mA to 20 mA. Wide operating temperature from -45°C to 80°C. UL, CSA approvals and automotive AEC-Q100 certification. Tape & reel packaging for automated manufacturing.
