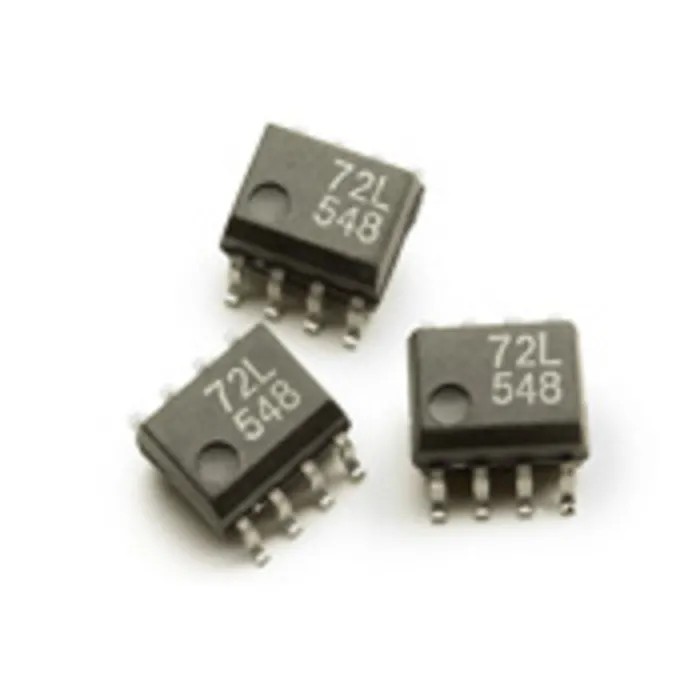

Broadcom DC Input Optocoupler Surface Mount 8-Pin SO Package ACPL-072L-500E

Free Delivery in India | Lowest Global Shipping Charges

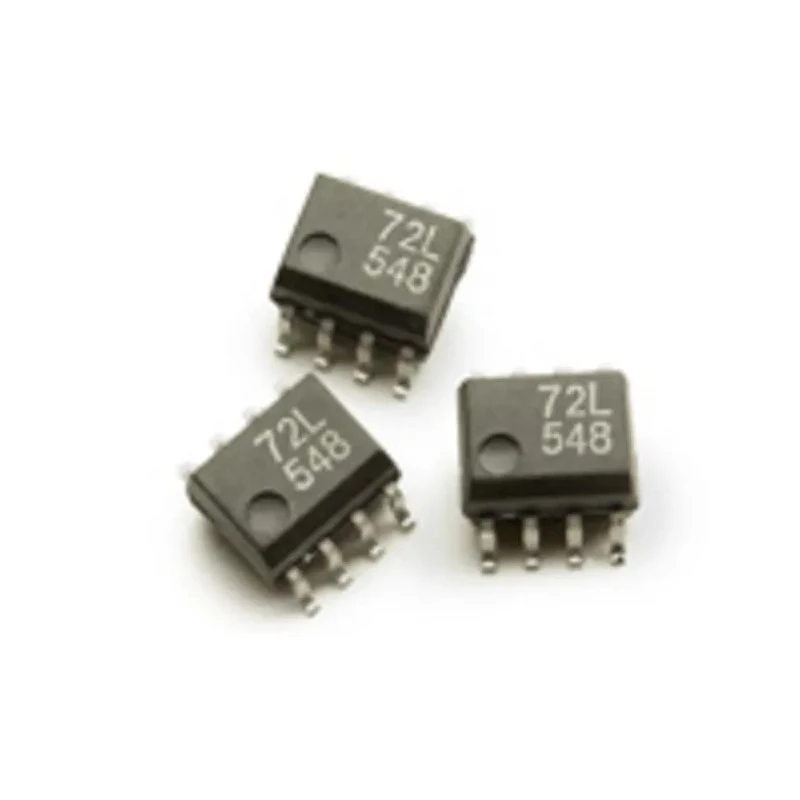

Broadcom DC Input Optocoupler Surface Mount 8-Pin SO Package ACPL-072L-500E

Name: Broadcom DC Input Optocoupler Surface Mount 8-Pin SO Package ACPL-072L-500E
Brand: Broadcom
SKU: 96366
Price: 3.63 USD
Availability: InStock



Category Optocoupler Brand Broadcom Condition New

Specifications

Country of Origin	Philippines
Brand	Broadcom
Model	ACPL-072L-500E
Packaging	Tape & Reel
Mount Type	Surface
Series	ACPL
Maximum Operating Temperature	105°C
Package Type	SO
Minimum Operating Temperature	-40°C
Maximum input current	15mA
Number Of Channels	1
Standards/Approvals	IEC/EN/DIN EN 60747-5-2, UL, RoHS
Maximum Forward Voltage	1.85V
Number of Pins	8
Input Current Type	DC
Typical Rise Time	0.009μs
Typical Fall Time	0.008μs
Isolation Voltage	7.5kV

Key Features

Features a maximum forward voltage of 1.85 volts.
Supports a high data transfer rate up to 25 MBd for fast communication.
Input current maximum rating of 15 mA ensures efficient LED driving.
Isolation voltage of 7.5 kV provides robust electrical isolation for safety and signal integrity.
Operates reliably over a wide temperature range from -40°C to 105°C.
Complies with IEC/EN/DIN EN 60747-5-2, UL safety standards, and is RoHS compliant.
Includes integrated CMOS LED driver IC, LED, and detector IC for optimized performance.
Ideal for use in industrial, electronic control, and communication systems requiring galvanic isolation.

Product Description

Broadcom ACPL-072L-500E is a high-performance DC input optocoupler designed for digital signal isolation applications. This device utilizes advanced CMOS IC technology to achieve a minimum data rate of 25 MBd and a maximum pulse width distortion of 6 ns. It integrates a CMOS LED driver IC, a high-speed LED, and a CMOS detector IC inside a compact surface mount 8-pin small outline (SO) package.

The optocoupler features a maximum forward voltage of 1.85 V at the LED input and can handle currents up to 15 mA, suitable for efficient LED drive while maintaining low power consumption. The device offers reliable galvanic isolation with an isolation voltage rating of 7.5 kV and demonstrates high immunity to common mode noise with a minimum of 10 kV/μs common mode rejection.

This product operates effectively across a wide temperature range from -40°C to 105°C, ensuring durability in harsh environments. The output is a logic signal compatible with both 3.3 V and 5 V CMOS logic families, which facilitates seamless integration into digital circuits.

Compliant with international standards IEC/EN/DIN EN 60747-5-2, UL, and RoHS directives, the ACPL-072L-500E is suitable for industrial applications including power electronics, microprocessor input isolation, and communication interfaces where high-speed signal transmission and noise immunity are critical.

High-speed data rate up to 25 MBd. Low pulse width distortion of 6 ns maximum. Wide temperature operation from -40°C to 105°C. Galvanic isolation voltage rating of 7.5 kV. Logic output compatible with 3.3 V and 5 V CMOS systems.

Compact surface mount 8-pin SO package. Tape and reel packaging suitable for automated manufacturing. Complies with IEC/EN/DIN EN 60747-5-2, UL, RoHS standards.

Broadcom ensures high manufacturing standards with production based in the Philippines. This optocoupler is ideal for use in electronic components, power and connector systems, industrial automation, and communication equipment requiring secure electrical isolation and noise reduction.
