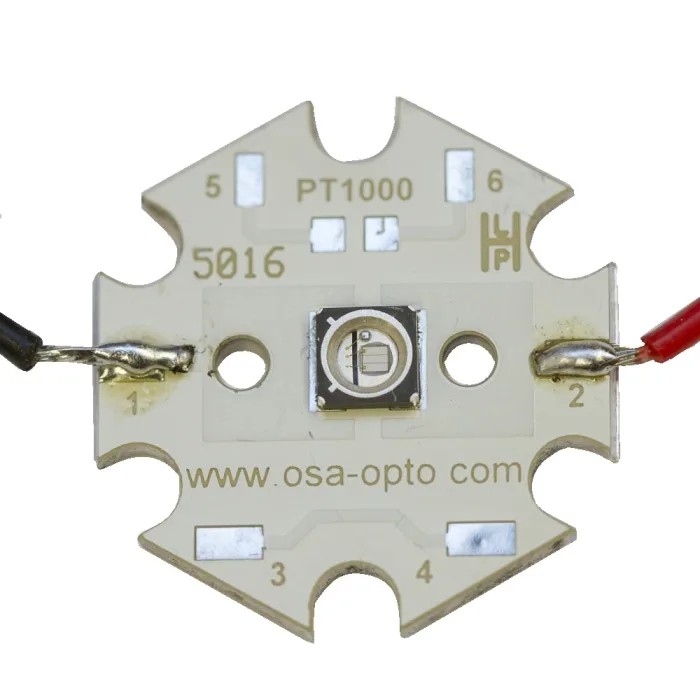

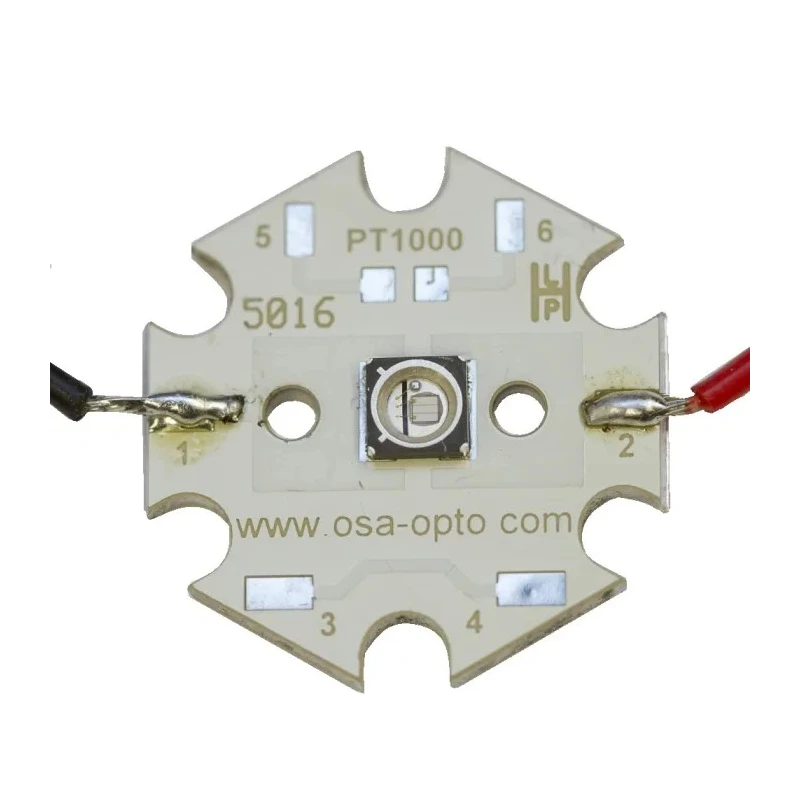

EPIGAP OSA Photonics 740 nm IR LED 1515 Surface Package OCI-440-IT740-Star
Specifications
| Country of Origin | India |
|---|---|
| Size | 3.8mm x 3.8mm x 0.9mm |
| Brand | EPIGAP OSA Photonics |
| Model | OCI-440-IT740-Star |
| Technology | GaP, AlInGaP, GaAlAs and InGaN |
| Mount Type | Surface |
| Series | OCI-440 |
| Number Of Leds | 1 |
| Package Type | 1515 |
| Number of Pins | 2 |
| Lens Shape | Round |
| Maximum Supply Voltage | 2.6V |
| Peak Wavelength | 740nm |
| LED Material | GaAlAs, GaP, InGaN, AlInGaP |
| Radiant Intensity | 50mW/sr |
| view angle | 120° |
| soldering pads | silver plated |
| substrate | AlN Ceramic |
Key Features
- The LED features a round lens shape suitable for high power applications.
- The package size is 3.8 mm x 3.8 mm x 0.9 mm with a 120° viewing angle.
- Made with GaAlAs, GaP, InGaN, and AlInGaP LED materials for efficient infrared emission.
- The device is designed with silver plated soldering pads for reliable mounting.
- Maximum supply voltage is 2.6 V and the LED has 2 pins and 1 LED per package.
Product Description
EPIGAP OSA Photonics OCI-440-IT740-Star is a high-performance infrared LED designed for industrial, electronic, and optoelectronic applications. This device emits infrared light at a peak wavelength of 740 nm and is packaged in a compact 1515 surface mount package measuring 3.8 mm by 3.8 mm with a height of 0.9 mm. It is equipped with a round lens that provides a wide viewing angle of 120°, making it suitable for various sensing and illumination tasks.
The LED is constructed using advanced semiconductor materials including Gallium Aluminum Arsenide (GaAlAs), Gallium Phosphide (GaP), Indium Gallium Nitride (InGaN), and Aluminum Indium Gallium Phosphide (AlInGaP). These enable enhanced radiant intensity of 50 mW per steradian, supporting high power applications with efficient energy use. Its substrate made of Aluminum Nitride (AlN) ceramic ensures excellent thermal management and durability.
Designed as a surface mount device (SMD), it features silver plated soldering pads compatible with all standard SMT assembly methods, ensuring ease of integration onto printed circuit boards. The device supports a maximum supply voltage of 2.6 volts and has two connection pins for electrical interfacing.
This IR LED is ideal for use in industrial automation, remote control systems, electronic sensors, and other optoelectronic devices. It offers reliable performance with no automotive standard certification, focusing on general industrial use. Its compact dimensions and robust materials make it versatile for PCB-mounted infrared light emitting applications.
The LED package size is 3.8 mm x 3.8 mm x 0.9 mm, ensuring compact integration. Radiant intensity reaches 50 mW/sr, providing strong infrared emission. Silver plated soldering pads enhance soldering reliability and electrical contact.
Round lens shape offers a broad viewing angle of 120 degrees for wide illumination. Maximum supply voltage of 2.6 V allows efficient low-voltage operation.
Choose EPIGAP OSA Photonics for precise, high-quality infrared LED components suitable for electronic component manufacturing, optoelectronics development, and surface mount technology assembly processes. Browse the Infrared LED category at EnvMart for more advanced semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared LED is 740 nm.
The maximum supply voltage for this model is 2.6 V.
The radiant intensity of the OCI-440-IT740-Star is 50 mW per steradian.
The package dimensions are 3.8 mm x 3.8 mm x 0.9 mm.
This infrared LED uses surface mounting technology (SMD).
This LED has two connection pins.
The LED is constructed from GaAlAs, GaP, InGaN, and AlInGaP materials.
The viewing angle of this LED is 120°.
The lens shape of this infrared LED is round.
The substrate used for this LED is Aluminum Nitride (AlN) ceramic.
This model is suitable for industrial automation, remote control systems, and electronic sensors.
This LED features silver plated soldering pads for reliable mounting.
