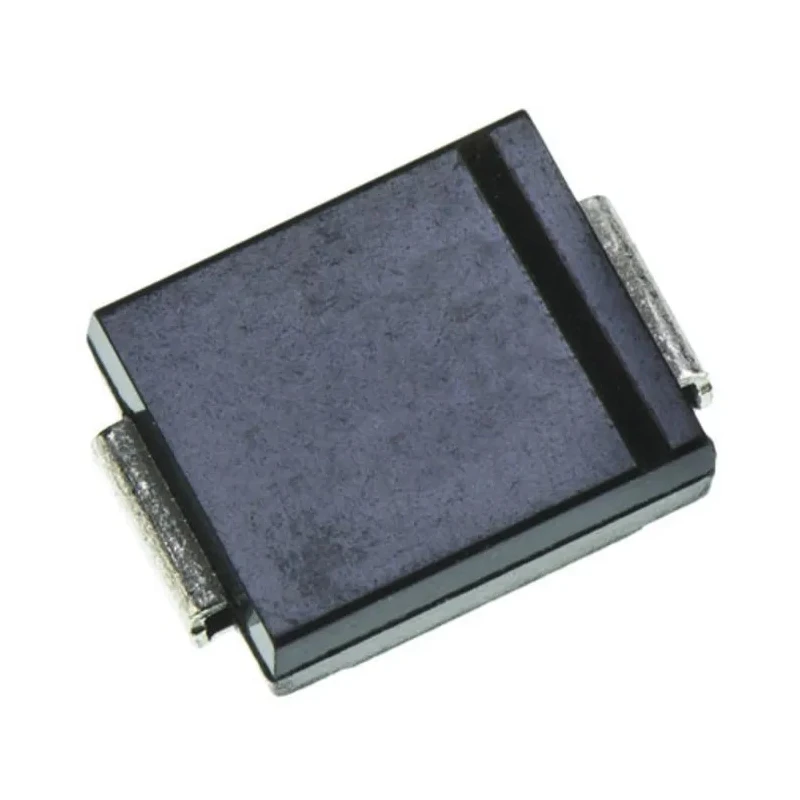

Littelfuse 1-Element Bi-Directional TVS Diode, 5000W, 2-Pin DO-214AB 5.0SMDJ15CA

Littelfuse 5.0SMDJ15CA is a high-quality 1-element bi-directional TVS diode designed for robust protection of sensitive electronic circuits against transient voltage spikes such as those induced by lightning strikes or electrostatic discharge events.

This device comes in a DO-214AB low profile surface mount package featuring 2 pins, enabling compact board layouts and optimized use of space in electronic assemblies.

It boasts superior electrical characteristics including a peak pulse power dissipation capability of 5000 watts based on a 10x1000µs waveform with very fast response times typically less than 1.0 picoseconds, ensuring rapid suppression of voltage surges.

The diode is engineered to withstand operating temperatures from -65°C up to 150°C, supporting use in demanding industrial, electronic, and communications equipment under varying environmental conditions.

The 5.0SMDJ15CA model features a maximum reverse stand-off voltage of 15 volts, breakdown voltage minimum of 16.7 volts, and a clamping voltage of 24.4 volts. It also provides a peak pulse current of 205 amperes and maintains a low reverse leakage current below 100 microamps, ensuring minimal impact during normal operation.

Designed with a glass passivated chip junction and matte tin lead-free plating, this TVS diode offers durability, reliability, and compliance with lead-free manufacturing standards. It includes built-in strain relief to enhance mechanical robustness during soldering and operation.

The diode features a single element with bi-directional configuration for symmetrical voltage protection. It has a low-profile DO-214AB surface mount package with 2 pins. The device operates within a temperature range of -65°C to 150°C for high reliability.

Peak pulse power dissipation capability is 5000 watts at a 10x1000µs waveform. It provides a maximum reverse stand-off voltage of 15 volts and a clamping voltage of 24.4 volts. Offers fast response time typically less than 1.0 picoseconds from 0V to breakdown voltage minimum.

Features glass passivated chip junction and matte tin lead-free plating for durability and environmental compliance. Maximum peak pulse current rating is 205 amperes, with low reverse leakage current of 100 microamps. Suitable for surface mount applications optimizing board space in industrial and electronic devices.

This Littelfuse TVS diode is ideal for industrial, telecommunications, automotive, and consumer electronics applications where transient voltage suppression is critical to protect electronic components and ensure system reliability.

Explore more Littelfuse semiconductor devices and advanced TVS Diodes at EnvMart for high-quality voltage transient protection solutions.
