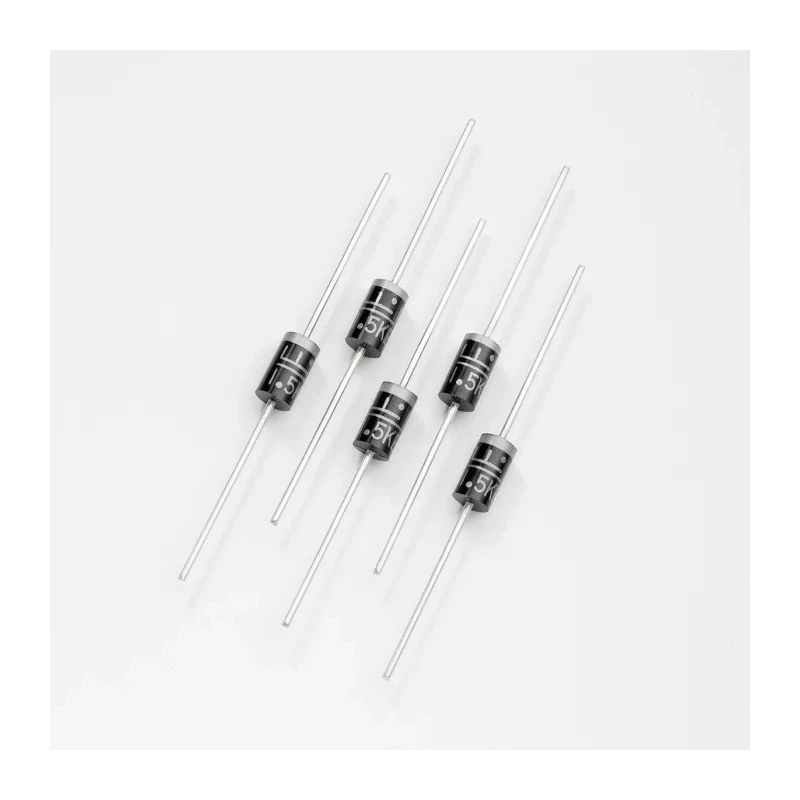

Littelfuse 1-Element Uni-Directional TVS Diode 1.5 kW Peak Pulse Power, 2-Pin DO-201 Package 1.5KE6.8A
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Littelfuse |
| Length | 9.5mm |
| Model | 1.5KE6.8A |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 10.5V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.45V |
| Maximum Reverse Stand-off Voltage Vwm | 5.8V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 144.8A |
| Maximum Reverse Leakage Current | 1mA |
| Fast response time | typically less than 1.0ps from 0 Volts to BV min |
| 1500W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles) | 0.01% |
| VBR @ TJ VBR@25°C x (1+αT x (TJ - 25)) (αT | Temperature Coefficient, typical value is 0.1%) |
Key Features
- Designed for sensitive electronic equipment protection against voltage transients.
- Glass passivated chip junction ensures fast response, typically less than 1.0 ps.
- Peak pulse power dissipation of 1.5 kW at 10/1000 μs waveform.
- Maximum operating temperature up to 175°C for high reliability.
- Low incremental surge resistance with clamping voltage of 10.5 V.
- Plastic DO-201 package with matte tin lead-free plating and halogen-free materials.
- High temperature soldering guaranteed at 260°C for 40 seconds.
- Offers ESD protection and low maximum reverse leakage current of 1 mA.
Product Description
Littelfuse 1.5KE6.8A Uni-Directional TVS Diode delivers effective transient voltage protection with a peak pulse power dissipation of 1.5 kW. Encapsulated in a 2-pin DO-201 plastic package, this diode is engineered to safeguard sensitive electronic devices from voltage surges caused by lightning and other transient voltage events.
The device features a single glass passivated chip junction allowing a rapid response time typically under 1.0 ps, ensuring swift clamping action to maintain circuit integrity. The diode exhibits a minimum breakdown voltage (Vbr) of 6.45 V and a clamping voltage of 10.5 V, supporting a maximum reverse standby voltage of 5.8 V.
Designed for long-term reliability, it operates across a temperature range from -55°C to a maximum of 175°C and supports high temperature reflow soldering at 260°C for 40 seconds. The plastic package is matte tin lead-free plated and halogen-free, complying with environmental and industry standards.
This TVS diode supports a peak pulse current of 144.8 A with a duty cycle of 0.01% under the 10/1000 μs waveform. Its robust design includes low incremental surge resistance and low maximum reverse leakage current of 1 mA, contributing to stable, durable performance in harsh operational environments.
Typical applications include industrial electronics, power supplies, communication equipment, automotive circuits, and other systems requiring stringent transient voltage protection. Its uni-directional configuration ensures optimal performance in standard protection schemes.
Protection against transient voltage spikes and ESD events. Compact through-hole mount design for easy PCB integration. Glass passivated junction providing stability and longevity. Pb-free and halogen-free construction for environmental compliance.
Suitable for industrial, commercial, and automotive electronics use. Explore our extensive range of TVS Diodes for all electronic and power protection needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse 1.5KE6.8A TVS diode has a peak pulse power dissipation of 1.5 kW at a 10/1000 μs waveform.
The clamping voltage of this diode is 10.5 V.
This model can operate at a maximum temperature of 175°C.
The minimum breakdown voltage (Vbr) for this diode is 6.45 V.
The maximum reverse stand-off voltage (Vwm) for this unit is 5.8 V.
The diode can handle a maximum peak pulse current of 144.8 A with a duty cycle of 0.01%.
The Littelfuse 1.5KE6.8A has a diameter of 5.3 mm and a length of 9.5 mm.
This model is encapsulated in a 2-pin DO-201 plastic package.
It has a fast response time, typically less than 1.0 ps from 0 Volts to the minimum breakdown voltage.
This unit features a through-hole mount design for easy PCB integration.
The diode is made with matte tin lead-free plating and halogen-free materials, complying with environmental standards.
This TVS diode is suitable for applications in industrial electronics, power supplies, communication equipment, and automotive circuits requiring transient voltage protection.
