EPIC Heavy Duty Power Connector Insert 14A H-A Series Male 10 Contacts 600V 10440100

Free Delivery in India | Lowest Global Shipping Charges

EPIC Heavy Duty Power Connector Insert 14A H-A Series Male 10 Contacts 600V 10440100

Name: EPIC Heavy Duty Power Connector Insert 14A H-A Series Male 10 Contacts 600V 10440100
Brand: EPIC
SKU: 95790
Price: 13.45 USD
Availability: InStock



Category Heavy Duty Power Connector Insert Brand EPIC Condition New

Specifications

Country of Origin	Germany
Voltage	600V
Brand	EPIC
Orientation	Straight
Model	10440100
Mount Type	Cable
Contact Material	Copper Alloy
Current Rating	14A
Series	H-A
Sub Type	Connector Insert
Number of Rows	2
For Use With	Heavy Duty Power Connector
Pole Format	10
Contact Plating	Silver
Number of Contacts	10
Connector Gender	Male
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	2.5mm²

Key Features

This connector is part of the H-A series with a current rating of 14A.
It features a cable mount type and supports a voltage of up to 600V.
The connector insert is male with 10 contacts arranged in 2 rows.
Contact material is copper alloy with silver plating ensuring reliable connectivity.
Suitable for industrial and electronic applications requiring durable heavy duty connectors.
The orientation of the connector is straight for easy cable routing.
Maximum wire size supported is 2.5 mm² and minimum wire size is 0.5 mm².
Manufactured in Germany ensuring high quality and precision.

Product Description

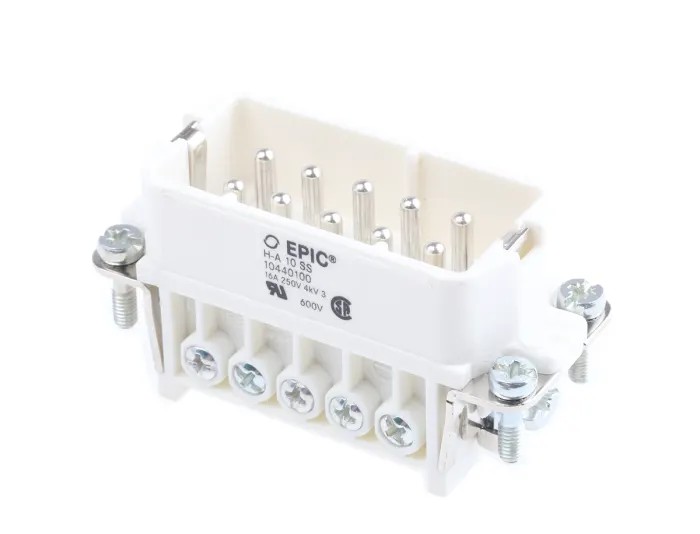

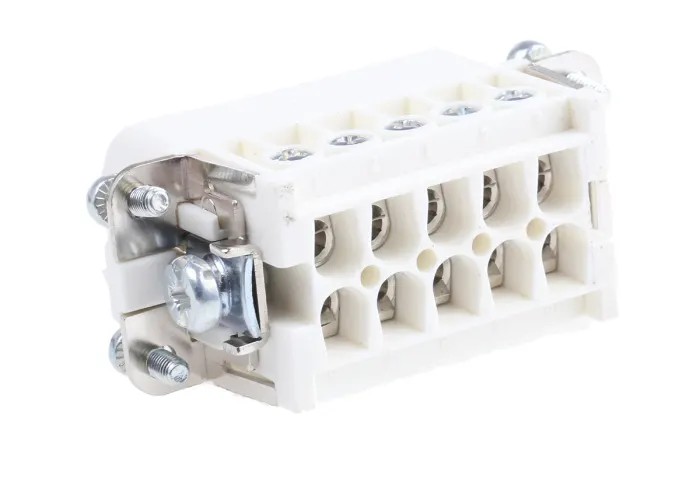

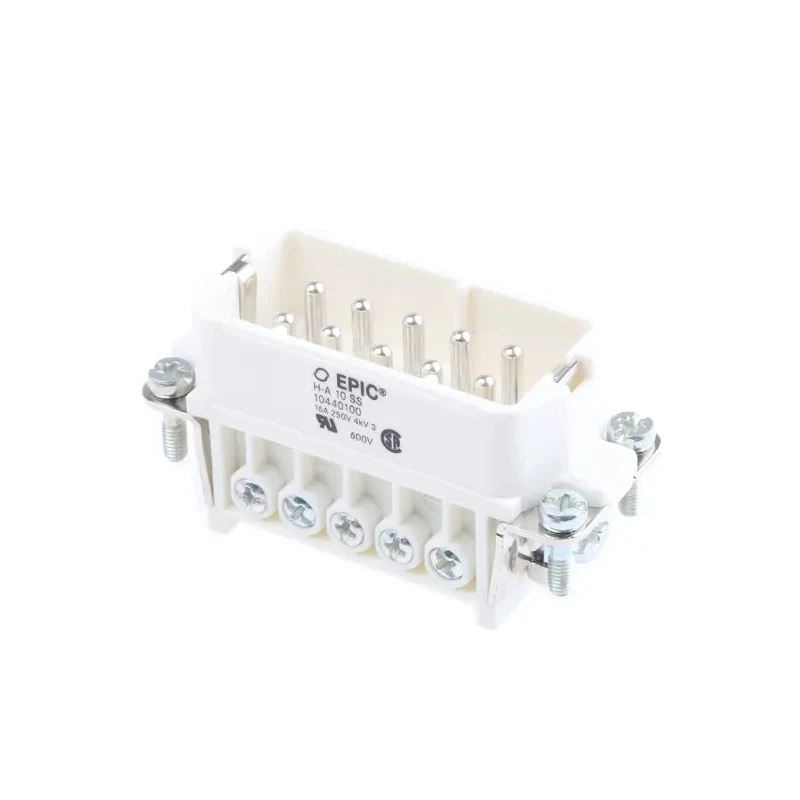

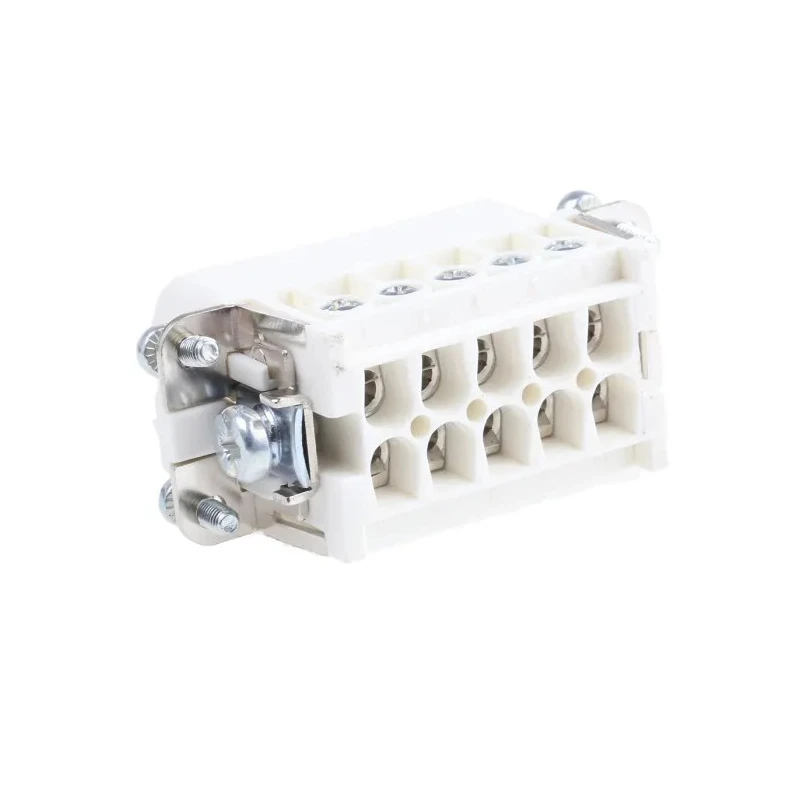

EPIC 10440100 Heavy Duty Power Connector Insert is a high-quality male connector designed for heavy duty power applications. Rated at 14A and supporting voltage up to 600V, this H-A series connector ensures dependable electrical connections in industrial, electronic, and manufacturing environments.

The connector features 10 contacts arranged in 2 rows, made from copper alloy with hard silver plating for enhanced conductivity and corrosion resistance. It uses screw termination inserts which accept cables up to 2.5 mm², with wire protection leaves for safe installation. A separate earth terminal is provided on each insert for enhanced safety.

Its cable mount type and straight orientation facilitate easy cable routing and mounting. The EPIC H-A Inserts are compatible with all H-A series hoods and bases, allowing flexible assembly options with interchangeable plug and socket inserts for fixed and free cable mounting arrangements.

This series supports protection ratings up to IP54 and IP65 using compression glands, ensuring reliable operation in harsh industrial environments. Despite its compact size, it is also rated for 250Vac operation in industrial group C applications.

Designed and manufactured in Germany, this connector insert meets strict quality standards for durability and performance. It is ideal for industrial, electrical, manufacturing, and heavy machinery power connections requiring reliable and robust connectors.

This product offers screw terminals with wire protection leaves accepting cables up to 2.5 mm². Interchangeable plug and socket inserts allow flexible assembly options. Separate earth connection provided on all inserts ensures safety.

Compact size yet rated for demanding industrial applications. Compatible with H-A series hoods or bases for modular connector assembly. Explore more heavy duty power connector solutions like this in the Electronics & Electricals category at EnvMart.
