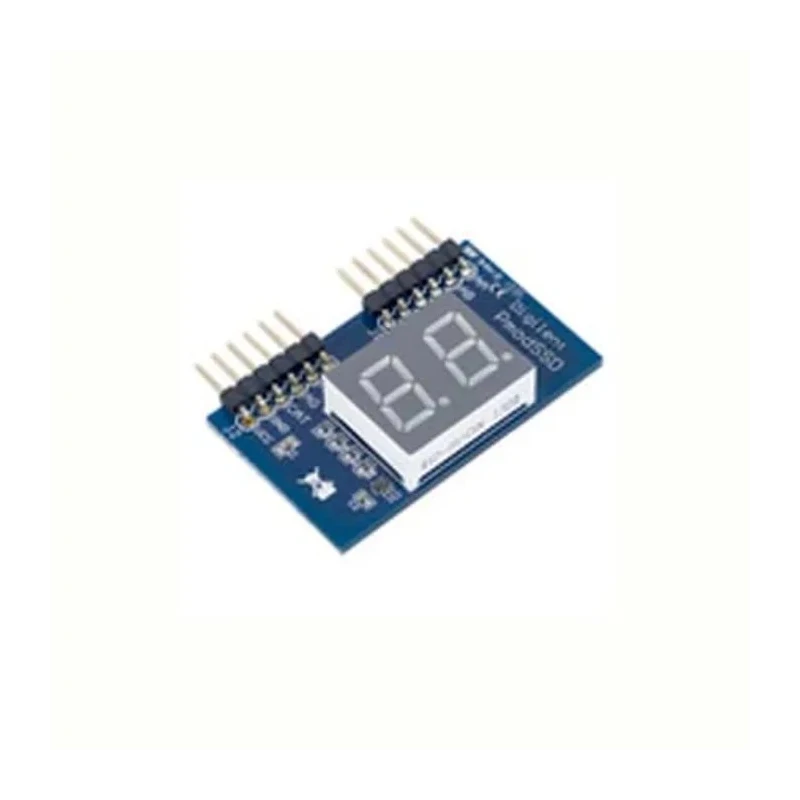

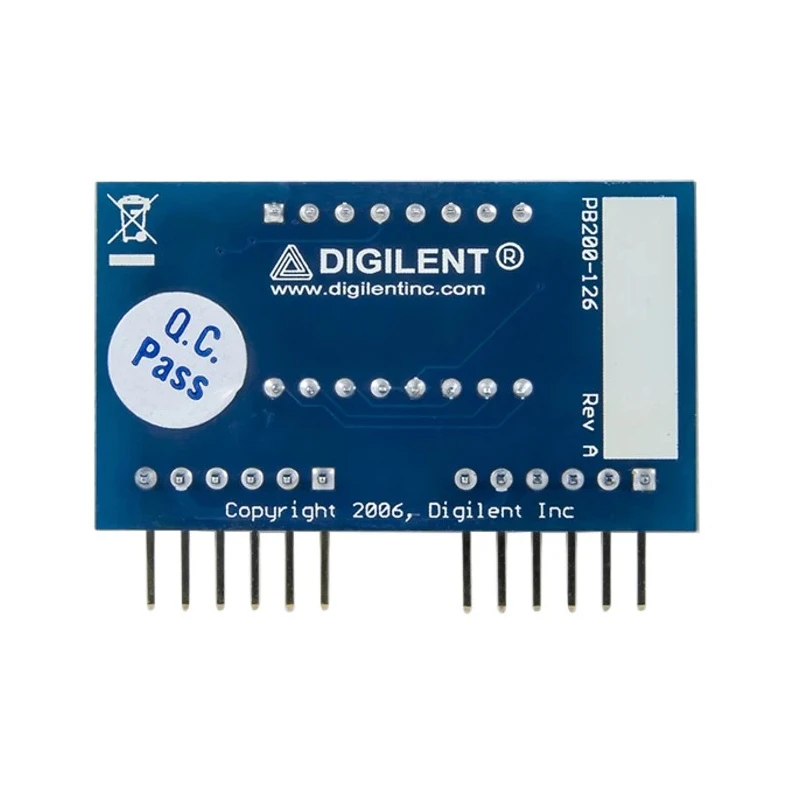

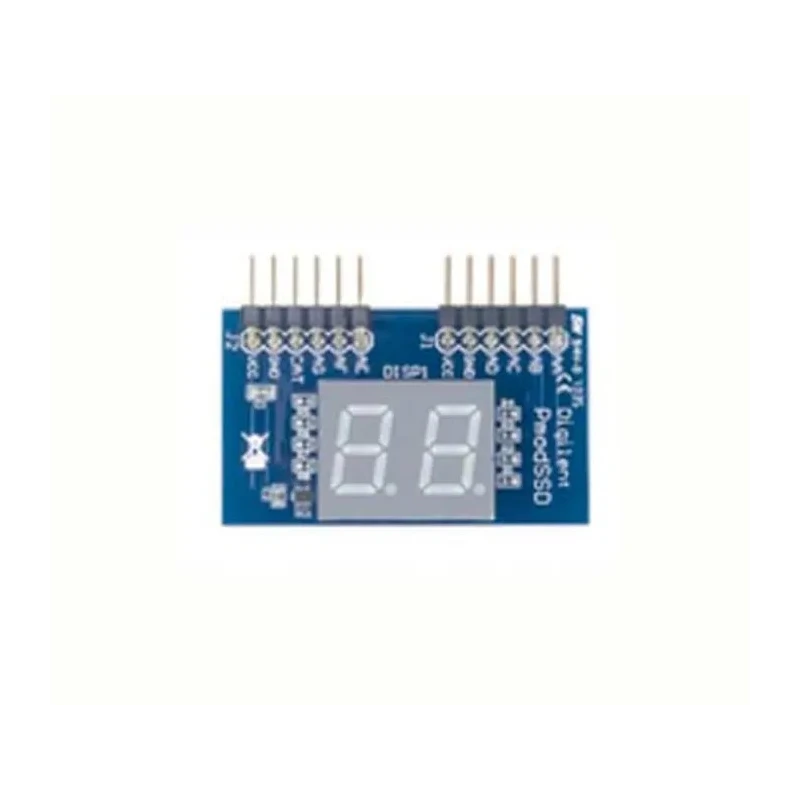

Digilent Pmod SSD 7 Segment Display Module with Two 6-pin Pmod GPIO Connectors 410-126
Specifications
| Country of Origin | India |
|---|---|
| Brand | Digilent |
| Model | 410-126 |
| Display Technology | 7 Segment Display |
| Interface Type | GPIO |
| Standards/Approvals | RoHS |
| Kit Classification | Display Module |
| Featured Device | Two 6-pin Pmod connectors with GPIO interfaces |
| Kit Name | Pmod SSD |
Key Features
- Features a two-digit high brightness seven-segment display.
- Operates with GPIO interface through two 6-pin Pmod connectors.
- Utilizes common cathode configuration for easy integration.
- Small PCB size of 2.5 cm x 4.3 cm suitable for compact designs.
- Supports toggling digits at 50 Hz for persistence-of-vision effect.
- Complies with Digilent Pmod Interface Specification Type 1.
- Ideal for counters, timers, and numeric display applications.
Product Description
Digilent 410-126 Pmod SSD 7 Segment Display Module features a two-digit seven-segment display designed for industrial and development applications. This high brightness display offers a clear numeric presentation with a compact PCB board measuring only 1.0 by 1.7 inches (2.5 cm by 4.3 cm), enabling flexible integration into various electronic projects and instruments.
The module is equipped with two 6-pin Pmod connectors employing GPIO interface signals, facilitating easy connection to microcontrollers and digital systems. Users can toggle which digit is active at a rate above 50 Hz, creating a persistence-of-vision effect to simulate simultaneous illumination of both digits without additional hardware complexity.
Configured in a common cathode setup, this display module simplifies wiring and control logic designs. It is compliant with Digilent's Pmod Interface Specification Type 1, ensuring compatibility with a broad range of Digilent development tools and systems.
This Pmod SSD module is ideal for applications such as digital counters, timers, numeric readouts, and learning or experimentation platforms in industrial automation, educational, and embedded system development environments.
Features a two-digit high brightness seven-segment display. Operates with GPIO interface through two 6-pin Pmod connectors. Utilizes common cathode configuration for easy integration. Small PCB size of 2.5 cm x 4.3 cm suitable for compact designs.
Supports toggling digits at 50 Hz for persistence-of-vision effect. Complies with Digilent Pmod Interface Specification Type 1. Ideal for counters, timers, and numeric display applications. Explore more from the Display Module category on EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This module features a 7 Segment Display technology, providing a clear numeric presentation.
The module has a compact PCB size of 2.5 cm x 4.3 cm (1.0 by 1.7 inches), making it suitable for space-constrained designs.
It operates with a GPIO interface through two 6-pin Pmod connectors, facilitating easy connection to microcontrollers and digital systems.
The module supports toggling digits at a rate above 50 Hz, creating a persistence-of-vision effect to simulate simultaneous illumination of both digits.
It utilizes a common cathode configuration, simplifying wiring and control logic designs for integration.
The module complies with RoHS standards and Digilent's Pmod Interface Specification Type 1, ensuring compatibility with a range of systems.
It is ideal for applications such as digital counters, timers, numeric readouts, and educational experimentation platforms.
The brand is Digilent, and the model number is 410-126.
The country of origin for this module is India.
This kit is classified as a Display Module, specifically designed for use in various electronic projects.
It features two 6-pin Pmod connectors with GPIO interfaces, allowing for straightforward integration into projects.
Yes, it is suitable for educational environments, particularly for learning and experimentation in embedded system development.
