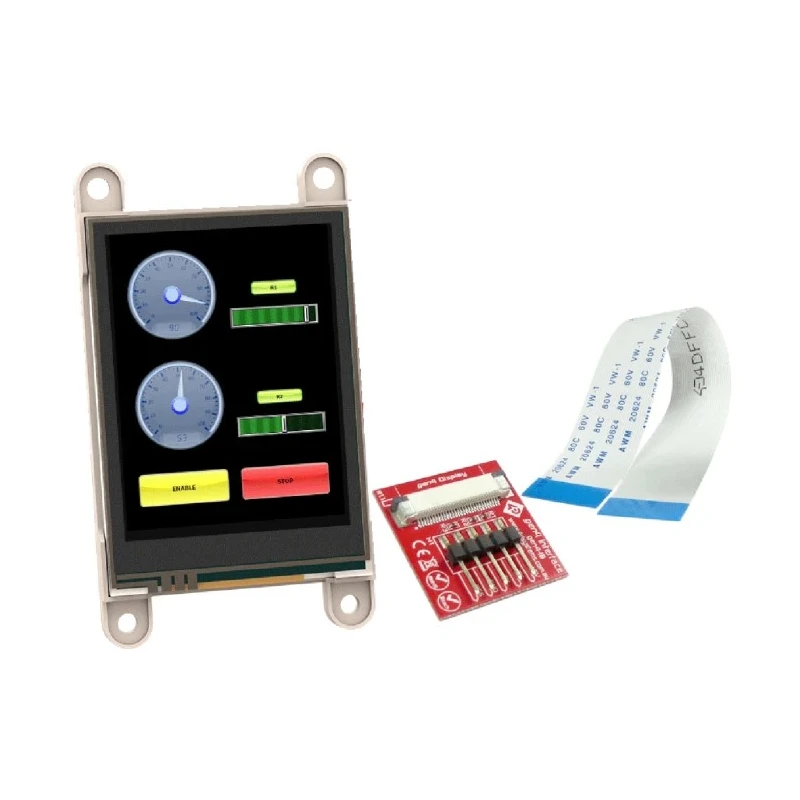

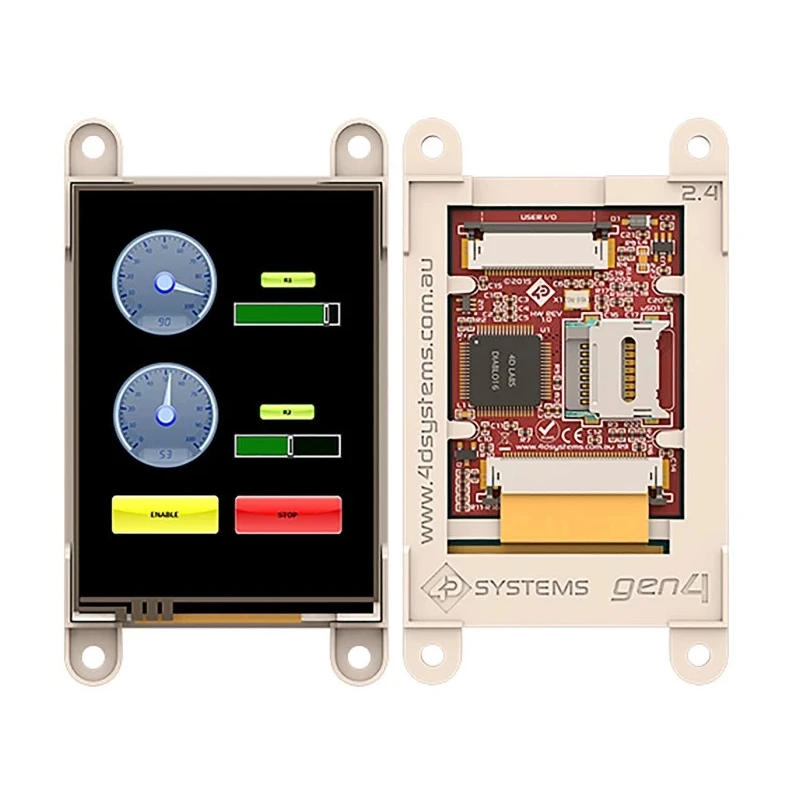

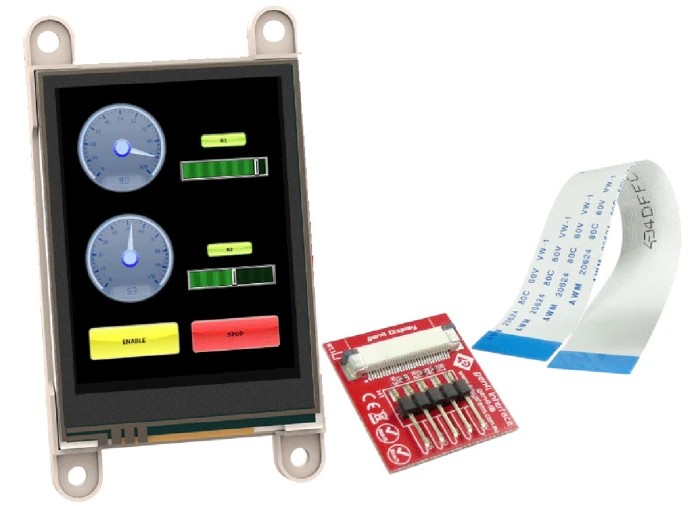

4D Systems LCD Colour Display Touch Screen 60.96mm, 240 x 320 Pixel, Serial Interface, Resistive Touch gen4-uLCD-24DT
Specifications
| Country of Origin | India |
|---|---|
| Display Type | LCD |
| Brand | 4D Systems |
| Current | 160mA |
| Height | 7.2mm |
| Model | gen4-uLCD-24DT |
| Depth | 48.96mm |
| Width | 78.4mm |
| Series | gen4 |
| Maximum Operating Temperature | 60°C |
| Brightness | 182cd/m² |
| Minimum Operating Temperature | -10°C |
| Interface Type | Serial |
| Screen Resolution | 240 x 320 pixel |
| Standards/Approvals | CE |
| Touch Screen Type | Resistive |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4V |
| Viewing Area Dimensions | 37 x 49 mm |
| Backlight Type | LED |
| Diagonal Display Size | 60.96mm |
| Contrast Ratio | 250:1 |
| Contrast Ratio250 | 1 |
| 250 | 1 |
Key Features
- High-quality LCD colour display with 2.4 inch diagonal and 240 x 320 pixel resolution.
- Resistive touch screen for reliable human-machine interface applications.
- Powered by Diablo16 processor for robust graphics, text, image, and animation control.
- Serial interface for easy integration with various systems.
- Wide voltage range, operating from 4V to 5.5V for flexible deployment.
- Compact design, with viewing area dimensions of 37 x 49mm and overall height of 7.2mm.
- LED backlight provides clear and bright display visibility.
- Interface board and 150mm FFC cable included for immediate usability.
Product Description
4D Systems gen4-uLCD-24DT LCD Colour Display Touch Screen delivers advanced display solution for industrial, laboratory, and embedded applications. This module features a 2.4 inch diagonal LCD with a 240 x 320 pixel resolution and resistive touch functionality, ensuring responsive control for human-machine interfaces.
The display utilizes a Diablo16 processor, offering built-in capabilities for graphics, text, images, and animations. It is fully compatible with 4D Systems Workshop4 IDE, supporting flexible development for designers and engineers.
Its compact and slim profile, measuring 78.4mm in width, 48.96mm depth, and 7.2mm in height, is ideal for space-constrained projects. The viewing area of 37 x 49mm and LED backlight guarantee a clear and vivid display. The module is equipped with a 30-pin ZIF socket for easy connection, streamlining installation and signal routing.
The included gen4-IB interface board and 150mm FFC cable provide ready-to-use package contents, reducing setup time. Additional features include a micro-SD card connector for multimedia storage and data logging, 16 GPIO pins with configurable outputs, and support for multiple communication interfaces such as I2C and SPI channels.
2.4 inch TFT transmissive display offers RGB 65k colours for true-to-life visuals. Touch screen uses 4-wire resistive technology for precise operation. Supports serial interface, 32KB user RAM, and 6 banks of 32KB flash memory for extensive programming.
Includes dedicated PWM audio pin and support for quadrature encoder inputs and GPIO pulse outputs. Operating voltage range from 4V to 5.5V, suitable for embedded control systems and automation.
Typical industrial applications include automation panels, laboratory equipment displays, test and measurement instruments, commercial kiosks, and IoT devices. The CE certification and REACH compliance provide assurance of international safety standards.
Set contents: 1 x 2.4in gen4-uLCD-24DT LCD display module, 1 x gen4-IB interface board, 1 x 150mm FFC Cable. Explore more Display Modules and LCD solutions from EnvMart and 4D Systems for your embedded and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The screen resolution is 240 x 320 pixels.
The viewing area dimensions are 37 x 49 mm.
It operates within a voltage range of 4V to 5.5V.
This model features a resistive touch screen technology.
The maximum operating temperature is 60°C.
It supports a serial interface for easy integration with various systems.
The diagonal display size is 60.96 mm (2.4 inches).
The brightness rating is 182 cd/m².
The package includes the gen4-IB interface board and a 150mm FFC cable.
The contrast ratio is 250:1.
The display module measures 78.4 mm in width, 48.96 mm in depth, and 7.2 mm in height.
It complies with CE certification and REACH standards.
