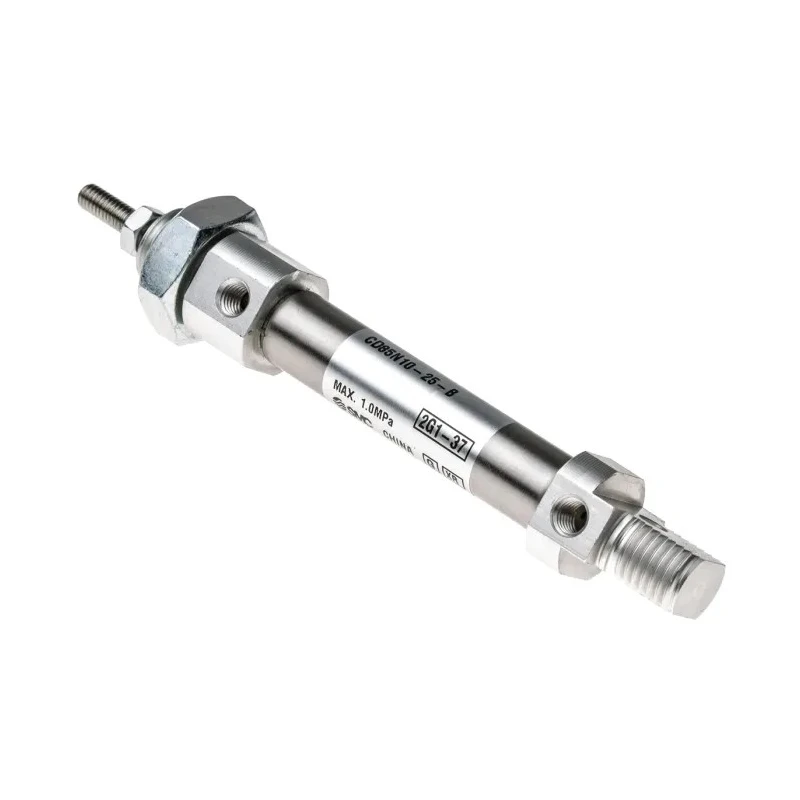

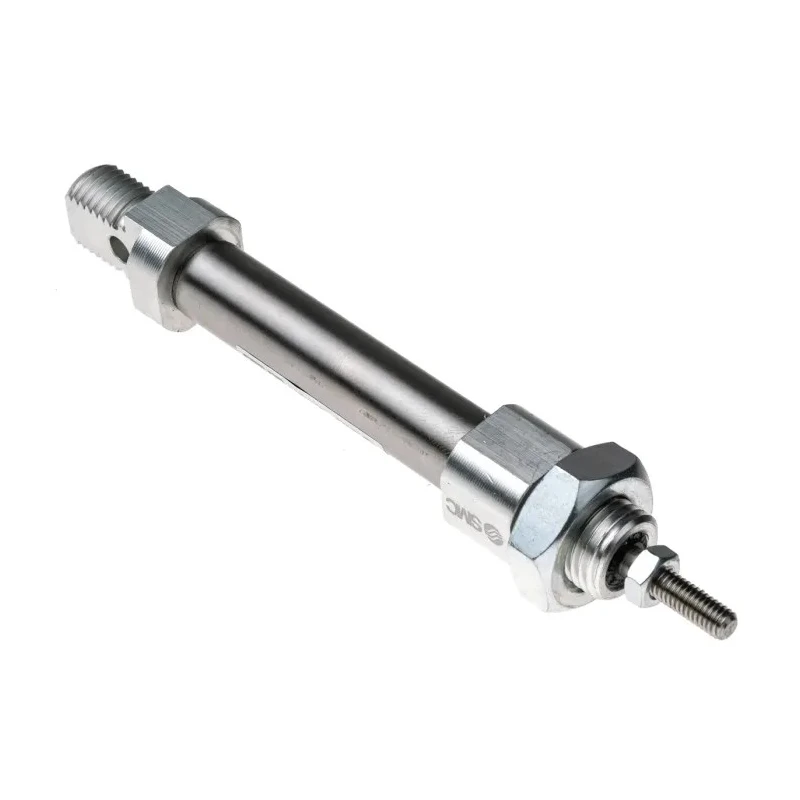

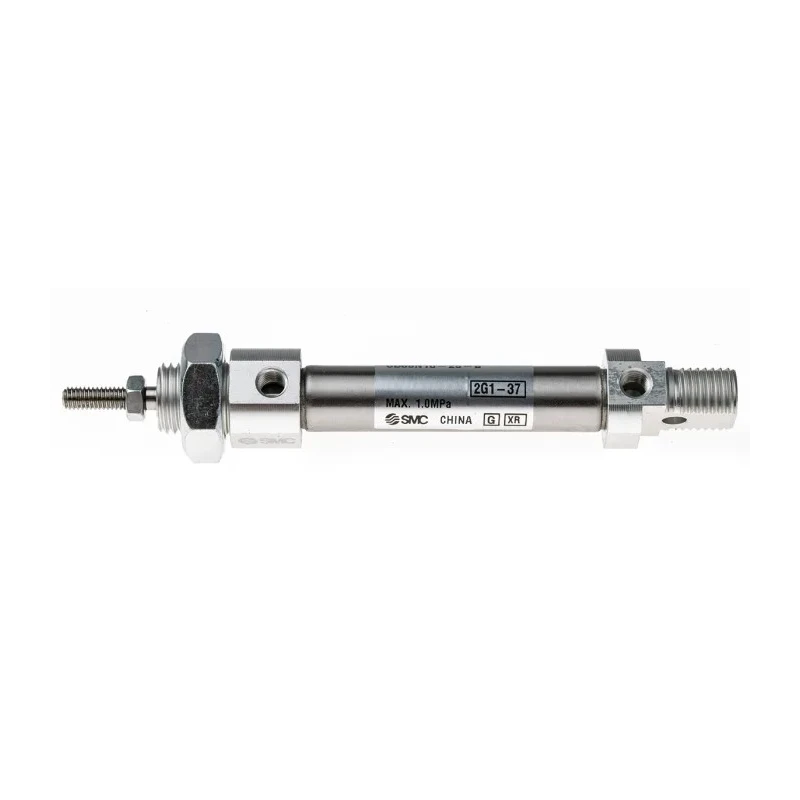

SMC Pneumatic Piston Rod Cylinder 25 mm Stroke, Aluminium Alloy Body, Double Acting, Clevis Mount, CD85 Series

SMC CD85N10-25-B Pneumatic Piston Rod Cylinder offers a compact linear actuator solution engineered for industrial automation and precise mechanical motion control. This double acting cylinder delivers efficient push and pull force within a compact 111 mm length and a 25 mm stroke, ideal for applications demanding short, accurate linear displacement.

The aluminium alloy body reduces overall assembly weight, facilitating easy integration into dynamic systems requiring light components. Its clevis mounting arrangement allows straightforward pivot installation, enhancing adaptability in various mechanical designs.

Cushioning with rubber bumpers minimizes impact forces at stroke ends, extending the cylinder's operational life and ensuring smooth motion cycles. The single piston rod is male with an M4 metric thread, providing a standardized interface for accessory attachment and mechanical linkage.

Designed for continuous operation in environments with temperatures up to 80°C, this cylinder meets ISO 6432 standards, assuring high manufacturing and operational quality. It is well-suited for industrial uses such as pick-and-place mechanisms, gating and latching in electrical cabinets, and precise component handling in sub-assembly processes.

Typical applications include electronic device manufacturing, test rigs requiring short-stroke positioning, and assembly line automation. The compact and robust design aids integration into tight spaces without compromising performance or reliability.

Double acting cylinder provides controlled push and pull motion for flexible operation. Aluminium alloy construction reduces assembly weight for moving systems. Clevis mount allows straightforward pivot installation in automated setups.

Rubber bumpers provide cushioning to minimize impact at end positions. Single male piston rod with M4 metric thread simplifies accessory attachment. Rated for continuous operation up to 80°C supporting elevated temperature environments.

Compact 111 mm length with 25 mm stroke suitable for precise short linear movements. Complies with ISO 6432 standards ensuring industrial compatibility and quality. Explore EnvMart's Pneumatic Cylinder range for more industrial automation and machine control solutions.
