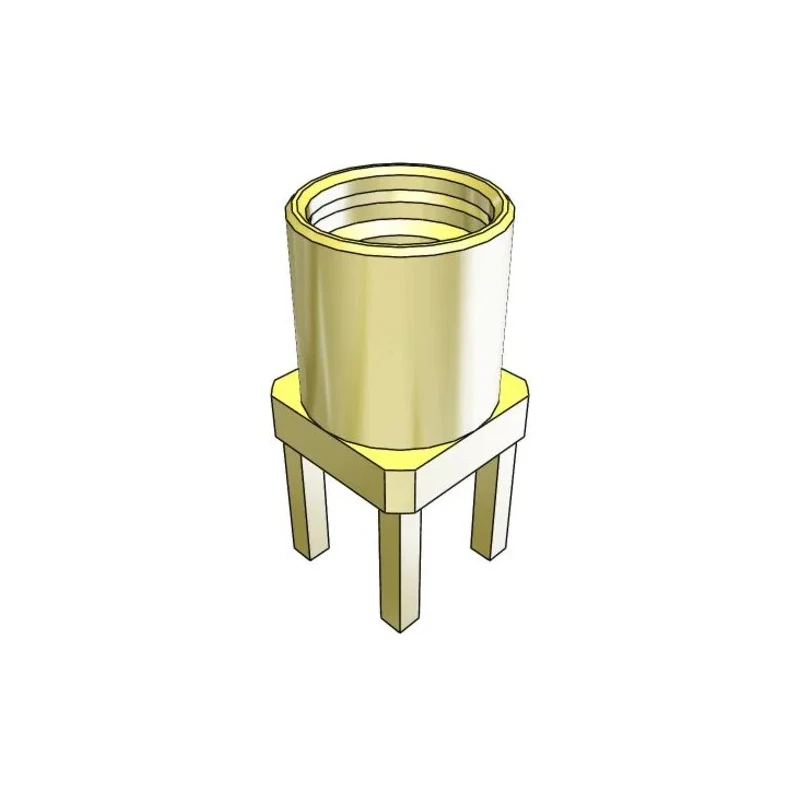

Samtec MMCX Series Coaxial Connector Through Hole Female MCX, 50 Ω, Straight Body Solder MMCX-J-P-H-ST-TH1
Specifications
| Country of Origin | India |
|---|---|
| Size | Micro Miniature |
| Brand | Samtec |
| Orientation | Straight |
| Model | MMCX-J-P-H-ST-TH1 |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | MMCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- Connector supports frequency up to 6 GHz for high-performance signal transmission.
- Compact micro miniature size suitable for dense electronic assemblies.
- Gold-plated beryllium copper alloy contacts ensure excellent conductivity and durability.
- Operating temperature range from -65°C to 125°C for reliable use in various environments.
- Solder termination with through-hole mounting provides secure PCB integration.
- Normal polarity and straight orientation enable standard connection configurations.
- Gold body plating enhances corrosion resistance and maintains signal integrity.
- Part of the MMCX series designed specifically for coaxial cable applications.
Product Description
Samtec MMCX-J-P-H-ST-TH1 is a high-quality Coaxial Connector designed for reliable signal transmission in electronics applications requiring a 50 Ω impedance. This female MCX connector features a straight body and through-hole mounting for secure soldering onto PCBs.
The connector supports operation frequencies up to 6 GHz with a compact micro miniature size, ideal for dense electronic assemblies. Its body plating and contact plating of gold provide excellent resistance to corrosion and maintain optimal electrical performance over time.
Constructed with beryllium copper alloy contacts, it ensures both mechanical strength and superior conductivity. The normal polarity configuration facilitates standardized connections within MMCX series coaxial cable assemblies. Operating conditions range from a minimum of -65°C to a maximum of 125°C, making it suitable for diverse industrial and laboratory environments.
Solder termination and through-hole mounting support easy and durable PCB integration. This connector is used extensively in RF communication devices, test instrumentation, and other electronic equipment requiring precise signal integrity.
This connector supports a frequency range up to 6 GHz for high-performance signal transmission. Micro miniature size ideal for compact electronics applications. Gold-plated beryllium copper alloy contacts for durability and conductivity.
Operating temperature range from -65°C to 125°C for versatile use. Solder termination type facilitates secure through-hole mounting. Normal polarity and straight orientation for standard configurations. Gold body plating enhances corrosion resistance and signal integrity.
Part of the reliable MMCX series designed for coaxial cables. Suitable for industrial, laboratory, and communication equipment applications.
Choose Samtec MMCX-J-P-H-ST-TH1 for robust coaxial connection solutions with trusted quality and performance. Explore our Electronics Components for more connectors and accessories designed to meet high technical standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Samtec MMCX-J-P-H-ST-TH1 supports a maximum operating frequency of 6 GHz, making it suitable for high-performance signal transmission applications.
This model has an impedance rating of 50 Ω, which is standard for many coaxial cable applications.
The operating temperature range for this connector is from -65°C to 125°C, allowing it to function in various environmental conditions.
The contacts are made from beryllium copper alloy and are gold-plated, ensuring excellent conductivity and corrosion resistance.
It features a solder termination type, which allows for secure through-hole mounting on PCBs.
This connector has a straight orientation, facilitating standard connection configurations.
This model is classified as a micro miniature size, making it suitable for dense electronic assemblies.
It is designed for use with coaxial cables, which is typical for RF communication and other electronic applications.
The body of this connector is gold-plated, enhancing its corrosion resistance and maintaining signal integrity over time.
Yes, the MMCX-J-P-H-ST-TH1 is suitable for various applications, including industrial, laboratory, and RF communication devices.
This connector is a female type, designed to mate with male connectors in coaxial cable assemblies.
The Samtec MMCX-J-P-H-ST-TH1 connector is manufactured in India.
