Eaton Cam Switch 2 Position 90° Knob Actuator 20A 690V Panel Mount 207398 T0-2-8900/E

Free Delivery in India | Lowest Global Shipping Charges

Eaton Cam Switch 2 Position 90° Knob Actuator 20A 690V Panel Mount 207398 T0-2-8900/E

Name: Eaton Cam Switch 2 Position 90° Knob Actuator 20A 690V Panel Mount 207398 T0-2-8900/E
Brand: Eaton
SKU: 182761
Price: 45.75 USD
Availability: InStock



Category Cam Switch Brand Eaton Condition New

Specifications

Country of Origin	United Kingdom
Brand	Eaton
Length	48mm
Model	207398 T0-2-8900/E
Depth	65mm
IP Rating	IP65
Width	90mm
Mount Type	Panel Mount
Series	T0
Maximum Operating Temperature	50°C
Actuator Type	Knob
Number of Positions	2
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	3
Mechanical Life	10000000Operations
Contact Voltage	690V
Contact Current	20A
Angle of Throw	90 °
BACO, 4P Rotary Switch, 20 A, Knob ActuatorBrand	BACO
ABB, 4P 2 Position 90°, 25ABrand	ABB

Key Features

Employs a 4-pole configuration for efficient circuit management.
Features a knob actuator with a 90-degree angle of throw for precise operation.
Designed for panel mount installation with screw terminal connections.
Rated IP65 for dust and water resistance suitable for tough environments.
Operates reliably between -25°C and 50°C, adaptable for varied environments.
Built for mechanical longevity with a rated life of 10 million operations.
Complies with UL, IEC/EN, CE, CSA, and other international standards.

Product Description

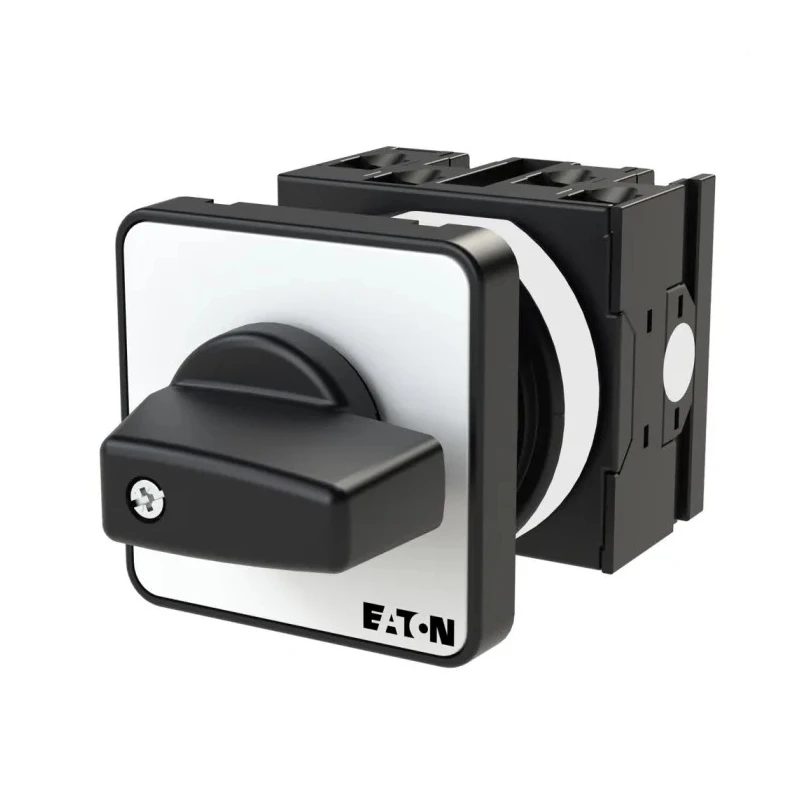

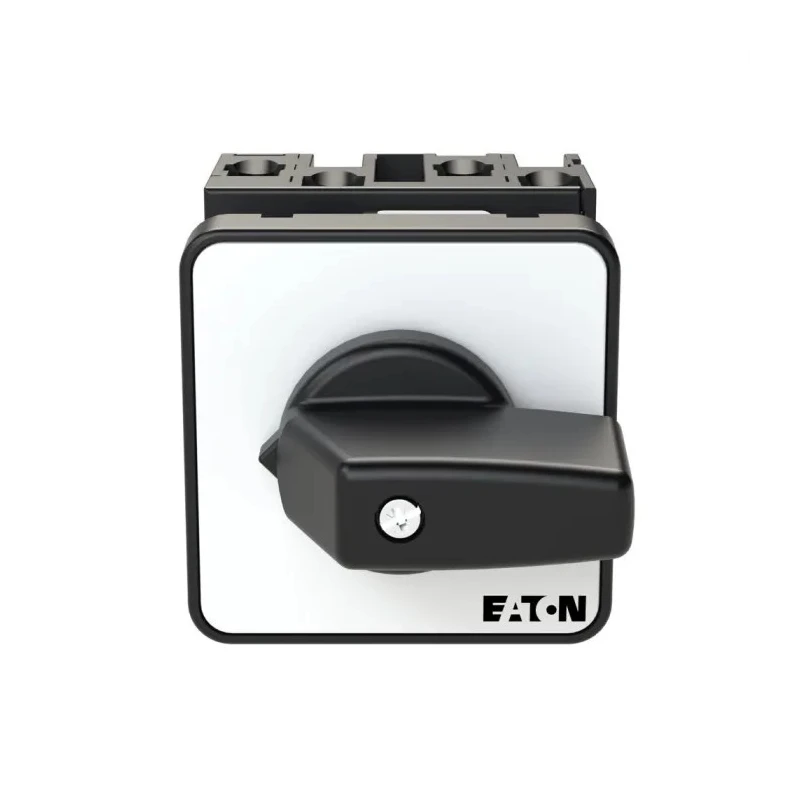

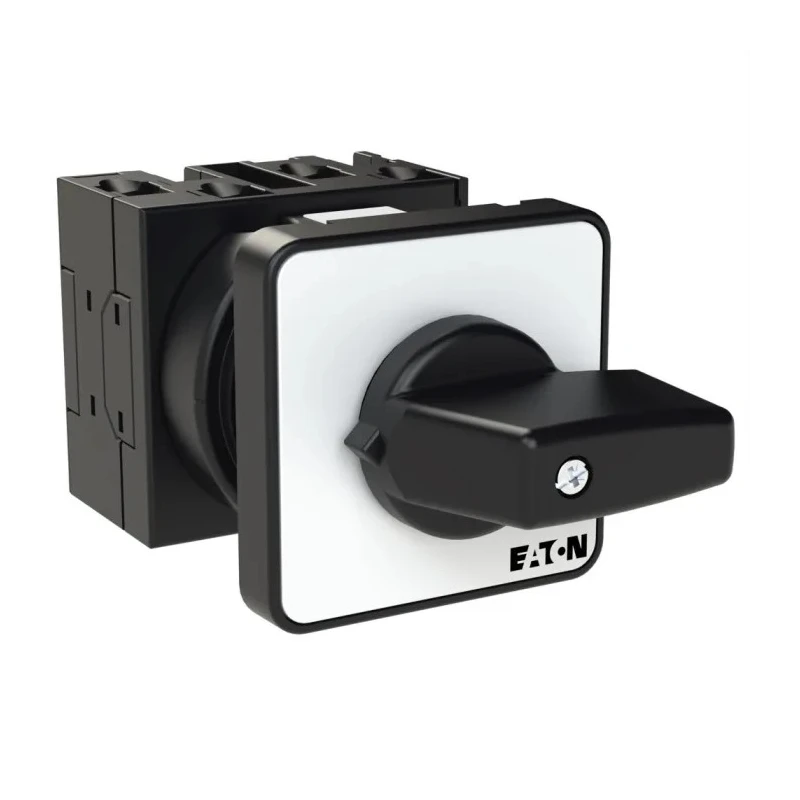

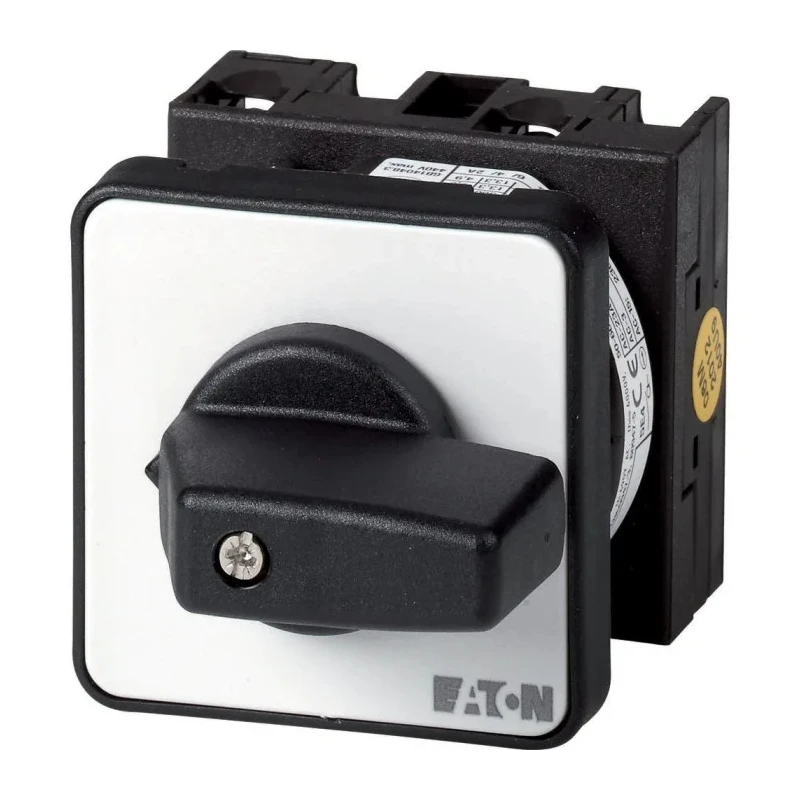

Eaton 207398 T0-2-8900/E Cam Switch is a robust electrical control device designed for industrial and automation applications, offering reliable switching at a contact current of 20A and contact voltage up to 690V. This panel mount cam switch uses a knob actuator mechanism that allows 2 positions with a 90° angle of throw, providing precise control over circuit operations.

Featuring a 4-pole configuration, it provides effective isolation and switching capability suitable for motor circuits, electrical distribution panels, and industrial machinery. The screw terminal type facilitates secure, easy wiring for solid or stranded conductors.

Constructed with an IP65 rating, this cam switch ensures protection against dust ingress and low-pressure water jets, making it suitable for harsh indoor and outdoor industrial environments. Its mechanical life expectancy of 10 million operations underlines its durability for continuous operation.

Operating temperature ranges from -25°C to +50°C ensure adaptability for varying climatic conditions, with effective performance maintained in both enclosed and open installations. The compact size (90mm width, 48mm length, 65mm depth) supports installation even in limited spaces.

Uses 4-pole switch configuration for advanced control. 90° throw angle knob actuator enhances operational ease. Screw terminals support secure and stable electrical connections. IP65 rating for reliable protection against dust and water ingress.

Complies with multiple international electrical standards including UL, IEC/EN, CE, and CSA. Meets industrial requirements with a mechanical life of 10 million operations. Compact dimensions ensure flexibility in panel mounting.

Suitable for motor control, automation, and industrial electrical systems.

This Eaton cam switch is manufactured in the United Kingdom, embodying high-quality engineering suitable for varied industrial, manufacturing, HVAC, and commercial electrical applications. It is an essential component for control panels requiring reliable switching performance under demanding conditions.
