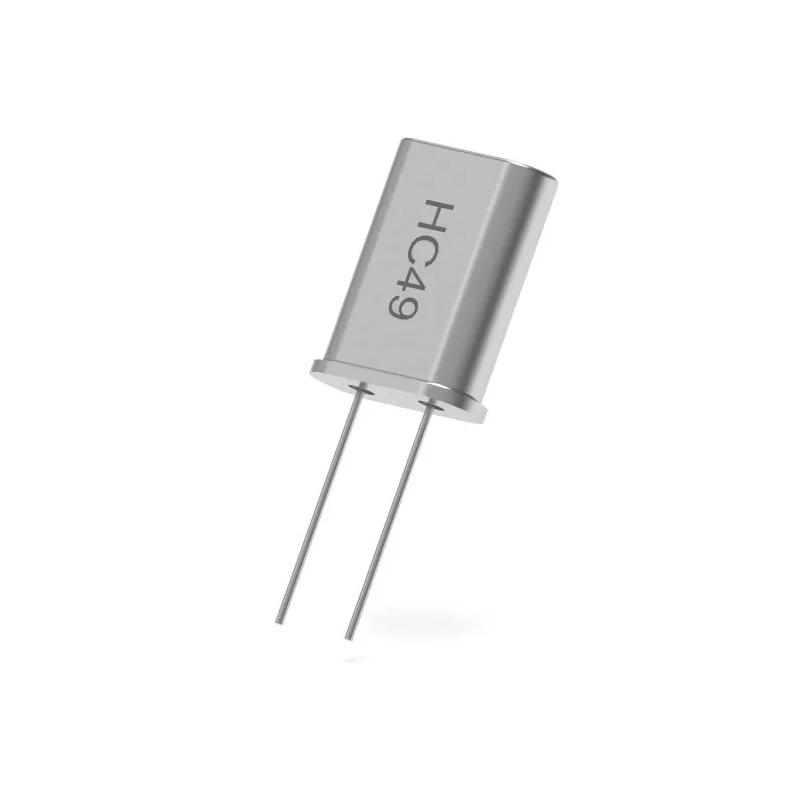

IQD 3.6864 MHz Crystal Unit ±20 ppm HC-49 2-Pin 13.46 mm Height, 11.05 mm Length, 4.65 mm Width LFXTAL003257B

IQD LFXTAL003257B is a 3.6864 MHz crystal unit designed for accurate oscillation control in industrial and electronics applications. This crystal unit features a through-hole mount type and is packaged in the industry-standard HC-49 form factor with 2 pins. It provides a frequency tolerance of ±20 ppm and maintains stability within ±50 ppm, making it suitable for precision electronic circuits.

The robust construction includes resistance welded, hermetically sealed glass-to-metal seals to protect the internal oscillator element, enhancing reliability and longevity under various operating conditions. The dimensions are 13.46 mm in height, 11.05 mm in length, and 4.65 mm in width, fitting standard PCB layouts requiring HC-49 packages.

Operating across a temperature range from -10°C to 60°C, this crystal unit supports a load capacitance of 30pF and a series resistance of 150Ω while complying with RoHS and REACH standards to meet environmental and safety regulations.

This component is ideal for use in industrial electronic equipment, instrumentation, and communication devices where precise frequency generation is critical. The crystal unit features a standard 2-pin through-hole mount.

It is housed in an HC-49 package with dimensions 13.46 mm height, 11.05 mm length, and 4.65 mm width. Frequency stability is maintained within ±50 ppm over operating temperature range. Designed for industrial and electronic component applications requiring reliable oscillation.

Construction includes resistance welded, hermetically sealed glass-to-metal seals ensuring durability. Operates efficiently between -10°C to 60°C allowing use in varied environments. Compliance with RoHS and REACH standards ensures environmental safety.

Series resistance of 150Ω supports stable oscillation performance. Explore more electronic components and Crystal Units at EnvMart to meet your precision frequency control needs.
