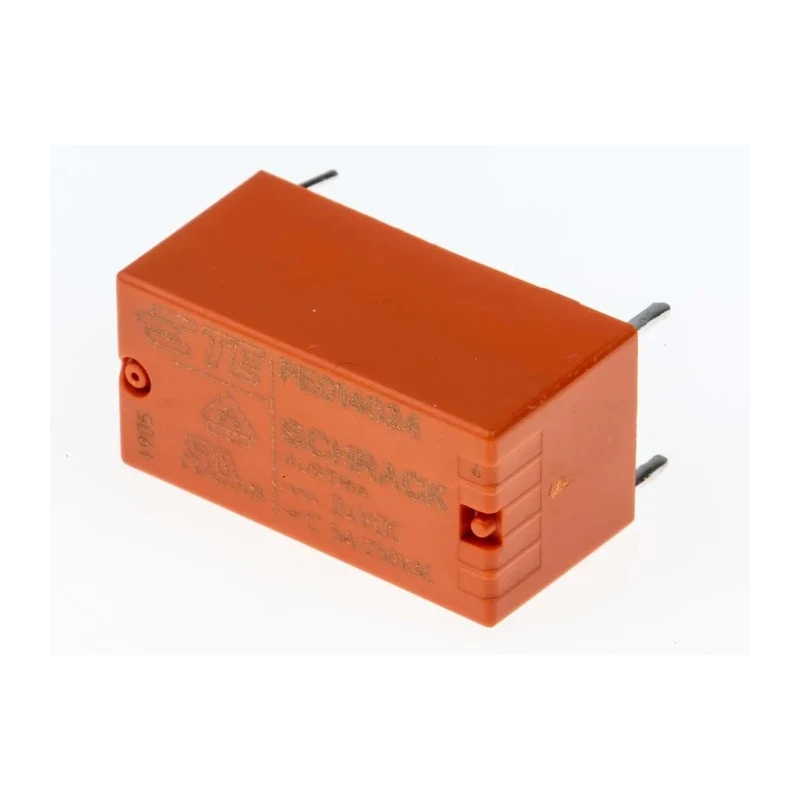

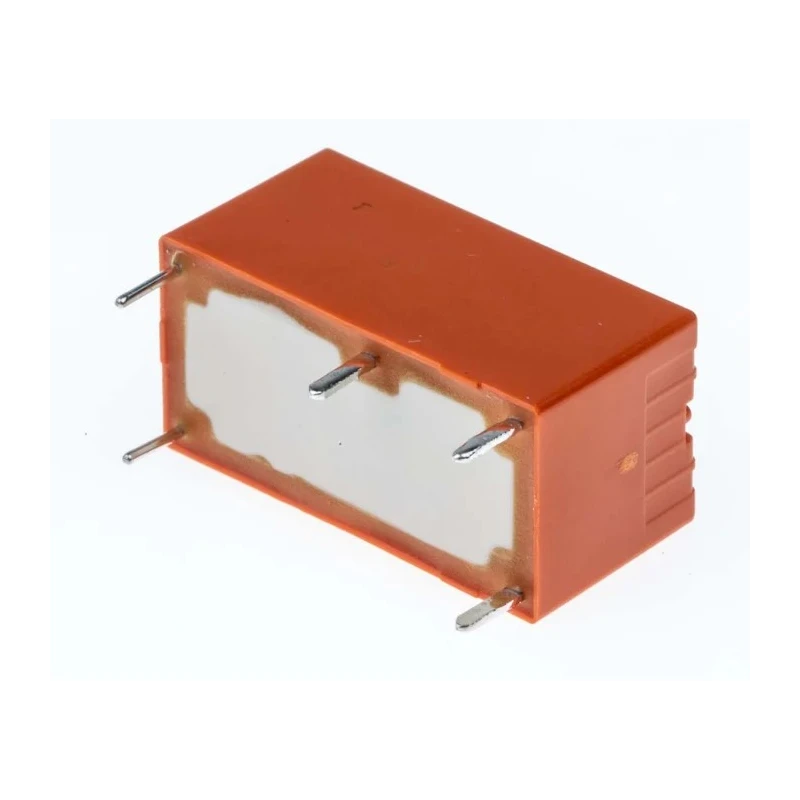

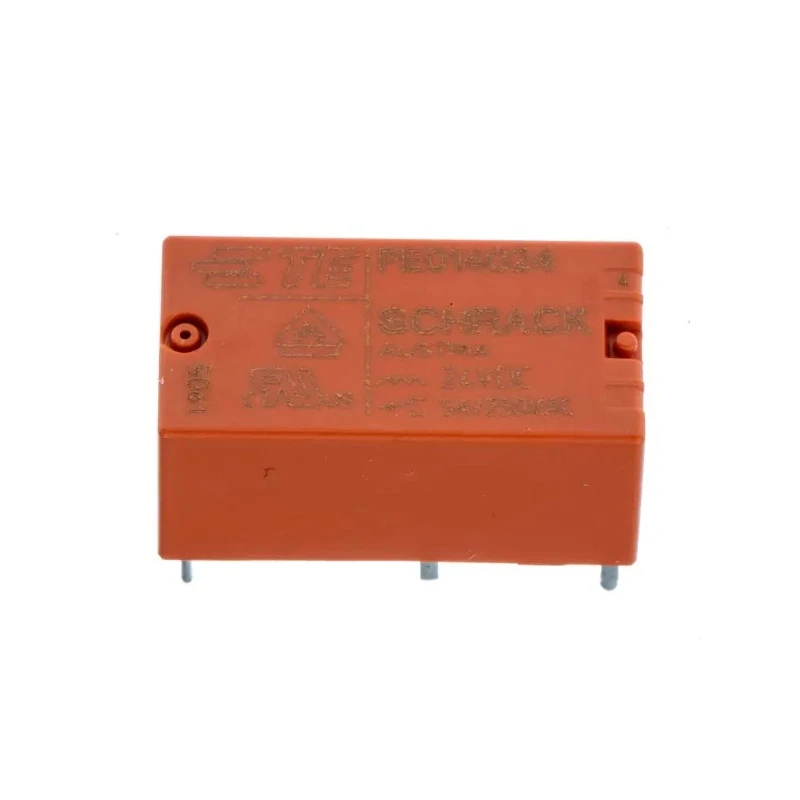

TE Connectivity PCB Power Relay, 24V DC Coil, 5A Switching Current, SPDT PE014024

TE Connectivity PE014024 PCB Power Relay is a compact and reliable power relay designed for use in industrial electronic applications, household appliances, and control equipment. It features a 24V DC coil voltage and supports a switching current of 5A with a Single Pole Double Throw (SPDT) contact configuration. This relay is optimized for Printed Circuit Board (PCB) mounting and includes solder terminals for secure electrical connections.

The relay operates efficiently over a wide temperature range from -40°C to 85°C, making it suitable for demanding environments. Its coil power consumption is only 211mW, reflecting the high coil sensitivity of 200mW, which contributes to low energy usage during operation.

Constructed with silver nickel alloy contacts, the device ensures long-lasting performance and reliable conductivity. The relay can handle switching voltages up to 400V AC and switching power of 1.3kVA, meeting various industrial power relay requirements.

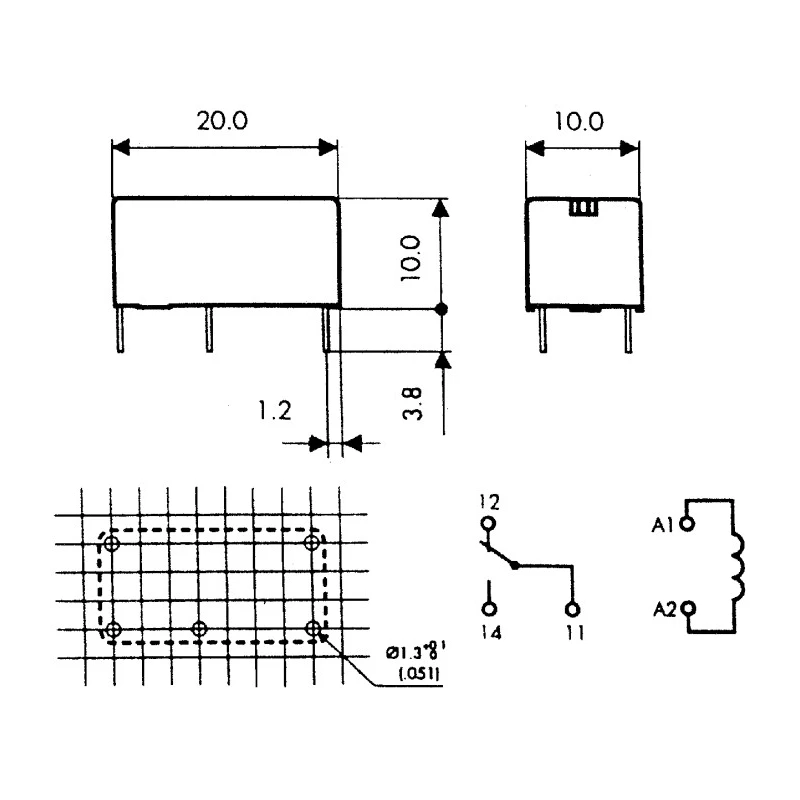

With compact dimensions of 20mm in length, 10mm in width, and 10mm in height, this PE series relay integrates seamlessly into PCB layouts without occupying excessive space. Certified and compliant with VDE and cULus approvals, the PE014024 offers assured quality and safety compliance for industrial and commercial electrical applications.

Coil voltage is 24V DC ensuring reliable operation. Contact configuration is Single Pole Double Throw (SPDT) for versatile switching. Designed for PCB mounting with solder terminals for secure installation. Operates efficiently within a temperature range of -40°C to 85°C.

Compact size with dimensions length 20mm, width 10mm, and height 10mm. Coil power consumed is low at 211mW indicating high coil sensitivity. Silver Nickel Alloy contact material ensures durability and stable conductivity.

Switching voltage supports up to 400V AC and switching power of 1.3kVA. Approved by VDE and cULus standards assuring quality and safety.

This power relay is ideal for applications in industrial automation, laboratory equipment, HVAC systems, manufacturing machines, and household electrical devices. Its reliable switching capability and compact design provide effective control with robust performance.
