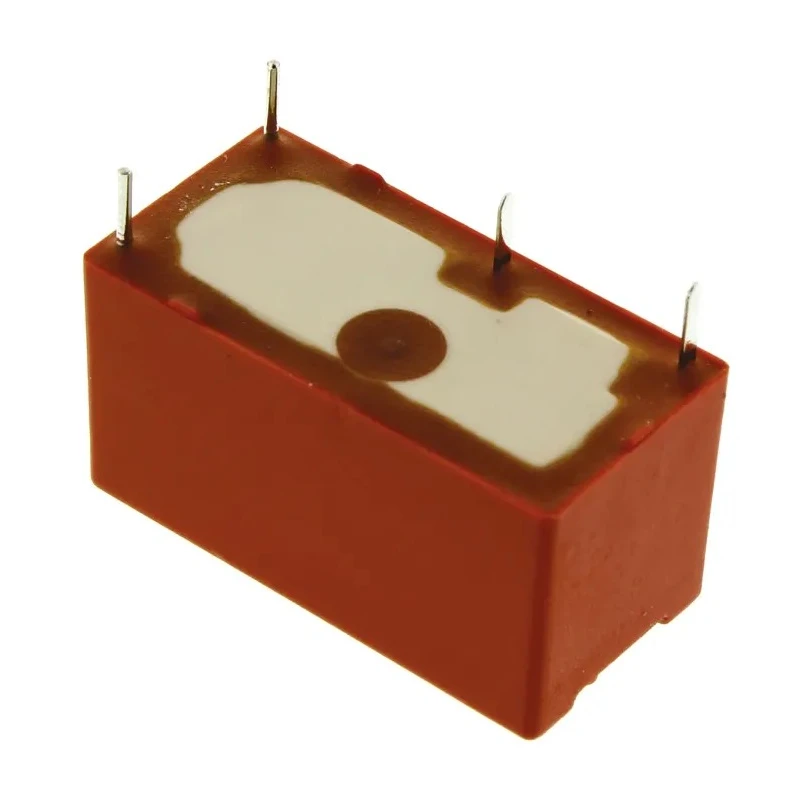

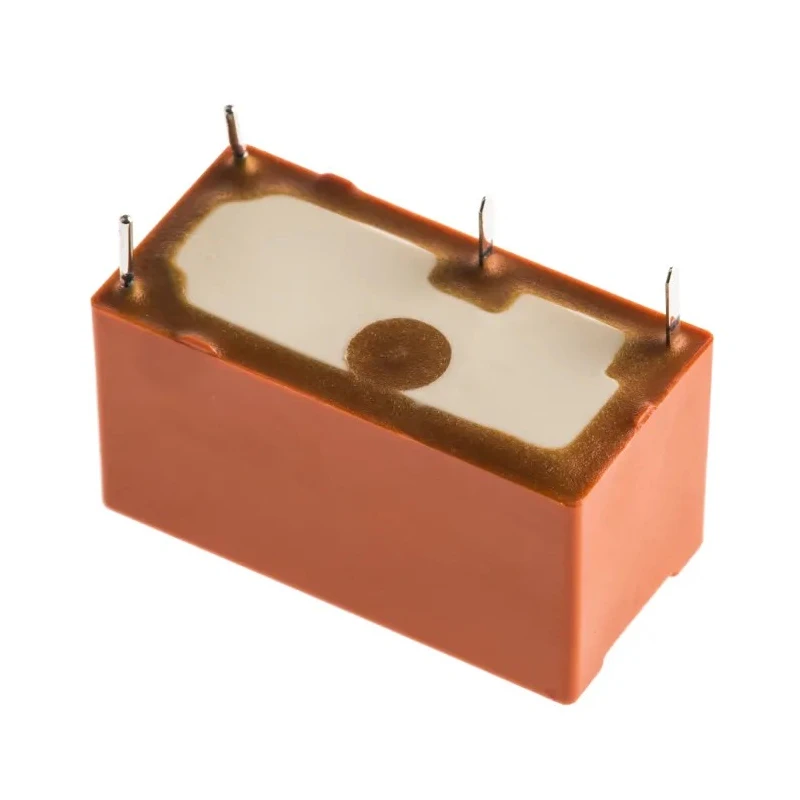

TE Connectivity Power Relay, PCB Mount, 24V dc Coil, 6A Switching Current, SPST Contact RE034024

TE Connectivity RE034024 is a high-quality power relay designed for PCB mounting applications. It operates with a 24V dc coil voltage and supports a switching current of 6A in an SPST contact configuration, making it ideal for various industrial and automation uses.

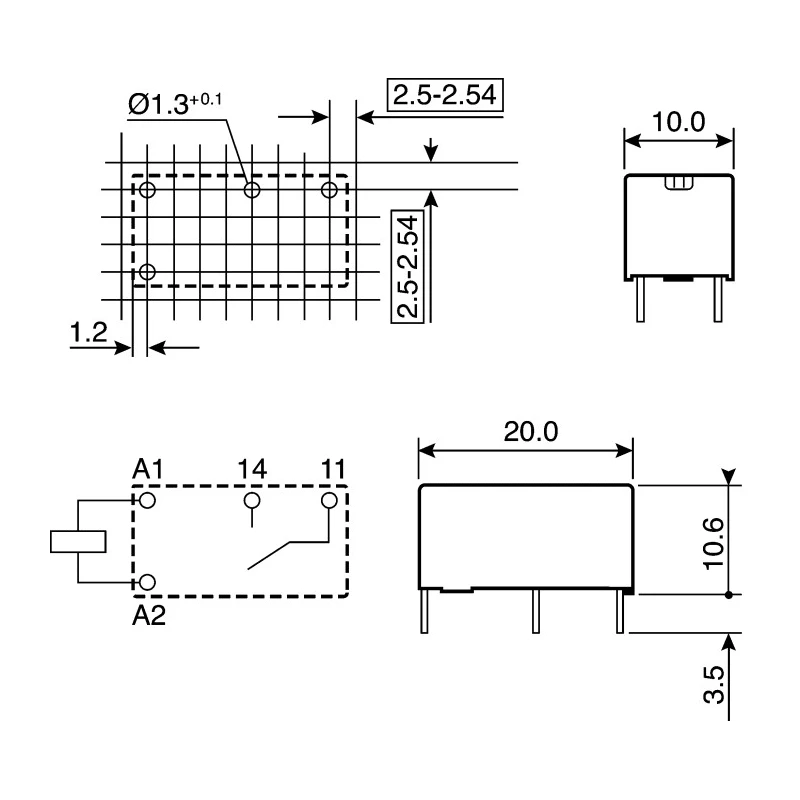

The relay features a sensitive coil consuming only 200mW, which increases energy efficiency. Contact material is silver nickel alloy, ensuring excellent conductivity and long-term durability. Its compact size of 20mm length, 10mm width, and 10.6mm height allows for easy integration into standard PCB layouts.

With a robust temperature operating range from -40°C to 70°C, this relay is suited for challenging environments. It meets VDE and cULus standards, confirming compliance with recognized quality and safety requirements. The relay supports a switching power of 1.5kVA at an AC voltage of 250V and features creepage and clearance distances of 4mm to maximize electrical safety. The UL94V-0 flammability rating adds fire resistance critical for industrial electronics.

Typical applications for the RE034024 relay include programmable logic controllers (PLCs), timers, temperature control systems, I/O cards, and household appliances. Manufactured in the Czech Republic, this relay combines reliability with precision performance necessary for industrial, laboratory, HVAC, manufacturing, and commercial electrical applications.

Reinforced with a sensitive coil with only 200mW coil power consumption. Constructed with silver nickel alloy contacts for reliable conductivity and durability. Compact design with dimensions 20mm length, 10mm width, and 10.6mm height suitable for tight PCB areas.

Operating temperature range from -40°C to 70°C ensures wide environmental tolerance. Approvals include VDE and cULus ensuring compliance with international standards. Switching AC voltage rated at 250V with switching power of 1.5kVA.

Creepage and clearance distance of 4mm enhances electrical safety. Flammability rated UL94V-0 for high fire resistance. Applications include PLCs, timers, temperature control, I/O cards, and white goods. Manufactured in Czech Republic ensuring quality and reliability.
