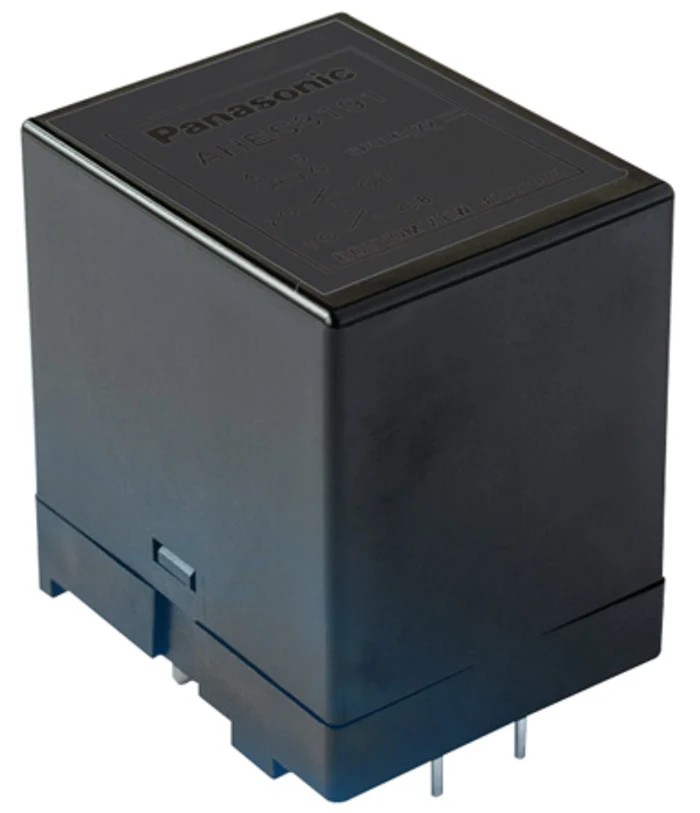

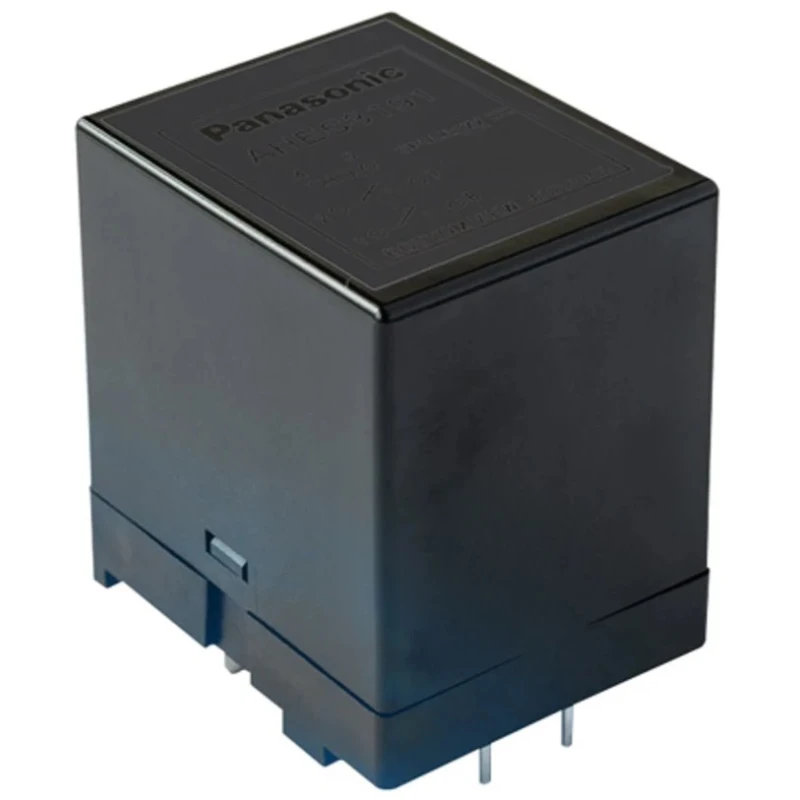

Panasonic PCB Power Relay 24V dc Coil 35A Switching Current DPST AHES3192
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 40mm |
| Length | 30mm |
| Model | AHES3192 |
| Width | 36mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HE-S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 35A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE, RoHS |
| Coil Resistance | 306.4Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 110V ac |
| Coil Power | 1.88W |
Key Features
- Compact and robust design suitable for industrial applications.
- Coil voltage rated at 24V DC with coil resistance of 306.4Ω.
- Switching current capacity up to 35A for reliable power management.
- Operating temperature range from -40°C to 85°C ensures durability.
- Silver alloy contact material reduces resistance and extends relay life.
- Mount type is PCB with PCB pin terminals for easy integration.
- Suitable for use in photovoltaic systems, UPS, inverters, and industrial equipment.
- Coil power consumption of 1.88W for energy efficiency.
Product Description
Panasonic AHES3192 PCB Power Relay combines compact size with high operating power and reliability. Designed specifically for PCB mounting, it is ideal for applications requiring robust power switching.
The relay features a 24V DC coil with a resistance of 306.4Ω and a coil power of 1.88W, enabling low energy consumption while providing reliable operation. It supports a maximum switching current of 35A with a DPST contact configuration and silver alloy contacts for reduced resistance and higher durability.
Its operating temperature range from -40°C to 85°C makes it suitable for varied environments including industrial equipment, photovoltaic power generation systems, uninterruptible power supplies (UPS), inverters, and office air conditioning systems.
The relay has dimensions of 40mm in height, 36mm in width, and 30mm in length with PCB pin terminals for straightforward installation. It meets VDE and RoHS certifications ensuring quality and environmental compliance.
Compact and robust design suitable for industrial applications. Coil voltage rated at 24V DC with coil resistance of 306.4Ω. Switching current capacity up to 35A for reliable power management. Operating temperature range from -40°C to 85°C ensures durability.
Silver alloy contact material reduces resistance and extends relay life. Mount type is PCB with PCB pin terminals for easy integration. Suitable for use in photovoltaic systems, UPS, inverters, and industrial equipment. Dimensions: 40mm height, 36mm width, and 30mm length.
Coil power consumption of 1.88W for energy efficiency. Certified under VDE and RoHS standards for compliance and safety.
This Panasonic power relay is designed to deliver efficient and reliable performance for demanding electrical and automation systems. It supports critical industrial and energy management applications, enhancing operational safety and continuity.
Explore more Power Relays and related electronic components on EnvMart for comprehensive solutions to your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a coil voltage rating of 24V DC.
It can handle a maximum switching current of 35A.
The dimensions of this relay are 40mm in height, 36mm in width, and 30mm in length.
The operating temperature range is from -40°C to 85°C.
This relay features a DPST (Double Pole Single Throw) contact configuration.
The coil resistance is 306.4Ω.
The contact material is silver alloy, which helps reduce resistance and extend relay life.
It is designed for PCB mounting and has PCB pin terminals for easy integration.
It meets VDE and RoHS certifications for quality and environmental compliance.
The coil power consumption is 1.88W, which contributes to its energy efficiency.
This relay is suitable for use in photovoltaic systems, UPS, inverters, and industrial equipment.
The contact resistance is 100mΩ.
