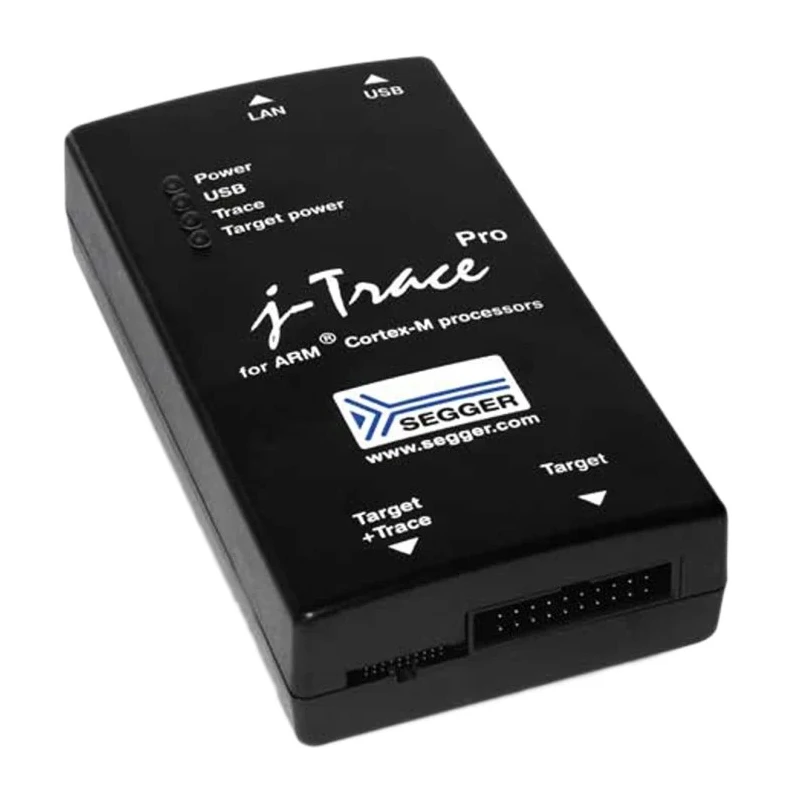

SEGGER J-Trace PRO for Cortex M ARM Trace Debugger and Emulator 8.18.00 J-Trace PRO for Cortex M

SEGGER 8.18.00 J-Trace PRO for Cortex M is a high-performance trace debugger and emulator designed specifically for embedded system development using ARM Cortex-M series microcontrollers. Combining sophisticated hardware and versatile connectivity, this tool enables developers to achieve advanced debugging and trace analysis with reliability and speed. Its continuous streaming trace capability over the integrated Gigabit Ethernet interface overcomes the limitations of internal buffers, making it ideal for recording infrequent or complex bugs that can occur during extended execution periods.

Supports a wide range of ARM Cortex M processors including M0, M0+, M1, M3, M4, and M7. Enables real-time streaming trace with unlimited buffer, allowing comprehensive debugging sessions. Interfaces include Gigabit Ethernet via RJ45 and USB 2.0 HS (480 Mbps) for flexible PC connections.

Compatible with JTAG/SWD 20-pin and JTAG/SWD + Trace 19-pin target interfaces, supporting a broad spectrum of hardware targets. 64MB on-board trace buffer enables legacy one-shot tracing for backward compatibility and efficient analysis.

Features code coverage and execution profiling to support software validation and performance optimization. Supports Embedded Trace Macrocell (ETM), Embedded Trace Buffer (ETB), and Micro Trace Buffer (MTB) architectures.

Compact size (123 x 68 x 30 mm) makes it suitable for use in laboratories, educational environments, and professional development workstations.

The SEGGER J-Trace PRO for Cortex M comes complete with all necessary accessories, including an Ethernet cable, USB cable, both 0.05in and 0.1in 20-pin ribbon cables, ensuring users can connect to a variety of development boards and targets right out of the box.

The device offers exceptional support for streaming trace at high speeds, supporting Cortex-M devices with up to 150MHz ETM trace clock (and 300MHz CPU clock), making it suitable for demanding and real-time-critical applications. Free software updates and two years of support from SEGGER ensure long-term value and compatibility with evolving development requirements.

Industrial and laboratory applications include embedded software development, firmware validation, debugging of complex microcontroller-based systems, electronics manufacturing, education, and product R&D requiring extensive trace analysis.
