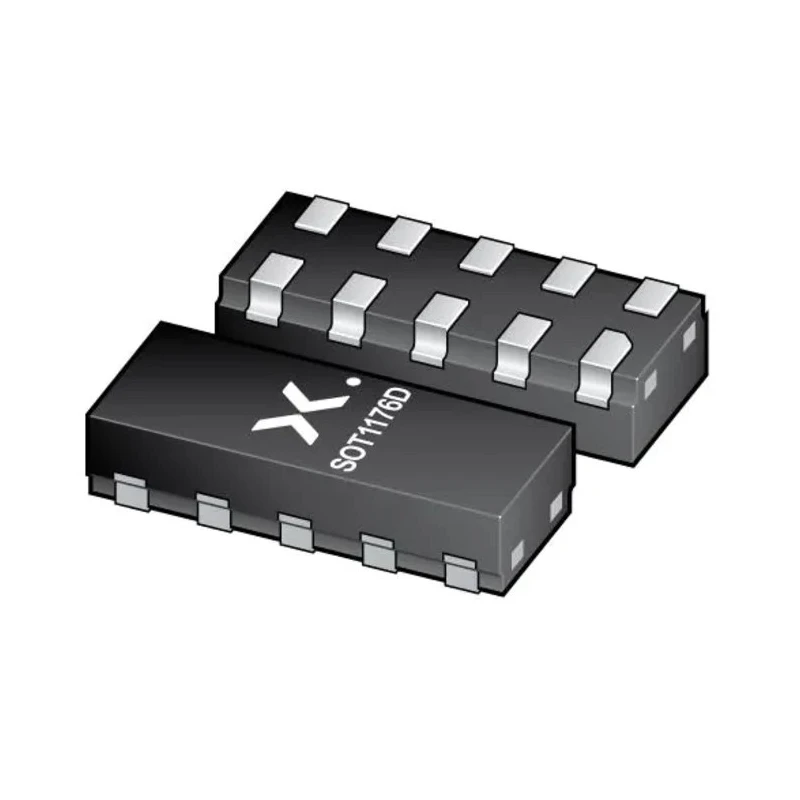

Nexperia Uni-Directional TVS Diode, 7A Peak Pulse, 10-Pin DFN2510D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | DFN2510D |
| Width | 1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | IEC61000-4-2 Level 4, ISO10605 |
| Pin Count | 10 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Unidirectional |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Provides unidirectional transient voltage suppression for high-speed data interfaces.
- Designed for robust ESD protection, supporting up to ±15kV.
- Low clamping voltage of 3.5V enhances protection for sensitive circuits.
- Automotive grade AEC-Q101 rated, suitable for infotainment and camera applications.
- Operates reliably from -55°C to +150°C for industrial and automotive environments.
- Surface mount DFN2510D package with 0.75mm height, 2.5mm length, and 1mm width.
- Matched trace spacing and side-wettable flanks enable AOI compatibility.
- Ideal for protecting USB 3.2, HDMI, LVDS, and GMSL serializer/deserializer lines.
Product Description
Nexperia PESD4USB5U-TBSX is a uni-directional transient voltage suppression (TVS) diode designed to protect high-speed data interfaces from electrostatic discharge and transient voltage spikes. Featuring a surface-mount DFN2510D package with 10 pins, this ESD protection device is optimized for USB 3.2, HDMI, Display Port, LVDS, GMSL, and automotive infotainment systems.
Engineered for robust protection, the PESD4USB5U-TBSX offers a minimum breakdown voltage of 6V, a clamping voltage of 3.5V, and can withstand peak pulse currents up to 7A. The device ensures reliable operation over a wide temperature range of -55°C to +150°C, making it well-suited for demanding industrial, automotive, and commercial applications.
Provides unidirectional transient voltage suppression for high-speed data interfaces. Designed for robust ESD protection, supporting up to ±15kV. Low clamping voltage of 3.5V enhances protection for sensitive circuits. Automotive grade AEC-Q101 rated, suitable for infotainment and camera applications.
Operates reliably from -55°C to +150°C for industrial and automotive environments. Surface mount DFN2510D package with 0.75mm height, 2.5mm length, and 1mm width. Matched trace spacing and side-wettable flanks enable AOI compatibility.
Ideal for protecting USB 3.2, HDMI, LVDS, and GMSL serializer/deserializer lines.
The compact line capacitance of only 0.5 pF per channel ensures compatibility with ultra-fast signal routing, while the outstanding deep snap-back feature combined with dynamic resistance delivers optimal system protection. Meeting IEC61000-4-2 Level 4 and ISO10605 standards, this diode is ready for integration into advanced circuit designs.
Applications include industrial and laboratory electronics, automotive infotainment, communications equipment, and multimedia serial links. With its surface-mount design and AOI-friendly side-wettable flanks, the diode is ideally suited for automated assembly and inspection processes in manufacturing environments.
Explore more semiconductors, TVS Diodes, and circuit protection solutions in the Nexperia range at EnvMart to meet your industrial, automotive, and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this model is 3.5V, which enhances protection for sensitive circuits.
This diode can withstand a maximum peak pulse current of 7A.
It operates reliably within a temperature range of -55°C to +150°C, making it suitable for industrial and automotive environments.
It uses a surface mount DFN2510D package, which has dimensions of 0.75mm height, 2.5mm length, and 1mm width.
This model meets IEC61000-4-2 Level 4 and ISO10605 standards, ensuring robust ESD protection.
The minimum breakdown voltage is 6V, providing reliable transient voltage suppression.
Yes, it is AEC-Q101 rated, making it suitable for automotive applications such as infotainment and camera systems.
This model is optimized for high-speed data interfaces including USB 3.2, HDMI, LVDS, and GMSL.
The maximum reverse stand-off voltage for this diode is 5V.
The maximum reverse leakage current is 100nA.
This diode features a pin count of 10, suitable for various applications.
The country of origin for this model is India.
