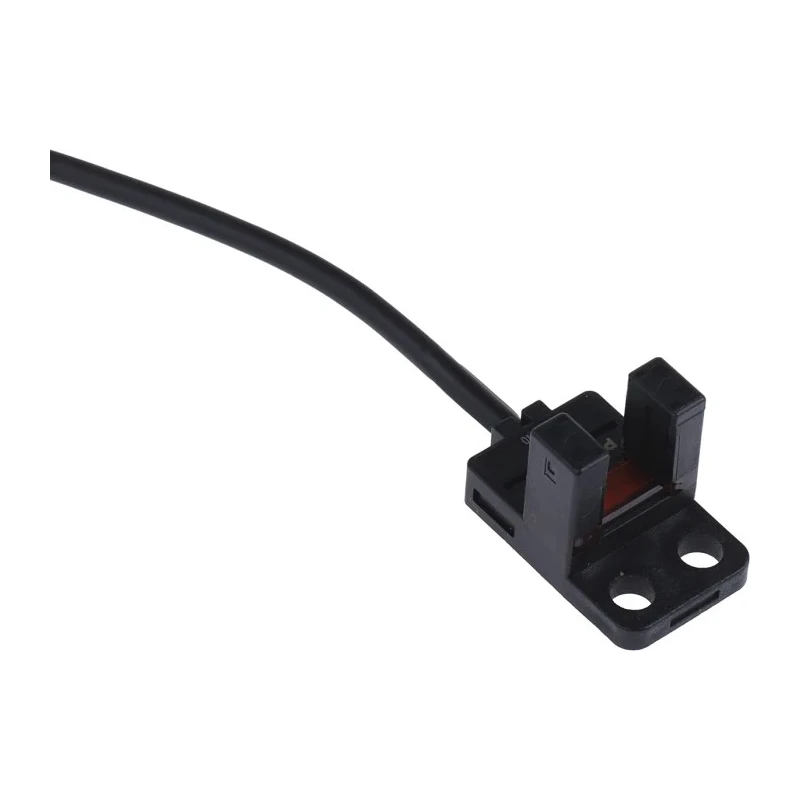

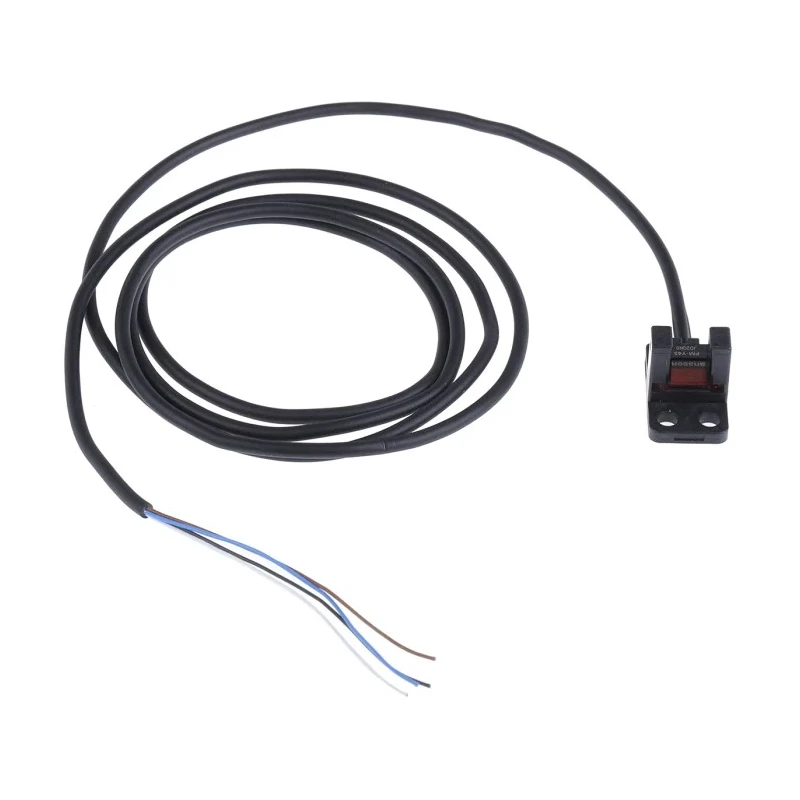

Panasonic Through Beam Photoelectric Fork Sensor NPN, 6 mm Detection Range, IP64, PM-Y45
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-Y45 |
| IP Rating | IP64 |
| Mount Type | Chassis Mount |
| Housing Material | Polybutylene Terephthalate, Polycarbonate |
| Output type | NPN |
| Series | PM-45 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | Cable |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
Key Features
- Ultra-compact U-shaped design for easy installation in tight spaces.
- Featuring a through beam detection method with a 6 mm sensing gap.
- NPN output type suitable for interface with industrial controllers.
- IP64-rated housing provides excellent protection against dust and splash water.
- Large LED operating indicator for easy status monitoring.
- Reverse supply polarity protection prevents incorrect wiring.
- Resin reinforced cable connection area for improved vibration and impact resistance.
- Chassis mount for secure, stable installation.
Product Description
Panasonic PM-Y45 Through Beam Photoelectric Fork Sensor is engineered for high-performance object detection in automation and control systems. As part of the PANASONIC PM-45 series, this fork sensor features a compact U-shaped design, enabling easy integration and installation in constrained industrial environments. Its 6 mm detection range is well suited for positioning and counting tasks where precision and repeatability are essential.
The through beam detection ensures accurate sensing of opaque objects passing through the fork gap. An NPN output provides compatibility with a variety of industrial control systems, supporting quick response and reliable switching. The IP64-rated enclosure protects against dust ingress and water splashes, making this sensor ideal for demanding manufacturing conditions.
Ultra-small U-shaped housing combines emitter and receiver in a single body. Infrared light source ensures stable object detection. Reverse supply and output polarity protection safeguards sensor electronics. Output short circuit protection prevents operational disruptions.
Resin reinforcement at cable junctions enhances durability and impact resistance. Easy mounting via M3 screws allows secure chassis integration. Wide ambient temperature range supports operation from -25°C to 55°C. 50 mA maximum current rating for energy efficient performance.
Polybutylene Terephthalate and Polycarbonate housing ensures robust protection.
The PM-Y45 sensor is widely used in industrial automation, electronics manufacturing, packaging, and material handling for applications such as item detection, counting, part validation, and quality control in high-speed production lines.
Compatible with control gear requiring NPN outputs, it seamlessly interfaces with PLCs, microcontrollers, and logic circuits. Standard IEC approvals make it suitable for regulated environments.
Explore more Panasonic Photoelectric Sensors in EnvMart's Sensors category for advanced industrial solutions. Discover industry-leading automation components by Panasonic at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PM-Y45 sensor has a detection range of 6 mm, making it suitable for precise object detection tasks.
This model features an NPN output type, which is compatible with various industrial control systems.
The PM-Y45 sensor has an IP64 rating, providing protection against dust and splash water.
This sensor is designed to detect opaque materials, ensuring reliable sensing performance in various applications.
The maximum operating temperature for the PM-Y45 sensor is 55°C, allowing it to function in a wide range of environments.
It features a chassis mount design, allowing for secure and stable installation using M3 screws.
The sensor utilizes an infrared light source for accurate object detection.
The PM-Y45 sensor can operate in temperatures as low as -25°C, making it suitable for various industrial conditions.
The housing is made of Polybutylene Terephthalate and Polycarbonate, providing robust protection.
This model has a maximum current rating of 50 mA, ensuring energy-efficient performance.
The sensor complies with IEC standards, making it suitable for regulated environments.
It employs a through beam detection method, allowing for accurate sensing of objects passing through the fork gap.
