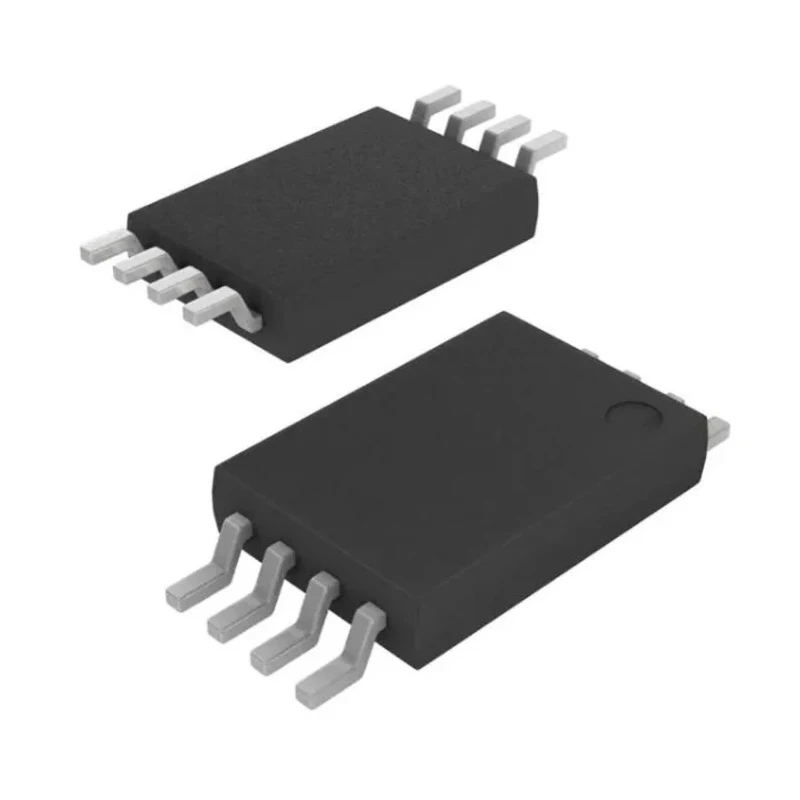

STMicroelectronics Operational Amplifier 1.1 MHz TSSOP-8, 30V, Dual-Channel, Surface Mount LM2904YPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 3.1mm |
| Model | LM2904YPT |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | LM2904 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP-8 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q3, AEC-Q100 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1.1MHz |
| Input Bias Current | 150 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 30 nA |
Key Features
- Features two high-gain op amps in a single package.
- Gain bandwidth product of 1.1 MHz for fast signal amplification.
- Supports wide supply voltage range from 3V to 30V DC.
- Low input bias and offset currents optimize accuracy in precision circuits.
- TSSOP-8 surface mount package for compact design integration.
- Operation guaranteed from -40°C up to 125°C ambient temperature.
- Compliant with RoHS and qualified to automotive AEC-Q100 standard.
- Ideal for industrial controls, automotive systems, and sensor interfaces.
Product Description
The STMicroelectronics LM2904YPT dual operational amplifier delivers reliable amplification for demanding electronic circuits. Housed in a space-saving TSSOP-8 surface-mount package, it integrates two independent, high-gain, frequency-compensated operational amplifiers designed for use in automotive and industrial environments where stability and low noise are essential.
This device provides a unity gain bandwidth of 1.1 MHz and maintains a wide supply voltage range from 3V up to 30V DC, allowing flexible integration into a variety of designs. Its low input bias current (20 nA typ) and low input offset current (2 nA typ) make it particularly suitable for precision applications such as sensor signal conditioning, active filters, and analog signal processing in harsh environments.
The LM2904YPT amplifier is optimized for accuracy and power efficiency, with a low supply current independent of supply voltage and a large DC voltage gain of 100 dB. The input common-mode voltage range includes the negative rail, and the differential input voltage range extends up to the full supply voltage, enabling robust operation even in challenging signal conditions.
Features two high-gain, internally compensated op amps for versatile analog design. 1.1 MHz gain bandwidth product enables fast and accurate signal processing. Surface mount TSSOP-8 package ensures straightforward PCB integration and space saving.
Suitable for automotive control modules, industrial automation, sensor interfaces, and general analog circuits. Wide operating temperature range of -40°C to +125°C for harsh environmental use. Compliant with RoHS and certified to AEC-Q100 standards for automotive reliability.
Low input offset voltage (7 mV max) improves system accuracy. Slew rate of 0.6V/μs supports moderate-speed signal transitions.
Engineers can easily incorporate the LM2904YPT operational amplifier in automotive, industrial control, instrumentation, and consumer electronic products where small size and high performance are required. Typical applications include active filters, voltage followers, analog computation circuits, and signal conditioning modules.
Explore more Operational Amplifiers and analog ICs from STMicroelectronics in the EnvMart semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.1 MHz, allowing for fast signal amplification.
It supports a wide supply voltage range from 3V to 30V DC, making it versatile for various applications.
The maximum operating temperature for this operational amplifier is 125°C, suitable for harsh environments.
This model features two channels, integrating two independent operational amplifiers in a single package.
The dimensions of the TSSOP-8 package are 3.1 mm in length, 4.5 mm in width, and 1.2 mm in height.
The input offset voltage is 7 mV maximum, which helps improve system accuracy in precision applications.
The slew rate of this operational amplifier is 0.6V/μs, supporting moderate-speed signal transitions.
The typical input bias current for the LM2904YPT is 150 nA, optimizing accuracy in precision circuits.
Yes, it is compliant with RoHS and qualified to the automotive AEC-Q100 standard, ensuring reliability in automotive applications.
This operational amplifier is suitable for applications such as automotive control modules, industrial automation, and sensor interfaces.
The output current capability of this model is 40 mA, allowing it to drive various loads effectively.
The minimum operating temperature for this operational amplifier is -40°C, making it suitable for use in extreme environments.
