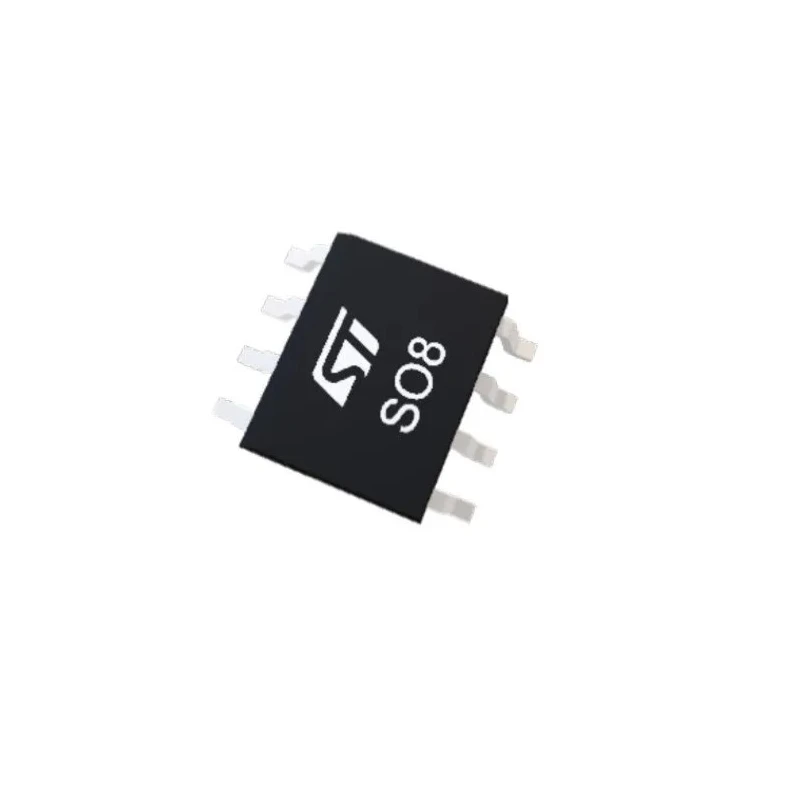

STMicroelectronics Operational Amplifier 22 MHz, 8-Pin SO-8, Surface Mount, 1.8 - 5.5V Dual Channel TSV7722IYDT

STMicroelectronics TSV7722IYDT is a high-performance dual operational amplifier designed for precision amplification in industrial, laboratory, and automotive applications. Featuring a 22 MHz gain bandwidth product and unity gain stability, it is optimized for high-bandwidth sensor interfaces and signal conditioning tasks that require accuracy and speed. The IC comes in a compact 8-pin SO-8 surface-mount package for easy integration onto modern PCBs.

This model delivers low input offset voltage (50 μV typical) and ultra-low input bias current (75 pA), making it ideal for interfacing with sensitive sensors, photodiode circuits, and high-accuracy measurement equipment. Its rail-to-rail output and input common-mode voltage range - including low rail - enable versatile operation and maximum signal range utilization. The TSV7722IYDT operates from a single supply voltage between 1.8V and 5.5V, supporting robust performance in battery-powered devices and power-sensitive installations.

22 MHz gain bandwidth product ensures rapid signal response for demanding analog circuits. Unity gain stable, suitable for input buffer roles in analog-to-digital converter designs. Automotive-grade reliability and ESDA-JS-001-2017 compliance for industrial and automotive electronics.

Dual channel architecture enhances flexibility in multi-channel analog designs. Slew rate: 11 V/μs for high-speed signal processing. Operates within -40°C to +125°C range, accessible in harsh environments. SO-8 package form factor allows space-efficient placement and automated SMD assembly.

Low input bias/offset currents enable direct connection to current-type sensor outputs.

Typical applications include industrial measurement systems, laboratory instrumentation, signal conditioning, automotive electronics, and data acquisition hardware. The robust design and automotive qualifications make the TSV7722IYDT suitable for both commercial and mission-critical tasks where reliability and accuracy matter.
