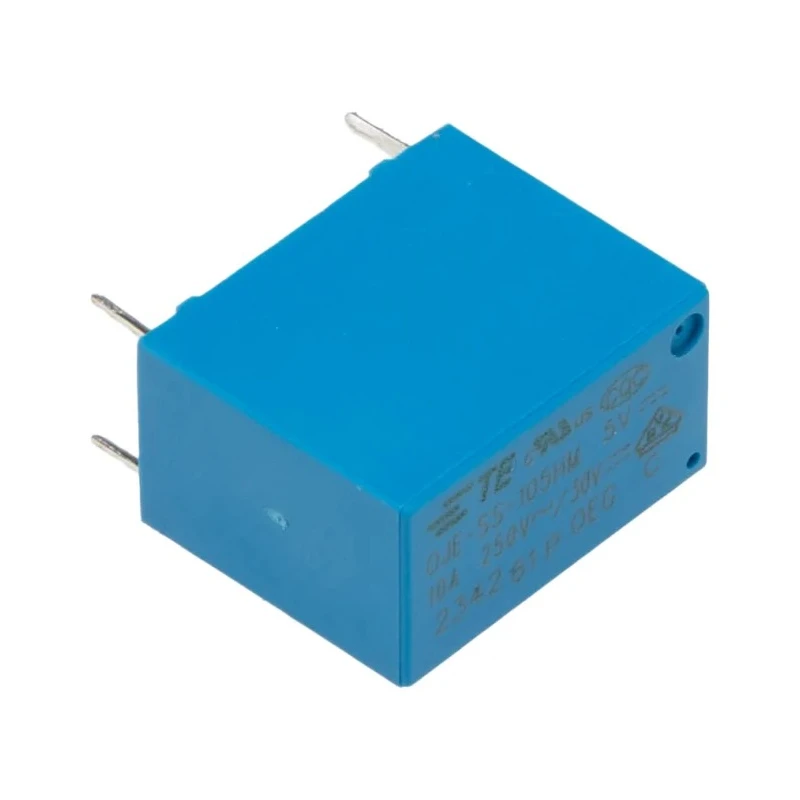

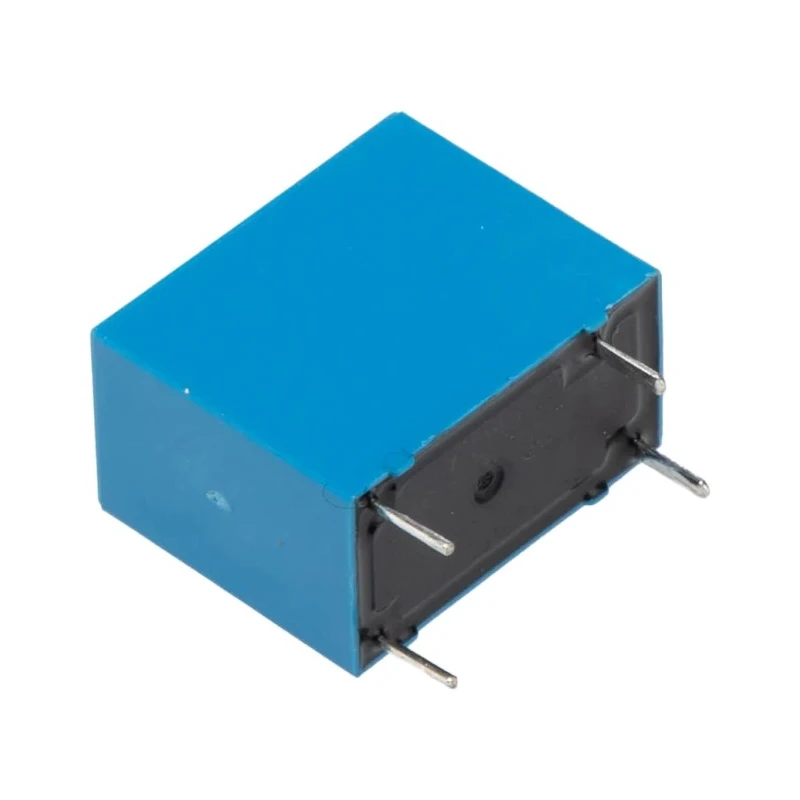

TE Connectivity PCB Power Relay 5V DC Coil 10A SPST OJE-SS-105HM,000

TE Connectivity OJE-SS-105HM,000 PCB Power Relay is engineered for demanding circuit switching applications, integrating a sensitive 5V DC coil and delivering a robust 10A switching current capacity. This relay utilizes SPST (Single Pole Single Throw) contact configuration, which is ideal for straightforward control tasks such as on/off switching of high-current loads in industrial and commercial circuit boards.

Constructed with a slim and compact body, the relay is perfectly suited for dense PCB layouts, measuring just 18.2mm in length, 14.7mm in height, and 10.2mm in width. Standard PCB pin terminals facilitate quick and reliable mounting, ensuring seamless integration into automated assembly lines and prototyping environments.

With a coil resistance of 55.6Ω and coil power requirement of 450mW, this relay achieves sensitive actuation, providing efficient and reliable performance even in low voltage control environments. Reinforced insulation is implemented for enhanced safety, supporting robust operation across an extended temperature range from -30°C to 70°C.

Designed for PCB mounting with standard PCB pin terminals. Features SPST contact configuration for simple switching applications. Rated for 10A switching current, suitable for high-power loads. 5V DC coil voltage enables low voltage triggering.

Compact form factor with dimensions of 18.2mm length, 14.7mm height, and 10.2mm width. Operating temperature range from -30°C to 70°C for industrial environments. RoHS compliant with silver alloy contacts for durability.

Cadmium-free contacts support environmental safety. Reinforced insulation and sensitive coil for reliable operation.

The OJE-SS-105HM,000 power relay is RoHS compliant and utilizes silver alloy contacts, offering extended durability for frequent switching operations. Its cadmium-free contact design supports environmental safety, and the washproof rating (RT III) makes it suitable for use in areas exposed to moisture or cleaning cycles.

Typical applications include industrial automation, HVAC control circuits, commercial power distribution boards, laboratory instrumentation, and signal conditioning systems. With approvals from UL and VDE, it is recognized internationally for quality and reliability.
