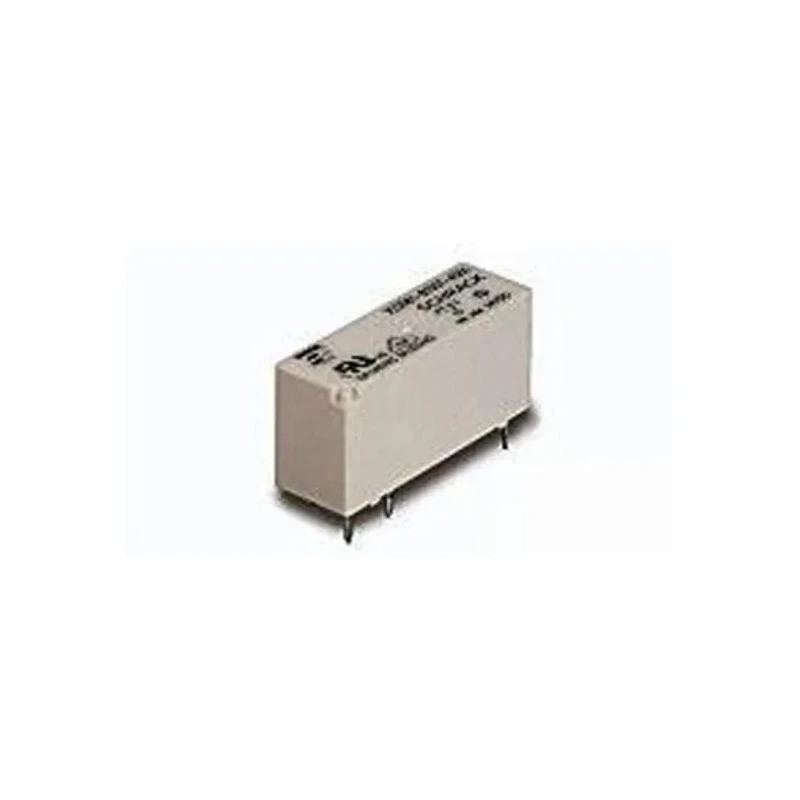

TE Connectivity PCB Power Relay 5V DC Coil, 8A SPST V23061A1002A302
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 28.6mm |
| Model | V23061A1002A302 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | MSR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 118Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 212mW |
Key Features
- Supports 5V DC coil voltage for reliable actuation.
- 8A switching current enables robust control of high-power circuits.
- SPST contact configuration suitable for straightforward switching.
- PCB mount type ensures compact integration with circuit boards.
- Through hole terminal for secure electrical connections.
- Designed to operate within a temperature range of -40°C to 85°C.
- Silver alloy contact material provides improved conductivity and durability.
- RoHS compliant for environmental safety.
Product Description
TE Connectivity V23061A1002A302 PCB Power Relay offers dependable switching performance for industrial, laboratory, and automation applications. The relay features a 5V DC coil voltage and supports a maximum switching current of 8A, making it suitable for controlling high-power loads in single pole single throw (SPST) circuits.
Its PCB mount design and through hole terminals offer secure installation and integration into various electronic assemblies. The relay measures 28.6mm in length, 10mm in width, and 15mm in height, enabling compact placement on printed circuit boards.
Supports 5V DC coil voltage for reliable actuation. 8A switching current enables robust control of high-power circuits. SPST contact configuration suitable for straightforward switching. PCB mount type ensures compact integration with circuit boards.
Through hole terminal for secure electrical connections. Designed to operate within a temperature range of -40°C to 85°C. Silver alloy contact material provides improved conductivity and durability. RoHS compliant for environmental safety.
Country of Origin: Czech Republic.
The V23061A1002A302 relay is part of the MSR Series and features a coil resistance of 118Ω, coil power rating of 212mW, and switching capability up to 400V AC. Applications include telecommunication equipment, optical network terminals, test and measurement devices, medical electronics, automotive control systems, and office automation.
This relay is manufactured using high-quality silver alloy contact material and is compliant with RoHS standards, assuring safe operation and compliance with environmental regulations. Its wide temperature operating range supports demanding industrial environments.
Choose TE Connectivity's PCB Power Relay for reliable, compact, and high-current switching needs in automation, signal conditioning, and electronic control systems. Explore more in the Power Relay category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 8A, allowing it to control high-power loads effectively.
This relay operates with a coil voltage of 5V DC, ensuring reliable actuation.
It features a single pole single throw (SPST) contact configuration, suitable for straightforward switching applications.
The relay measures 28.6mm in length, 10mm in width, and 15mm in height, making it compact for PCB integration.
This model is designed to operate within a temperature range of -40°C to 85°C, suitable for demanding environments.
It utilizes through hole terminals for secure electrical connections during installation.
The coil resistance for this model is 118Ω, which is important for determining its power consumption.
The coil power rating for this relay is 212mW, which indicates the power required for operation.
It can switch up to 400V AC, making it versatile for various applications.
Yes, this model is RoHS compliant, ensuring it meets environmental safety standards.
This relay is suitable for applications in telecommunication equipment, optical network terminals, test and measurement devices, and medical electronics.
The contact material used in this model is silver alloy, which provides improved conductivity and durability.
