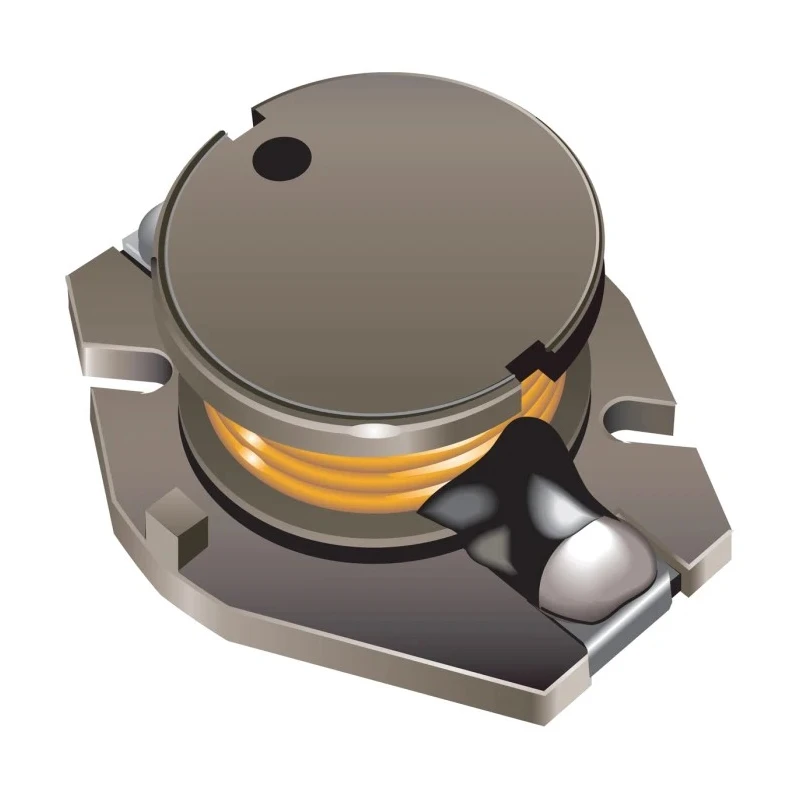

Bourns Wirewound Surface Mount Inductor, 22μH, 2A, 1005, Ferrite Core, Unshielded SDR1005
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 12.7mm |
| Brand | Bourns |
| Height | 5mm |
| Length | 12.7mm |
| Model | SDR1005 |
| Depth | 10mm |
| Packaging | Reel |
| Series | SDR1005 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 1005 |
| Maximum DC Current | 2A |
| Pin Count | 2 |
| Maximum DC Resistance | 100mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 18MHz |
| Minimum Quality Factor | 29 |
| Inductor Construction | Wirewound |
Key Features
- Features a wirewound construction for reliable electromagnetic performance.
- Designed with a ferrite core for enhanced energy storage efficiency.
- Suitable for high-density surface mount applications with a compact 1005 case size.
- Supports a maximum DC current of up to 2A, ideal for power supply circuits.
- Offers 22μH inductance with ±20% tolerance for stable circuit operation.
- Moulded body improves durability and stability in use.
- Rated for -40°C to 125°C operating temperature, supporting diverse environments.
- Maximum self resonant frequency is 18MHz, ensuring broad circuit compatibility.
Product Description
The Bourns SDR1005-220ML is a high-quality wirewound surface mount inductor with a ferrite core, optimized for demanding power electronics applications. With a 22μH inductance and ±20% tolerance, this component ensures efficient energy storage and noise filtering in compact circuits.
Featuring a robust moulded form factor and an unshielded design, the SDR1005-220ML supports a maximum DC current of 2A, making it suitable for use in power supplies, DC/DC converters, and EMI filtering. The device utilizes a ferrite core for low core losses, contributing to circuit efficiency and thermal management.
Its 1005 package enables easy integration into high-density surface mount PCBs, while terminals are configured for solder mounting, supporting automated assembly processes. The inductor's body dimensions (length and diameter of 12.7 mm, height of 5.0 mm, depth of 10.0 mm) enable flexibility in component layouts for modern compact electronics.
Rated for operation from -40°C to 125°C with a maximum DC resistance of 100mΩ, the SDR1005-220ML offers reliable performance in a wide variety of thermal environments. The part exhibits a minimum quality factor of 29 and a maximum self resonant frequency of 18MHz, ensuring broad compatibility with efficient switching power applications.
Automotive standard compliance is not claimed for this part. The SDR1005-220ML is RoHS compliant, supporting environmentally responsible manufacturing. Inductance: 22μH ±20%. Maximum DC current: 2A. Package: 1005, surface mount.
Core material: Ferrite. Unshielded wirewound construction. Maximum DC resistance: 100mΩ. Operating temperature range: -40°C to 125°C. Dimensions: 12.7 x 10 x 5 mm (L x D x H).
Typical applications include input/output filtering in DC/DC converters, energy storage in power supplies, and noise suppression in various consumer, industrial, and communications electronics.
Explore more wirewound Surface Mount Inductors and Bourns electronic components on EnvMart for diverse industrial and power electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 22μH with a tolerance of ±20%.
It supports a maximum DC current of up to 2A, making it suitable for power supply circuits.
The dimensions of this unit are 12.7 mm in length, 10.0 mm in depth, and 5.0 mm in height.
It is rated for operation at temperatures up to 125°C.
The core material is ferrite, which enhances energy storage efficiency.
The maximum self-resonant frequency is 18MHz, ensuring compatibility with various circuits.
It features a wirewound construction that provides reliable electromagnetic performance.
The termination style is solder, allowing for easy integration into PCBs.
The inductor can operate at temperatures as low as -40°C.
The maximum DC resistance is 100mΩ, contributing to its efficiency in circuits.
Yes, the SDR1005-220ML is RoHS compliant, supporting environmentally responsible manufacturing.
Typical applications include input/output filtering in DC/DC converters and noise suppression in various electronics.
