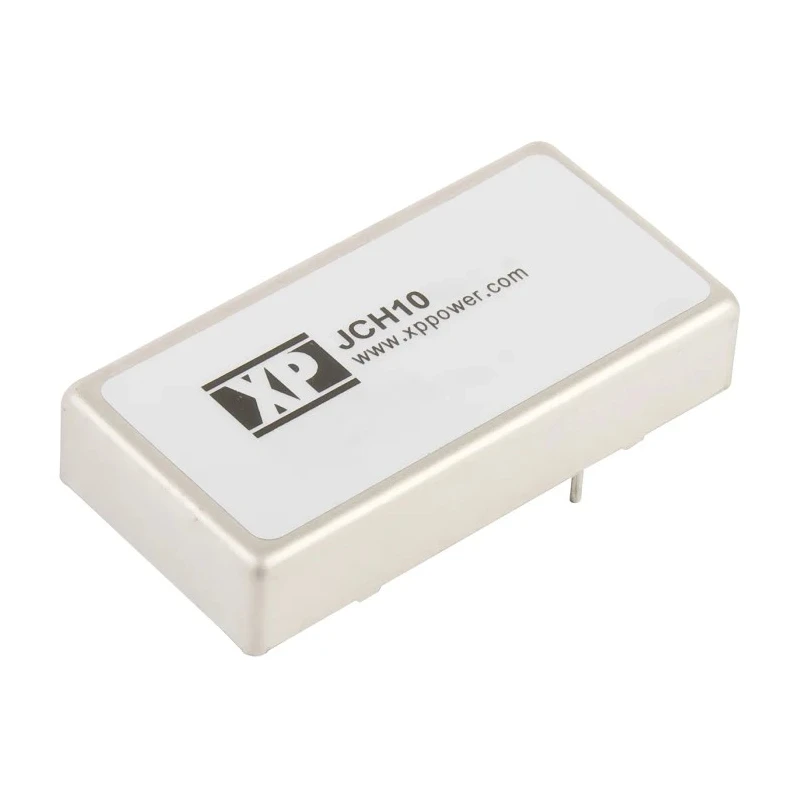

XP Power JCH Series DC/DC Converter 5V DC 2A, 36 - 75V Input, 10W, Through Hole, -40°C to 100°C JCH1048S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCH DC/DC Converter, 5V dc/ 2 A, 75V Inpu |
| Brand | XP Power |
| Efficiency | 83% |
| Length | 50.8mm |
| Model | JCH1048S05 |
| Depth | 10.16mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCH |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 75V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 36V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 2A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides 5V DC output at up to 2A for powering electronic circuits.
- Supports wide 36 - 75V input range suitable for various DC power sources.
- Delivers up to 10W of output power with high 83% efficiency.
- Through-hole mounting in DIP package simplifies board integration.
- Features robust isolation voltage of 1.5kV DC for enhanced safety.
- Operates over -40°C to +100°C, ideal for harsh industrial environments.
- Single-output design with continuous short circuit protection.
Product Description
XP Power JCH1048S05 DC/DC Converter provides a reliable and efficient solution for demanding industrial and electronic applications. Designed for board-mounted use, this converter delivers a regulated 5V DC output at up to 2A from a wide 36 - 75V DC input range, making it suitable for telecom, process control, instrumentation, and other systems requiring robust DC isolation and conversion.
The unit's 10W power capacity and high 83% efficiency minimize energy loss and thermal buildup, supporting performance and longevity in continuous operation. It incorporates a through-hole DIP package for easy integration onto PCBs and features a compact footprint of 50.8mm by 25.4mm by 10.16mm, facilitating installation even in space-constrained designs.
Safety and reliability are ensured by a 1.5kV DC isolation voltage and continuous short-circuit protection, safeguarding sensitive circuits and operators. The converter is convection-cooled, requiring no fans or forced air, and maintains stable operation across challenging environments, withstanding temperatures from -40°C to +100°C as needed in industrial, laboratory, and commercial projects.
The JCH Series from XP Power is RoHS-compliant, supporting environmentally conscious design requirements. With an MTBF of 1,100,000 hours, this converter offers exceptional service life for critical electronic infrastructure and automation applications.
Provides 5V DC output at up to 2A for powering electronic circuits. Supports wide 36 - 75V input range suitable for various DC power sources. Delivers up to 10W of output power with high 83% efficiency. Through-hole mounting in DIP package simplifies board integration.
Features robust isolation voltage of 1.5kV DC for enhanced safety. Operates over -40°C to +100°C, ideal for harsh industrial environments. Single-output design with continuous short circuit protection. Compact form factor: 50.8mm x 25.4mm x 10.16mm (LxWxD).
Typical applications include telecommunications infrastructure, factory automation, test equipment, and other demanding industrial and electronics projects requiring robust power conversion and isolation. Discover more DC Converter solutions from XP Power and browse related products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a wide input voltage range of 36V to 75V DC.
It delivers a regulated output of 5V DC at a maximum current of 2A.
The maximum output power is 10W.
It has a high efficiency rating of 83%.
The dimensions are 50.8mm in length, 25.4mm in width, and 10.16mm in depth.
It features through-hole mounting in a DIP package, simplifying board integration.
It operates over a temperature range of -40°C to +100°C, suitable for harsh environments.
This model features a robust isolation voltage of 1.5kV DC for enhanced safety.
Typical applications include telecommunications infrastructure, factory automation, and test equipment.
It has a single-output design.
The MTBF is rated at 1,100,000 hours, indicating exceptional service life.
Yes, it is RoHS compliant, supporting environmentally conscious design requirements.
