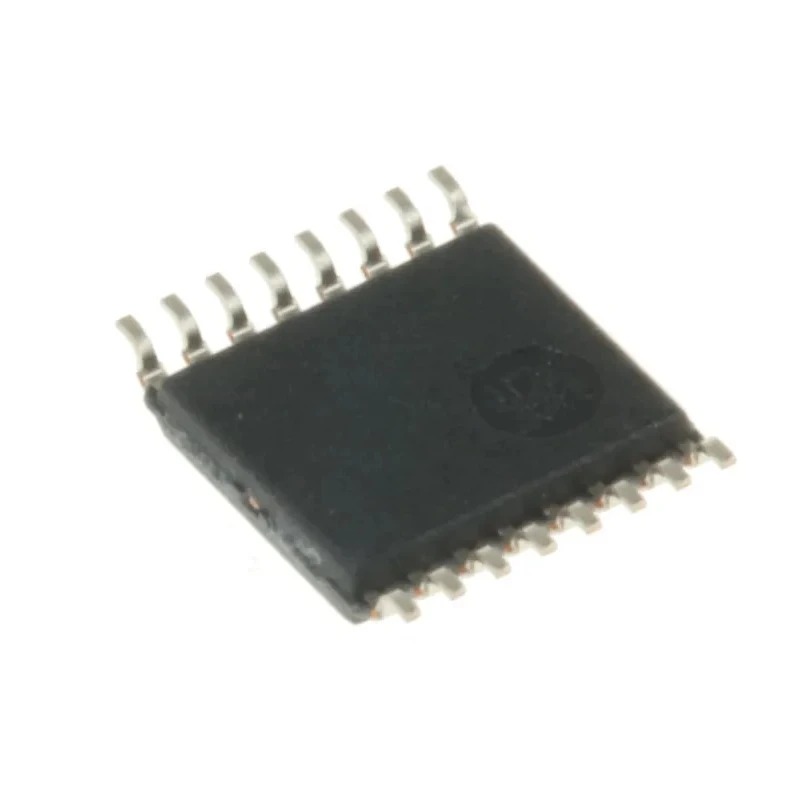

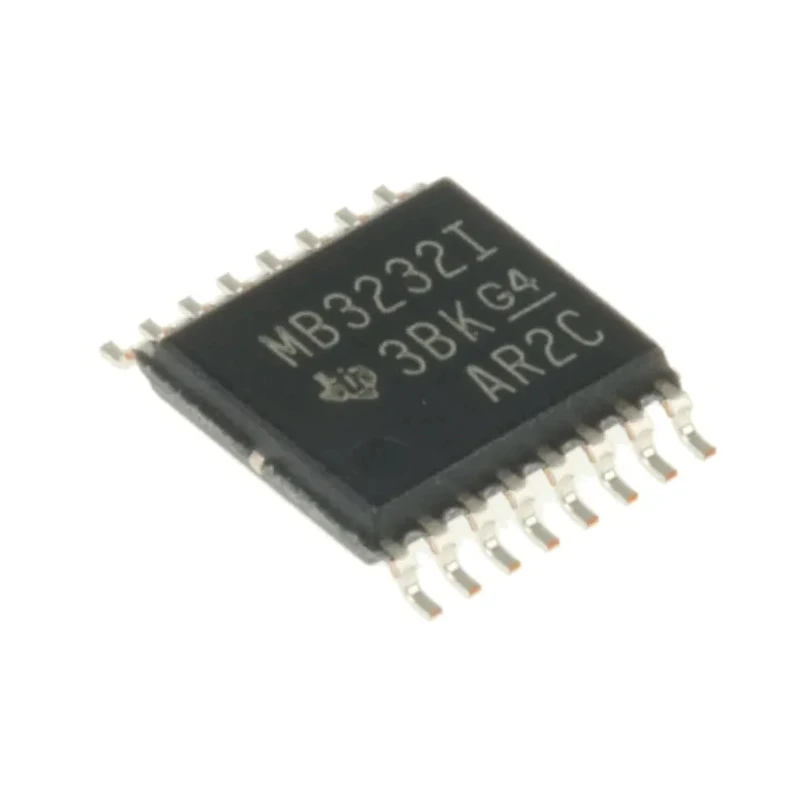

Texas Instruments Line Transceiver, Driver & Receiver, 16-Pin TSSOP, Surface Mount, MAX3232IPW
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | MAX3232IPW |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | MAX3232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 300μs |
| Supply Current | 1mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Designed for RS-232 serial communication applications.
- Operates with a supply voltage from 3V to 5.5V for compatibility with a range of digital systems.
- Features dual drivers and dual receivers supporting reliable data transmission.
- Single-ended input type suitable for standard line interface requirements.
- Provides robust ESD protection up to ±15 kV (Human-Body Model).
- Comes in a compact 16-pin TSSOP surface mount package for ease of PCB assembly.
- Offers low supply current operation at 1mA, contributing to efficient design.
- Operates within a wide temperature range from -40°C to +85°C for demanding environments.
Product Description
Texas Instruments MAX3232IPW is a high-performance RS-232 line transceiver featuring dual driver and receiver capabilities, making it ideal for a wide array of serial communication requirements. The device is provided in a compact 16-pin TSSOP surface mount package, ensuring straightforward integration onto modern PCBs.
Designed to fully meet or exceed TIA/EIA-232-F and ITU v.28 standards, the MAX3232IPW is often selected for robust digital interface solutions, including industrial automation, instrumentation, embedded electronics, and laboratory equipment. Its dual transceiver architecture enables direct transmission and reception of RS-232 signals, supporting baud rates and protocol requirements typically seen in demanding environments.
With a supply voltage range of 3V to 5.5V, it is compatible with both low-voltage and standard digital systems. The device offers single-ended input types and operates at a low supply current of only 1mA, supporting energy-efficient designs.
Dual drivers and receivers for RS-232 line communications. ESD protection up to ±15 kV (Human-Body Model), ensuring rugged operation. Compact 16-pin TSSOP package for space-conscious electronics design. Maximum propagation delay time of 300μs, enabling reliable signal transfer.
Wide operating temperature range from -40°C to +85°C. Surface mount type suitable for automated assembly and mass production. Low power consumption and high output current capability. Ideal for embedded systems, commercial, laboratory, and industrial applications.
Applications include device interfacing in automation, communication signals conversion, data acquisition systems, laboratory instruments, and commercial equipment where stable RS-232 communication is essential.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range from 3V to 5.5V, making it compatible with various digital systems.
The maximum operating temperature for the MAX3232IPW is 85°C, suitable for demanding environments.
This model features a 16-pin configuration, allowing for compact integration into electronic designs.
It supports a single-ended input type, which is suitable for standard line interface requirements.
The maximum propagation delay time is 300μs, ensuring reliable signal transfer.
The dimensions are 5.1mm in length, 4.5mm in width, and 1.2mm in height.
It is designed for surface mount applications, facilitating ease of PCB assembly.
It provides robust ESD protection up to ±15 kV according to the Human-Body Model, ensuring rugged operation.
The supply current is only 1mA, contributing to energy-efficient designs.
It is suitable for applications such as device interfacing in automation, data acquisition systems, and laboratory instruments.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
