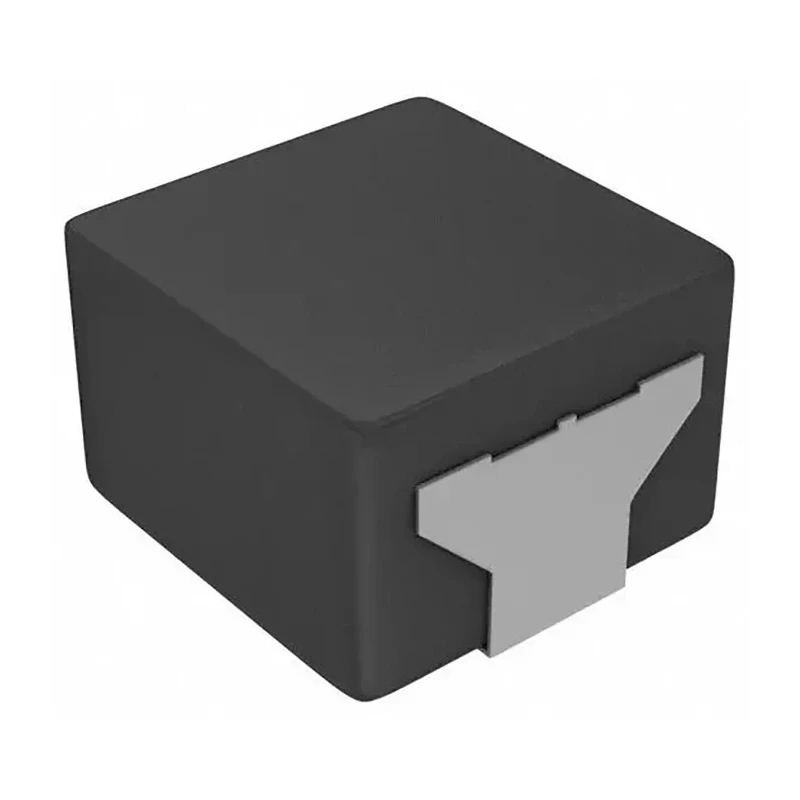

Panasonic Surface Mount Inductor, Metal Composite Core, 3.3μH, ±20/±10%, 5.4A, 0530 Package ETQP3M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 3mm |
| Length | 5.5mm |
| Model | ETQP3M |
| Depth | 5mm |
| Packaging | Embossed Carrier Tape |
| Series | ETQP3M |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 3.3μH |
| Standards/Approvals | RoHS |
| Package/Case | 0530 |
| Maximum DC Current | 5.4A |
| Maximum DC Resistance | 26.3mΩ |
| Inductance Tolerance | ±20/±10 % |
| Termination Style | Surface Mount |
| Inductor Construction | Integral Construction |
| Automotive Standard | AEC-Q200 |
Key Features
- Inductance of 3.3μH for stable performance in power circuitry.
- Maximum DC current handling of 5.4A suitable for automotive and industrial electronics.
- Metal composite core provides high heat resistance and low eddy-current losses.
- Integral construction delivers high vibration resistance and durability.
- Complies with AEC-Q200 automotive standard for assured reliability.
- Operating temperature range from -55°C up to 155°C.
- 0530 surface mount package allows compact PCB integration.
- Embossed carrier tape packaging for optimized production handling.
Product Description
Panasonic ETQP3M3R3KVP Surface Mount Inductor brings reliability and advanced metal composite core technology to automotive and industrial electronics. With 3.3μH inductance and a ±20/±10% tolerance, this inductor offers precise and stable operation in DC/DC converters, noise filters, and power choke applications.
The ETQP3M series is engineered with a low profile 0530 package, measuring 5.5mm in length, 3mm in height, and 5mm in depth. Its embedded metal composite core minimizes eddy-current loss and maximizes bias current capability - enabling high efficiency even under severe operating temperatures up to 155°C.
Integral construction and surface mount termination style provide robust vibration resistance and mechanical reliability. This unit is qualified under the AEC-Q200 automotive standard and is suitable as a noise filter or for high current peak handling in drive circuitry.
Inductance of 3.3μH for stable and efficient electromagnetic performance. 5.4A maximum DC current guaranteeing support for high-power circuits. Precision core material - metal composite for enhanced heat resistance. Wide operating range from -55°C to 155°C for superior temperature resilience.
Low DC resistance (26.3mΩ) reduces energy losses in applications. RoHS compliant for eco-friendly manufacturing. Embossed carrier tape packaging provides reliable automated handling.
This Panasonic ETQP3M3R3KVP inductor is recommended for automotive, industrial, and commercial electronics. Common usage includes DC/DC buck and boost converters, noise filters, and drive circuitry requiring high robustness in harsh and high-temperature environments.
Explore more Surface Mount Inductors and Panasonic electronic components at EnvMart to optimize your power and signal designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 3.3μH, providing stable performance in power circuitry applications.
It can handle a maximum DC current of 5.4A, making it suitable for high-power circuits.
This unit has dimensions of 5.5mm in length, 3mm in height, and 5mm in depth.
The operating temperature range is from -55°C to 155°C, allowing it to function effectively in extreme conditions.
It features a metal composite core, which provides high heat resistance and minimizes eddy-current losses.
It is packaged in embossed carrier tape, which optimizes production handling.
Yes, it complies with the AEC-Q200 automotive standard, ensuring reliability in automotive applications.
The inductance tolerance is ±20/±10%, allowing for precise operation in various applications.
This unit uses a surface mount termination style, suitable for compact PCB integration.
Common applications include DC/DC converters, noise filters, and drive circuitry in automotive and industrial electronics.
The maximum DC resistance is 26.3mΩ, which helps reduce energy losses in applications.
The country of origin for this model is Japan.
