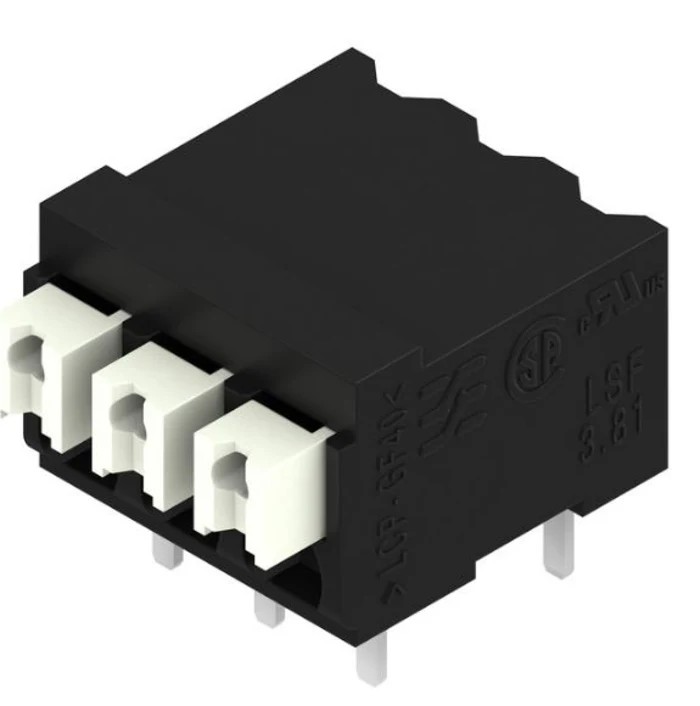

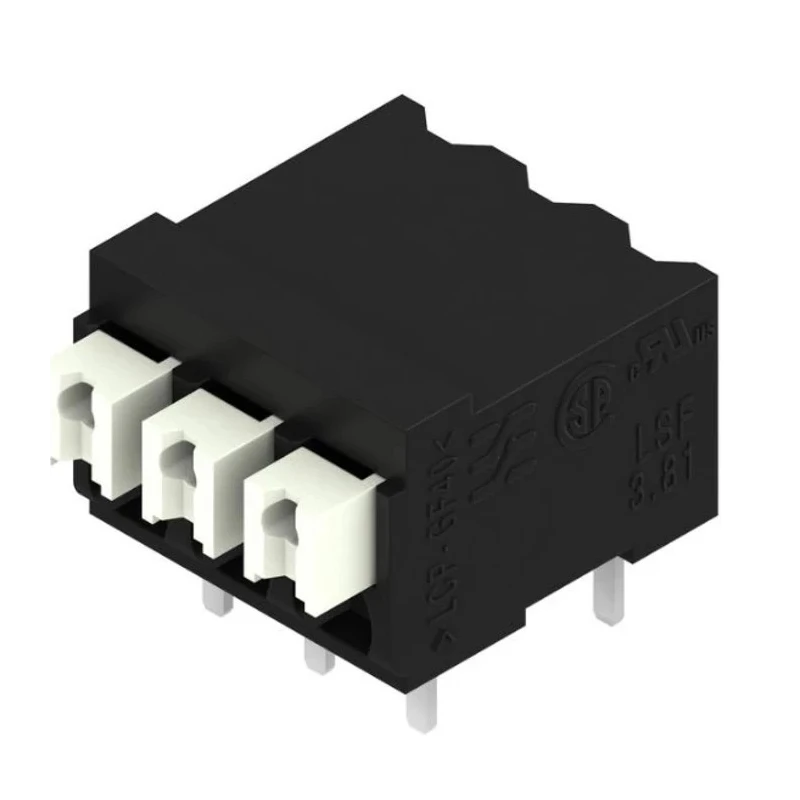

Weidmüller LSF Series PCB Terminal Block, 3 Contacts, 3.81 mm Pitch, 1 Row, Push-in, 1824630000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | 90° |
| Current | 17.5A |
| Depth | 14.75mm |
| Width | 11.82mm |
| Housing Material | Liquid Crystal Polymer Fibreglass |
| Series | LSF |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Standards/Approvals | RoHS conform |
| Number of Contacts | 3 |
| Minimum Wire Size mm² | 2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Push-in |
Key Features
- Features a 3-position configuration with a single row layout.
- 3.81 mm pitch ensures secure and consistent connections for PCB layouts.
- Push-in wire connection method allows tool-free installation and easy wire release.
- Rated for 17.5 A current and 320 V, suitable for demanding electronic environments.
- Supports a wire size range from 28 AWG to 14 AWG (0.14 mm² to 2 mm²).
- Constructed with black liquid crystal polymer fibreglass housing for high durability.
- Compact design with a 90° orientation, 14.75 mm depth, and 11.82 mm width.
- RoHS compliant and ideal for automated SMT processes.
Product Description
The Weidmüller 1824630000 PCB Terminal Block is part of the renowned LSF Series, engineered for precise, robust, and flexible PCB interconnections in industrial and electronic applications. This terminal block is designed with three contact positions and a single row configuration. Its compact 3.81 mm pitch supports high-density PCB layouts, maximizing board real estate and enhancing project efficiency.
This terminal block employs a push-in wire connection system, enabling quick, tool-free attachment and detachment of solid or ferruled wires. The design ensures consistency and security for every connection, with marked potentials and clamping points via colored push-buttons - for both user convenience and safety.
Reliable performance with 17.5 A rated current and 320 V voltage capacity. Handles a wide wire size spectrum: 28 AWG to 14 AWG, accommodating diverse application needs. Engineered from liquid crystal polymer fibreglass for enhanced strength and resistance to harsh industrial environments.
90° orientation and compact dimensions (14.75 mm depth, 11.82 mm width) allow for efficient PCB space utilization. Fully compliant with RoHS standards for eco-friendly and safe manufacturing.
Ideal for use in industrial automation, instrumentation, power distribution, and various manufacturing electronics requiring pluggable, secure terminations. Its compatibility with automated reflow soldering processes and application-oriented connection technologies allows seamless integration into modern production lines, supporting both small to large assemblies.
Used across electronics manufacturing, control panels, and laboratory setups, the Weidmüller LSF Series PCB Terminal Block offers dependable connectivity where reliability and safety are paramount.
Explore more products in the PCB Terminal Block category or browse Weidmüller solutions for your industrial and electronics needs with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 17.5 A and a voltage of 320 V, making it suitable for demanding electronic environments.
This terminal block supports a wire size range from 28 AWG to 14 AWG, which corresponds to 0.14 mm² to 2 mm².
The pitch size of this terminal block is 3.81 mm, which allows for high-density PCB layouts.
It employs a push-in wire connection method, allowing for tool-free installation and easy wire release.
The terminal block has a depth of 14.75 mm and a width of 11.82 mm, with a 90° orientation for efficient PCB space utilization.
The housing is constructed from liquid crystal polymer fibreglass, providing enhanced strength and resistance to harsh environments.
Yes, it is fully compliant with RoHS standards, ensuring eco-friendly and safe manufacturing.
It is ideal for industrial automation, instrumentation, power distribution, and various manufacturing electronics requiring secure terminations.
This model features three contact positions in a single row configuration.
The terminal block is designed with a 90° orientation, which helps in efficient PCB layout.
It meets RoHS compliance standards, ensuring it adheres to environmental safety regulations.
This terminal block is part of the Weidmüller LSF Series, known for its robust and flexible PCB interconnections.
