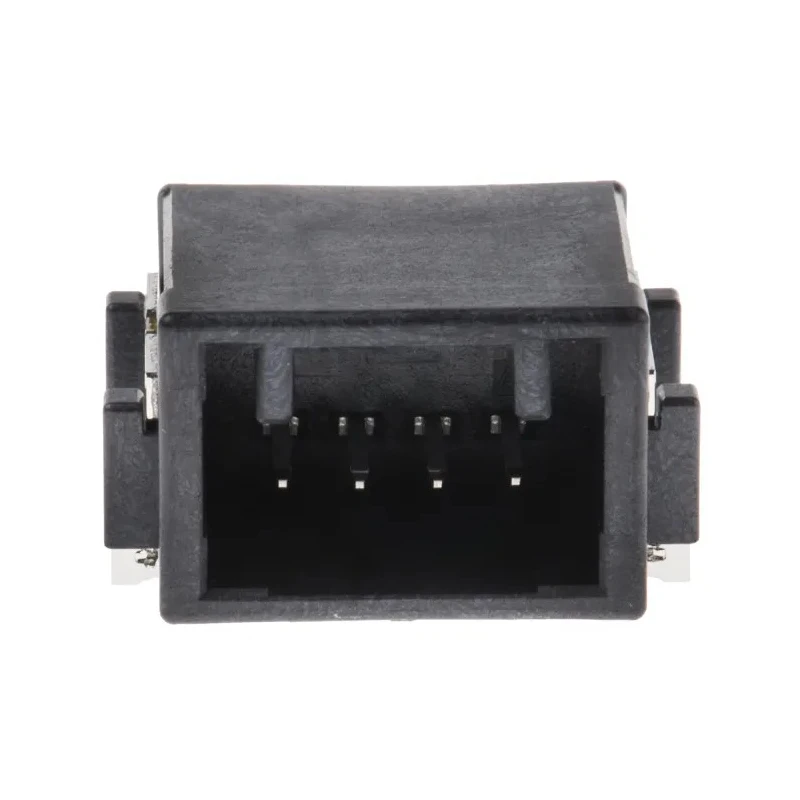

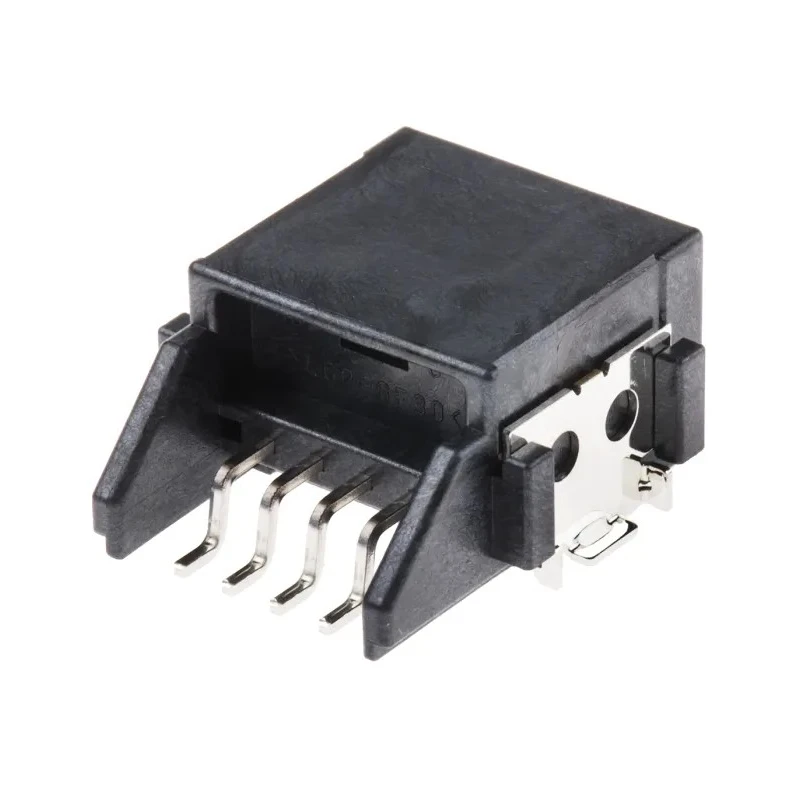

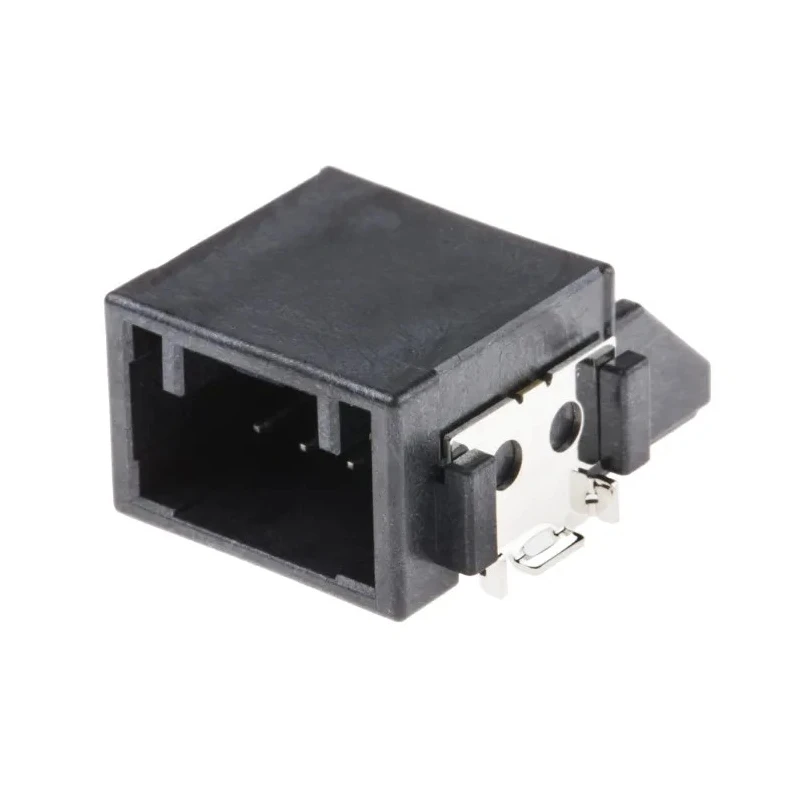

JST HCH Automotive Connector Male Black Through Hole 4 Way Solder Termination SM04B-HCHK-TB(LF)(SN)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Colour | Black |
| Current | 5A |
| Height | 10.9mm |
| Model | SM04B-HCHK-TB(LF)(SN) |
| Depth | 21.8mm |
| Width | 19.6mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Liquid Crystal Polymer |
| Contact Material | Brass |
| Series | HCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 120°C |
| Sub Type | HCH Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | RoHS |
| Contact Plating | Nickel over Tin |
| Number of Contacts | 4 |
Key Features
- Designed for PCB mounting in automotive electrical applications.
- Features a miniaturised and low profile surface mount design.
- Provides secure and reliable wire to board connection with reinforcing tab.
- Suitable for high vibration conditions and harsh automotive environments.
- Accommodates 4 contacts with a current rating of up to 5A.
- Operating temperature range from -40°C to 120°C for wide application suitability.
- Black glass-filled liquid crystal polymer housing ensures durability.
- Brass contacts with nickel over tin plating deliver consistent conductivity.
Product Description
The JST SM04B-HCHK-TB(LF)(SN) is a male HCH automotive connector, engineered for through-hole mounting on PCBs in automotive electrical systems. This connector supports four solder terminations, making it ideal for compact and low-profile wire-to-board connections commonly required in vehicles and related equipment.
Its design incorporates a reinforcing tab to ensure a secure connection, especially in high-vibration environments typical of automotive applications. The 2.54 mm pitch header is devised for mating with JST HCH series female housings, providing flexible system integration. Black glass-filled liquid crystal polymer is used for the housing material, providing enhanced mechanical strength and resistance to heat.
The connector utilizes brass contacts plated with nickel over tin for reliable conductivity and corrosion resistance. With a maximum current rating of 5A and operation at temperatures from -40°C to 120°C, this connector is suitable for demanding conditions.
It offers a compact footprint with dimensions of 10.9 mm height, 21.8 mm depth, and 19.6 mm width. Through-hole mounting and solder termination simplify installation in production environments.
With RoHS compliance, this connector meets current electronic safety and environmental standards. The HCH series is widely used in automobile wire harnesses, control units, and other systems requiring rugged and reliable electrical connectors.
Common applications include automotive PCB wire connections, instrumentation panels, electronic control modules, and other automotive electrical equipment. The miniaturised design caters to modern, space-constrained electronics in vehicles.
Browse more JST Automotive Connectors in the EnvMart Electronics & Electricals category for comprehensive system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector is 5A.
This model operates within a temperature range of -40°C to 120°C.
It uses through-hole mounting for installation on PCBs.
The housing is made from black glass-filled liquid crystal polymer, providing enhanced mechanical strength.
This connector accommodates 4 contacts.
The dimensions of this connector are 10.9 mm in height, 21.8 mm in depth, and 19.6 mm in width.
It features solder terminations for secure connections.
Yes, this connector is RoHS compliant, meeting current electronic safety and environmental standards.
It is suitable for automotive PCB wire connections, instrumentation panels, and electronic control modules.
The contacts are made of brass and are plated with nickel over tin for reliable conductivity.
The connector includes a reinforcing tab to ensure a secure connection, making it suitable for high-vibration conditions.
This connector belongs to the HCH series, designed for automotive applications.
