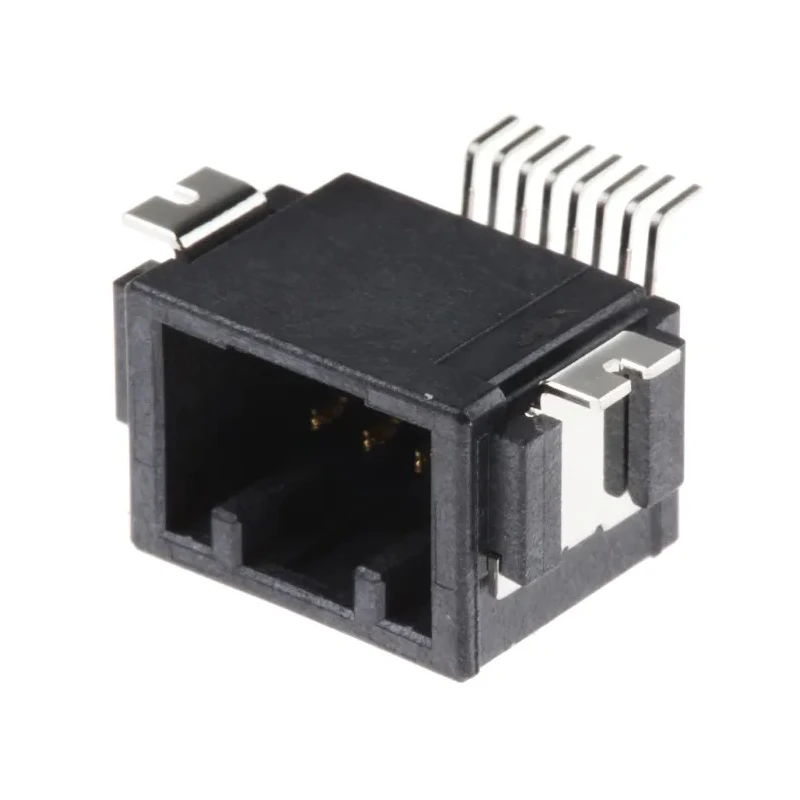

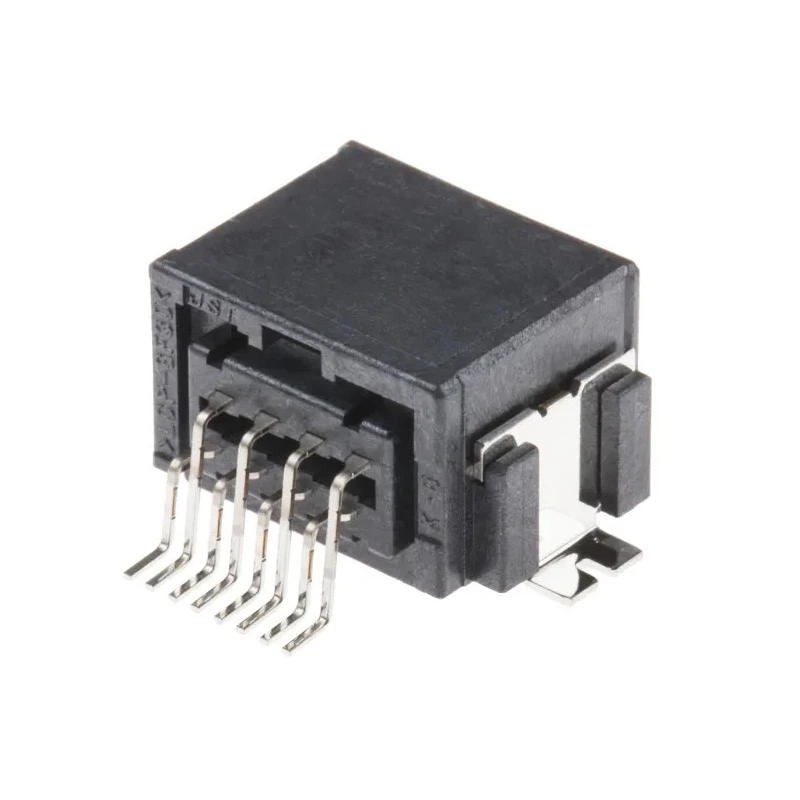

JST CPT Automotive Connector Male Black Surface Mount, 8 Way Solder Termination SM08B-CPTK-1A-TB
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Colour | Black |
| Current | 3A |
| Height | 9.3mm |
| Model | SM08B-CPTK-1A-TB |
| Depth | 10.6mm |
| Width | 15.6mm |
| Gender | Male |
| Mount Type | Surface |
| Housing Material | Glass Filled Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | CPT |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Sub Type | CPT Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 8 |
Key Features
- Designed for miniaturised, low-profile wire-to-board PCB connections in automotive applications.
- Features 8 solder termination contacts for reliable connectivity.
- Male connector with surface mount type for robust installation.
- CPT series ensures high reliability in automotive electrical equipment.
- Withstands wide operating temperatures from -40°C to 100°C.
- Black glass-filled liquid crystal polymer housing offers durability and electrical insulation.
- Gold over nickel plated copper alloy contacts for superior electrical performance.
- RoHS compliant for environmental safety.
Product Description
The JST SM08B-CPTK-1A-TB is an automotive connector from the CPT series, specifically designed for high-density, miniaturised, low-profile wire-to-board PCB connections. It features 8 solder termination contacts and is suitable for robust automotive applications requiring reliable signal and power transmission.
This male connector utilises a surface mount installation, providing ease of integration into compact circuit layouts. The housing is composed of a black glass-filled liquid crystal polymer, offering advanced mechanical strength, superior electrical insulation, and resistance to automotive environmental stresses.
The SM08B-CPTK-1A-TB features gold over nickel plated copper alloy contacts, ensuring long-term corrosion resistance, stable electrical conductivity, and compatibility with demanding automotive electrical systems. The connector is RoHS compliant, aligning with industry standards for environmental safety and regulated material content.
Designed for both single and double circuit variants, the CPT automotive connector range ensures high reliability, ruggedness, and consistent electrical performance across automotive and industrial use cases. Its compact footprint (width 15.6 mm, height 9.3 mm, depth 10.6 mm) makes it ideal for space-restricted environments and modern automotive PCB designs.
The product operates reliably at temperatures ranging from -40°C to 100°C, enabling it to perform effectively in harsh automotive conditions. Applicable for electronic control units, sensor interfaces, and general automotive wiring harnesses, the connector supports versatile wire-to-board connections throughout vehicle electrical architecture.
The SM08B-CPTK-1A-TB is suitable for a wide range of automotive and industrial applications, including vehicle wiring, control modules, instrumentation, and smart sensor integration. Its surface mount feature facilitates automated assembly, improving production efficiency and system reliability.
Browse full Automotive Connector solutions and technical products in the Electronics & Electricals > Electronics Components category, and discover more JST connectors for diverse automotive and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JST SM08B-CPTK-1A-TB automotive connector has a maximum current rating of 3A.
This model has a width of 15.6 mm, a height of 9.3 mm, and a depth of 10.6 mm.
It features a solder termination type for reliable connectivity in applications.
The connector operates reliably within a temperature range of -40°C to 100°C.
The housing is made from black glass-filled liquid crystal polymer, providing electrical insulation and mechanical strength.
This automotive connector features 8 solder termination contacts.
Yes, the JST SM08B-CPTK-1A-TB is RoHS compliant, ensuring it meets environmental safety standards.
It supports surface mount installation, making it suitable for compact circuit layouts.
The contacts are made of copper alloy, plated with gold over nickel for enhanced electrical performance.
It is applicable for electronic control units, sensor interfaces, and general automotive wiring harnesses.
This connector belongs to the CPT series, designed for high-density, miniaturised wire-to-board connections.
This connector is a male type, suitable for various automotive applications.
