XP Power Switching Power Supply 24V DC 130W Chassis Mount ECS130US24

Free Delivery in India | Lowest Global Shipping Charges

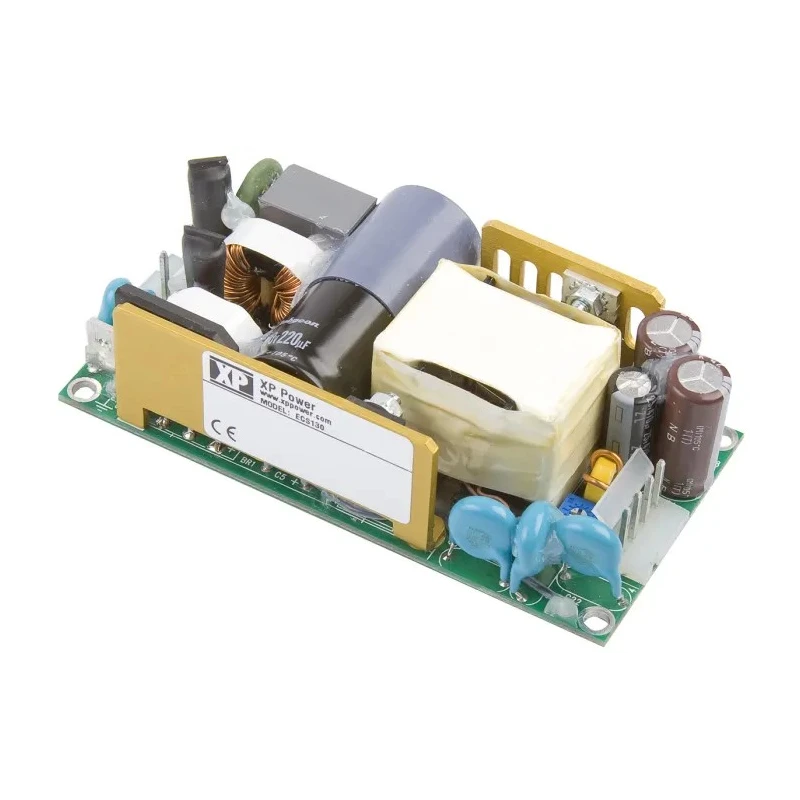

XP Power Switching Power Supply 24V DC 130W Chassis Mount ECS130US24

Name: XP Power Switching Power Supply 24V DC 130W Chassis Mount ECS130US24
Brand: XP Power
SKU: 88349



Category Switching Power Supplies Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Power	130W
Efficiency	90%
Length	101.6mm
Model	ECS130US24
Depth	28.7mm
Gross Weight	175g
Width	50.8mm
Mount Type	Chassis
Construction	Open Frame
Series	ECS
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	24V dc
SMPS Output Current	5.4A
Minimum Input Voltage	120, 80V dc

Key Features

Delivers 24V DC output with a maximum power of 130W.
Features a single output and is designed for chassis mounting.
Highly efficient operation with up to 90% efficiency.
Wide input voltage range from 120V to 264V AC and 80V to 120V DC.
Compact open frame design with convection cooling, suitable for industrial and medical environments.
Supports operation in a temperature range from -20°C to 70°C.
Complies with IT and medical safety standards and approvals.
Low leakage current and less than 0.5W no-load input power.

Product Description

The XP Power ECS130US24 is a robust switching power supply specifically engineered for demanding industrial and medical environments. Featuring an output of 24V DC and a maximum power capacity of 130W, this model is part of the ECS130 series, known for its reliability and compact size. The unit is designed with a single output channel and accommodates chassis mounting, making it a fitting choice for fixed installations requiring stable, regulated DC power from an AC or DC source.

With a wide input range that covers 120V to 264V AC and 80V to 120V DC, the ECS130US24 provides flexibility for deployment in regions with varying supply standards. The power supply boasts an efficiency rating of 90%, reducing heat generation and supporting energy-conscious operations. Its advanced convection cooling permits operational temperatures from -20°C to 70°C, ensuring performance in challenging environments without the need for forced cooling.

The compact dimensions, with a length of 101.6mm, width of 50.8mm, and depth of 28.7mm, enable integration into equipment with limited space. The gross weight of only 175g makes handling and assembly straightforward. The unit’s low leakage current and minimal no-load power consumption (below 0.5W) make it ideal for sensitive medical devices and IT systems, supporting compliance with international low-power and safety standards.

The ECS130US24 meets rigorous certifications such as ANSI/AMMI ES 60601-1, UL 60950-1, TUV EN 60950-1, TUV 60601-1, IEC 60950-1 CB, IEC 60601-1 CB, EN 61204-3, multiple EN 61000 compliance standards, CSA 22.2 No. 60950-1, and CSA 22.2 No. 60601-1. It is designed for both IT and medical-grade installations, guaranteeing safe use and regulatory acceptance across a broad range of equipment.

Applications span industrial automation systems, embedded electronics, diagnostic medical devices, instrumentation, laboratory systems, communications infrastructure, and other professional environments requiring dependable power supplies. The class I and class II construction options further diversify its applicability across various safety regimes.

This power supply epitomizes reliability and compact power delivery, ensuring stable output for sensitive electronics and compliance-driven industries. For more industrial and medical-grade power solutions, explore other products in the Switching Power Supplies category or XP Power’s complete portfolio.
