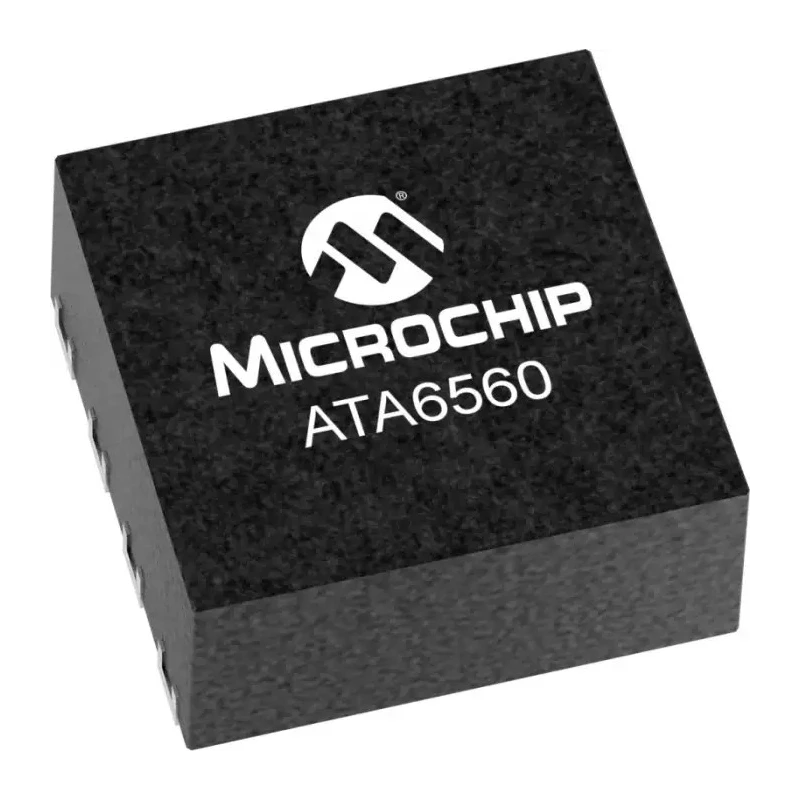

Microchip CAN Transceiver 5 Mbps 8-Pin High-Speed Interface ATA6560-GBQW-N

Free Delivery in India | Lowest Global Shipping Charges

Microchip CAN Transceiver 5 Mbps 8-Pin High-Speed Interface ATA6560-GBQW-N

Name: Microchip CAN Transceiver 5 Mbps 8-Pin High-Speed Interface ATA6560-GBQW-N
Brand: Microchip
SKU: 192948
Price: 0.81 USD
Availability: InStock



Category CAN Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Model	ATA6560-GBQW-N
Series	ATA6560
Maximum Operating Temperature	150°C
Sub Type	CAN Transceiver
Minimum Operating Temperature	-40°C
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Supply Current	5mA
Maximum Data Rate	5Mbps
Number of Transceivers	1
ATA6560	Silent Mode (Receive Only)

Key Features

Supports up to 5 Mbps data rate for high-speed CAN networks.
Designed for automotive industry with robust ESD and transient protection.
Features low electromagnetic emission and high immunity for reliable communication.
Includes standby power down mode and remote wake-up via CAN bus.
Operates over a wide temperature range from -40°C to 150°C.
Compliant with ISO 11898-2, ISO 11898-5, and SAE J2284 standards.
Offers differential transmit and receive capability for improved signal integrity.
Under-voltage detection on VCC and VIO pins enhances operational safety.

Product Description

Microchip ATA6560-GBQW-N is a high-speed CAN transceiver designed for interfacing between a CAN protocol controller and the two-wire physical CAN bus. It supports communication speeds up to 5 Mbps and is delivered in an 8-pin package tailored for automotive applications. This transceiver offers enhanced Electrostatic Discharge (ESD) protection and electromagnetic compatibility (EMC), ensuring robust and reliable data transmission in harsh environments.

The device is fully compliant with ISO 11898-2, ISO 11898-5, and SAE J2284 automotive standards and is CAN FD ready. It features a differential receiver with a wide common-mode range, providing stable communication performance under varying conditions. The ATA6560 includes functionalities such as silent mode for receive-only operation, remote wake-up via the CAN bus, and power down mode to reduce supply current during standby.

Additional protective features include under-voltage detection on supply pins, bus pin transient protection against automotive environmental surges, short-circuit and over-temperature protection on CAN lines, and a dominant time-out function on transmit data signals. These safety features enhance durability and prevent faults in the CAN network.

Maximum data rate of 5 Mbps for high-speed CAN communication. Single transceiver in an 8-pin package for space-efficient design. Supply current of 5 mA ensures efficient power consumption. Operates reliably between 4.5 V and 5.5 V supply voltage.

Operating temperature range from -40°C to 150°C suitable for automotive environments. ESD protection and low electromagnetic emission for stable operation. Silent mode allows receive-only operation for specific use cases.

Compliance with major automotive CAN standards ensures compatibility. Built-in protection against short circuits and over-temperature conditions. Ideal for industrial, automotive, and embedded networking applications.

This CAN transceiver is highly suitable for automotive networking systems, industrial control networks, and other high-speed communication applications requiring robust and compliant interface ICs. It supports efficient and stable data transmission, minimizing electromagnetic interference while providing enhanced safety features for harsh environments.

Explore more semiconductor interface ICs and CAN transceivers in EnvMart for your industrial and automotive electronics projects.

Explore more products in our CAN Interface ICs category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business
