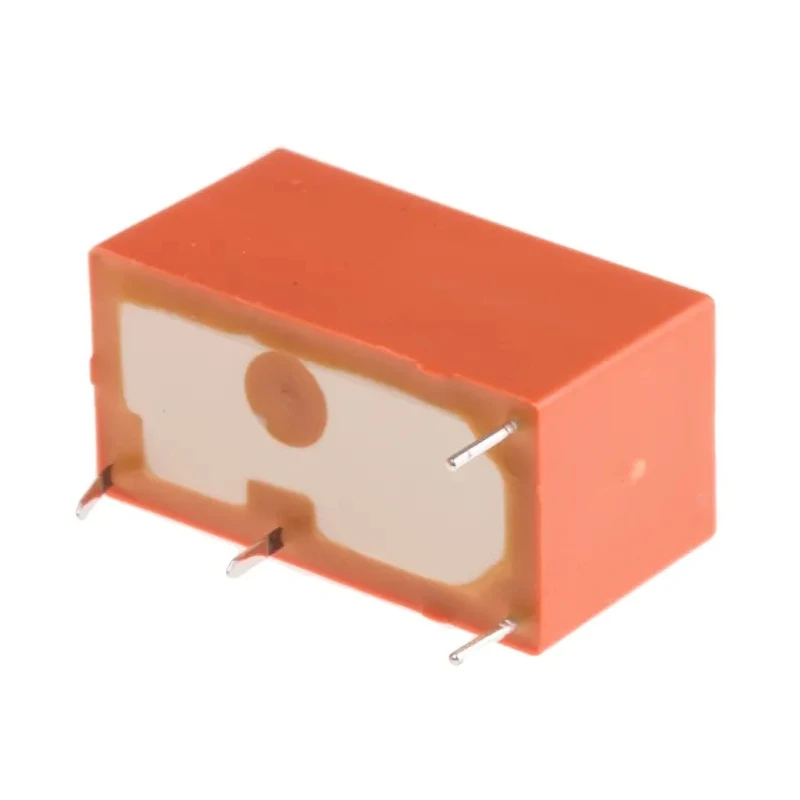

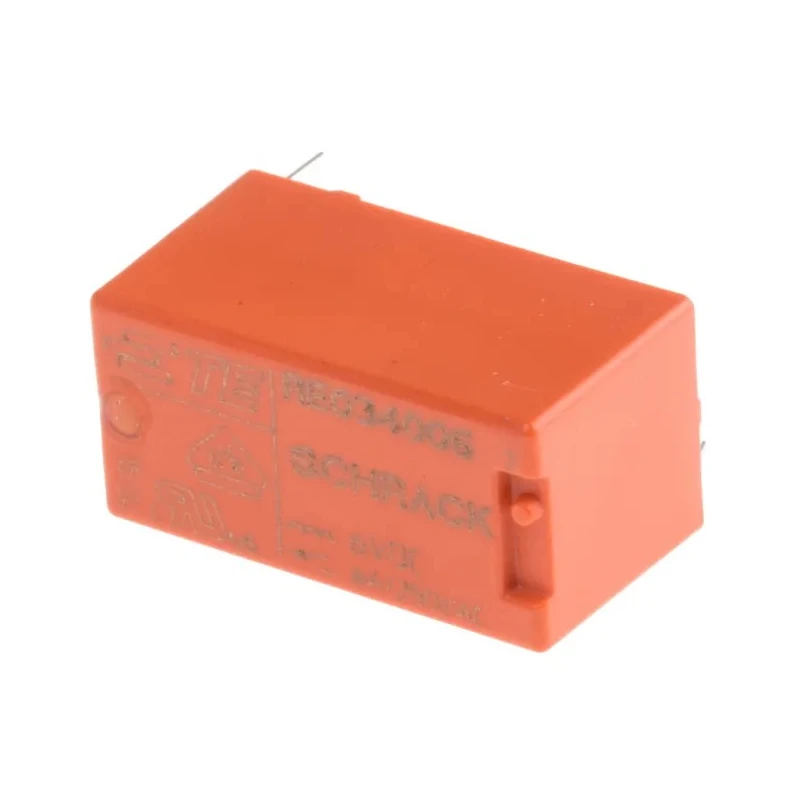

TE Connectivity PCB Power Relay 6V DC Coil 6A SPST RE034006
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 10.6mm |
| Length | 20mm |
| Model | RE034006 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RE |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 180Ω |
| Coil Voltage | 6V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 200mW |
| Flammability Class | UL94V-0 |
Key Features
- Features a sensitive 6V DC coil for efficient actuation.
- SPST (Single Pole Single Throw) contact configuration ensures straightforward switching.
- Supports up to 6A switching current for a variety of loads.
- PCB mountable with solder terminals for ease of installation.

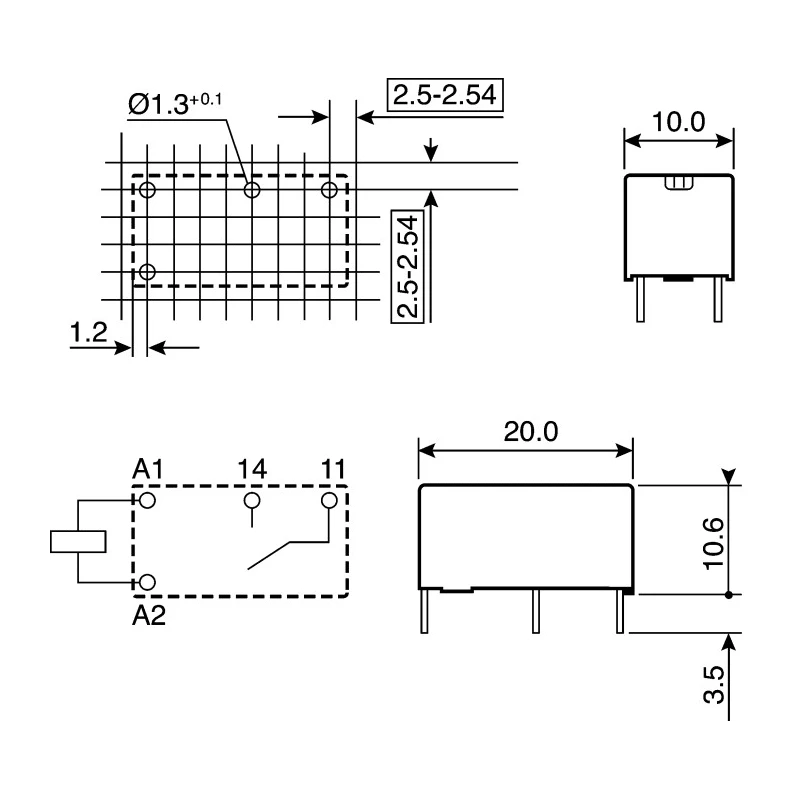

- Compact housing with dimensions 20 x 10 x 10.6 mm saves PCB space.
- Silver alloy contact material ensures durability and stable conductivity.
- Wide operating temperature range from -40°C to 70°C for robust performance.
- Complies with RoHS standards for environment-friendly manufacturing.
Product Description
TE Connectivity's RE034006 PCB Power Relay combines compact design, high switching capacity, and reliable operation, making it ideal for automation and control systems. This relay features a sensitive 6V DC coil with a power consumption of just 200 mW, enabling efficient control on low-power circuits. It utilizes SPST (Single Pole Single Throw) contact configuration, suitable for standard ON/OFF operations and delivering up to 6A switching current at 400V AC. The relay is tailored for PCB mounting, with solder terminals simplifying integration during electronic assembly.
The contact material is silver alloy, known for its high conductivity and resistance to arc erosion, providing long-lasting performance across demanding industrial and commercial settings. The relay operates over a broad temperature range from -40°C up to 70°C, making it suitable for use in PLCs, timers, temperature control modules, and I/O cards. Its compact enclosure - with dimensions of 20 mm length, 10 mm width, and 10.6 mm height - optimizes board utilization and permits installation in space-constrained applications. The coil resistance of 180 ohms further assures prompt actuation and compatibility with a range of control voltages.
Flammability class UL94V-0, wash-tight RTIII sealing, and creepage/clearance ratings enhance the safety and reliability for industrial electronics. Compliance with RoHS and approvals from UL, VDE expand its versatility in international markets. Applications include automation equipment, white goods controls, industrial timers, and PLC expansion modules.
By using the TE Connectivity RE034006 relay, engineers can ensure dependable switching performance for power circuits requiring high isolation and current handling on printed circuit boards. The standard PCB footprint and solder terminals promote fast installation and maintenance, and its environmental resistance assures longevity even in rigorous environments.
Explore TE Connectivity's range of PCB relays for advanced industrial, laboratory, and commercial applications within the EnvMart Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 6V DC.
It can handle a maximum switching current of 6A.
The dimensions of this relay are 20 mm in length, 10 mm in width, and 10.6 mm in height.
This model features an SPST (Single Pole Single Throw) contact configuration.
The coil resistance is 180 ohms.
It operates over a temperature range from -40°C to 70°C.
The contact material is silver alloy, which provides high conductivity and resistance to arc erosion.
This relay is designed for PCB mounting with solder terminals.
The coil power consumption is 200 mW.
It complies with RoHS standards and has approvals from UL and VDE.
The flammability class is UL94V-0.
