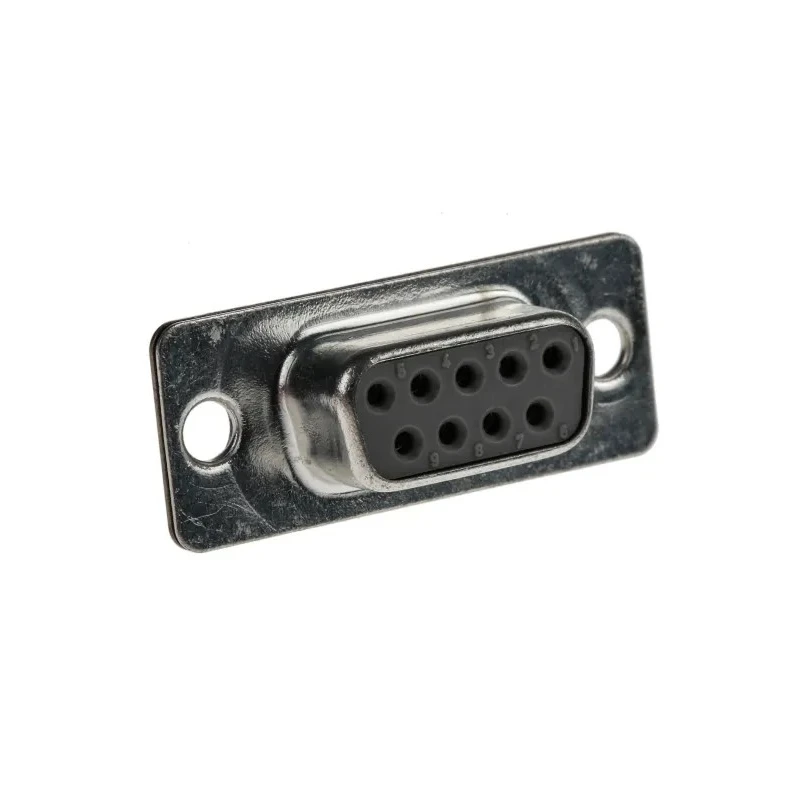

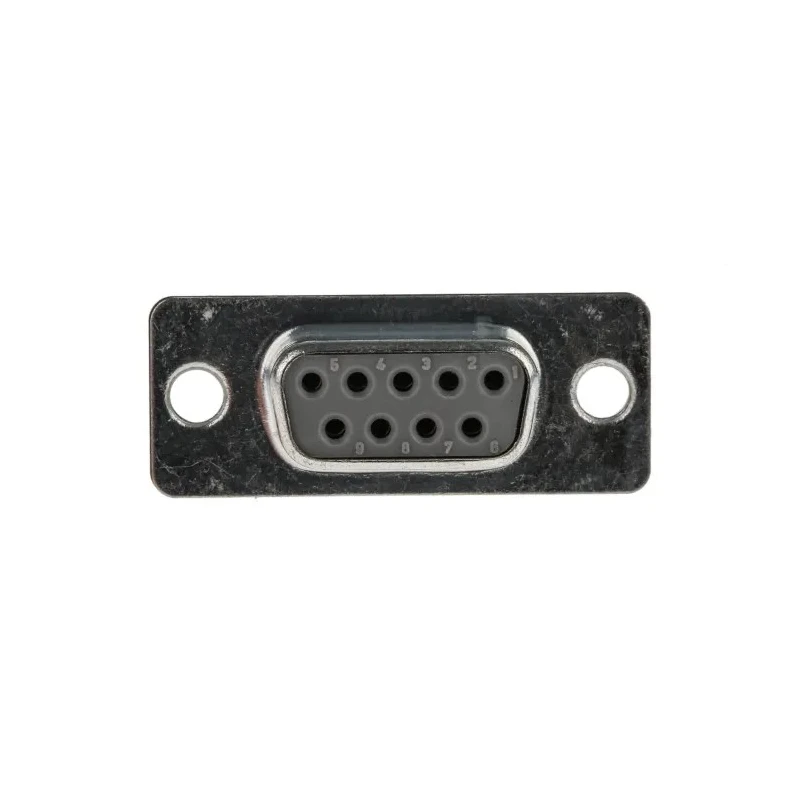

Cinch FD Series D-Sub Connector Female Panel Mount 9 Contacts 2.76mm Pitch Straight FDE-9ST2/1

Cinch FDE-9ST2/1 is a high-performance FD Series D-Sub Connector designed for reliable panel mounting in electronic, industrial, and military systems. This female connector offers 9 contacts, straight orientation, and a compact 2.76 mm pitch, making it ideal for space-constrained installations and versatile interfacing requirements.

Engineered to handle up to 5A current at 200 V, the connector uses solder termination for secure, easy assembly. The housing is fabricated from robust steel with a bright tin finish, while the rear shell utilizes electrolytic nickel, providing enhanced mechanical strength and effective EMI and RFI shielding. The contact pins are copper alloy, plated with gold and nickel to ensure optimal conductivity, corrosion resistance, and endurance under frequent mating cycles.

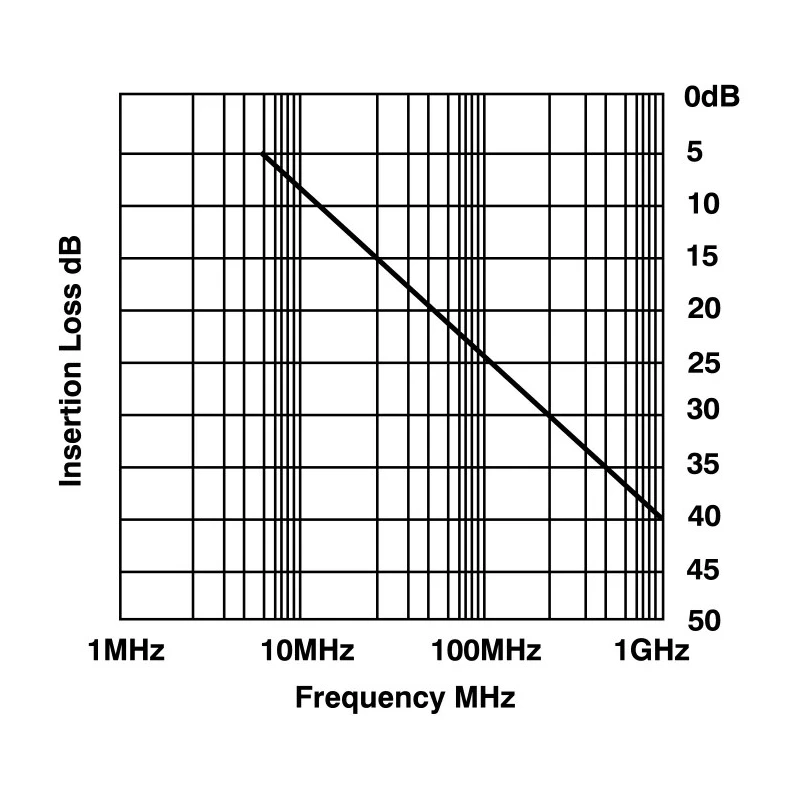

An integrated 1000 pF tubular capacitor is epoxy-encapsulated onto each contact, suppressing cable-borne EMI and enhancing VHF/UHF rejection, making this connector suitable for harsh electronic environments. The design includes grounding indents and potted construction, enabling operation in hazardous environments without interference or degradation.

Meeting CECC-73301-802, MIL-C-24308, DIN-14652, BS-9523, F0013, BT-217, and HE-501 standards, the Cinch FD Series D-Sub Connector is suitable for demanding applications in military, industrial automation, communications, computing, and laboratory electronics. It is UL94V-0 rated for flammability, supporting safety requirements and long-term reliability. The connector accommodates a wide operating temperature range from -25°C to 125°C, ensuring performance in both extreme heat and cold.

The product is designed with a panel mount configuration and straight entry, facilitating easy integration into electronic enclosures, PCBs, and equipment racks. Grounding and shielding features offer EMI protection, making it suitable for use where signal integrity is critical, such as in test and measurement equipment, control systems, and computer interfacing.

Each connector delivers high-quality machined contacts, providing excellent connection stability and long life. Its 9-way configuration allows for a broad range of data and signal transmission applications, and its solder bucket terminals assure secure wiring and installation.

For engineers, OEMs, and system integrators, Cinch FDE-9ST2/1 presents a robust, standards-compliant solution for secure, reliable D-Sub panel connections within industrial, military, and commercial environments.
