JAE Straight Through Hole PCB Header, 40 Contacts, 2.54mm Pitch, 2 Row, Shrouded, 1A, 500V TX25

Free Delivery in India | Lowest Global Shipping Charges

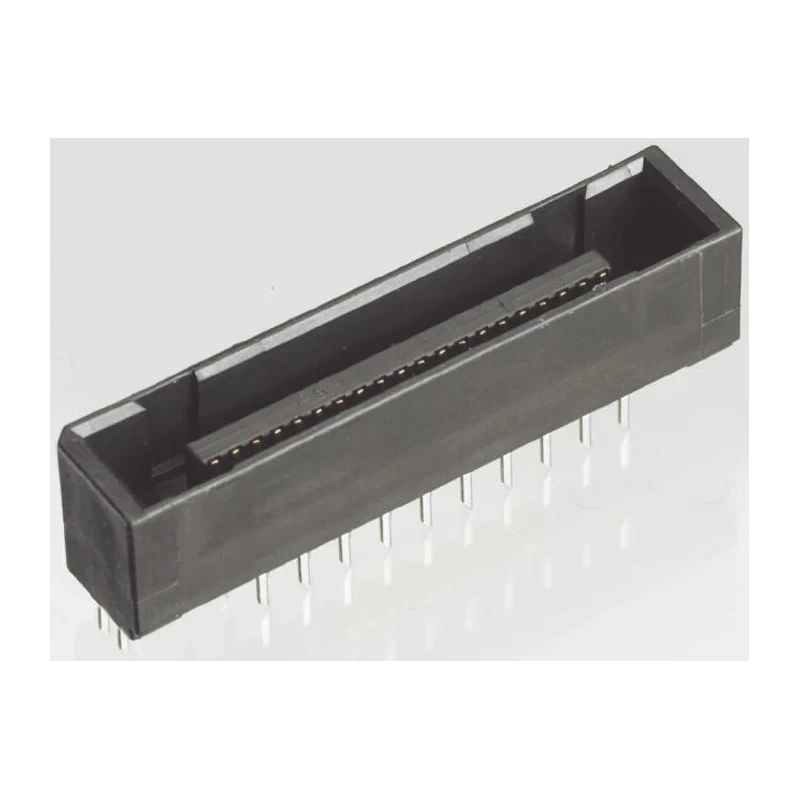

JAE Straight Through Hole PCB Header, 40 Contacts, 2.54mm Pitch, 2 Row, Shrouded, 1A, 500V TX25



Category PCB Headers Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	JAE
Orientation	Straight
Current	1A
Model	TX25
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	TX25
Termination Type	Solder
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	40
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Designed for board-to-board connections in electronic assemblies.
Features straight orientation and through hole mounting for secure attachment to PCBs.
Offers 1A current rating and supports up to 500V voltage applications.
Constructed with a polybutylene terephthalate housing for enhanced durability.
Includes gold-plated copper alloy contacts for reliable electrical performance and corrosion resistance.
Accommodates two rows of 20 contacts each, ideal for complex or high-density PCB layouts.
Functions over a temperature range from -40°C to +80°C for demanding environments.
Shrouded housing improves mating alignment and protects contacts during handling and operation.

Product Description

The JAE TX25-40P-6ST-H1E is a high-quality straight through hole PCB header engineered for advanced board-to-board electronic connections. With 40 contacts arranged in two rows and a standard 2.54mm pitch, this header is well suited for use in both professional and industrial electronic assemblies where secure and reliable signal transmission is required.

Constructed using a polybutylene terephthalate (PBT) housing, the material provides robustness and electrical insulation, which is essential for long-term durability and safety. The shrouded design aids in precise alignment during the mating process, reducing the risk of pin damage and ensuring a consistent connection in applications such as rack and panel connector systems. The header's straight orientation with through hole mounting ensures a sturdy attachment to the printed circuit board, offering mechanical stability even in environments with vibration or movement.

Each contact is made from a corrosion-resistant copper alloy and plated with gold, enhancing conductivity and maintaining stable performance under varied electrical loads. The 1A current rating and a voltage rating of up to 500V make this header suitable for numerous signal and power distribution tasks within PCBs. The solder termination method is compatible with widely used PCB assembly techniques, facilitating streamlined manufacturing processes.

Operating efficiently within a temperature range from -40°C to +80°C, the TX25-40P-6ST-H1E can be specified for products requiring reliable service in demanding industrial or commercial settings. Its stable housing incorporates polarizing keys, improving suitability in rack and panel interfaces and minimizing the likelihood of incorrect insertion. The connector system is tailored for board-to-board applications, making it a robust choice for modular or serviceable system designs.

This PCB header finds application in sophisticated industrial equipment, instrumentation, automation controls, communication hardware, prototyping, and other electronics projects where precision connectivity and system reliability are critical. The shrouded feature not only protects the contacts during assembly but also contributes to long-term performance stability.

Explore our full range of PCB Headers or discover more JAE interconnect solutions for your specific application requirements in electronics and automation systems.
