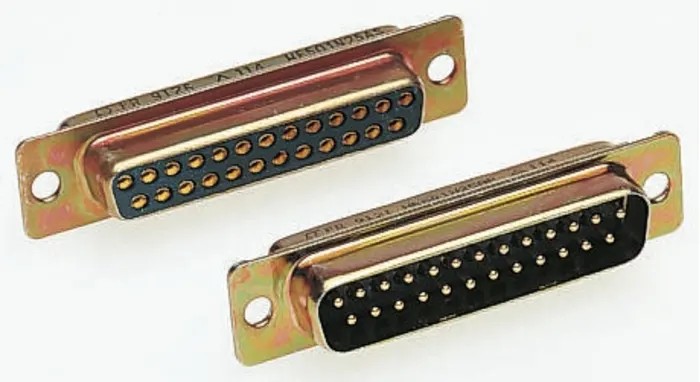

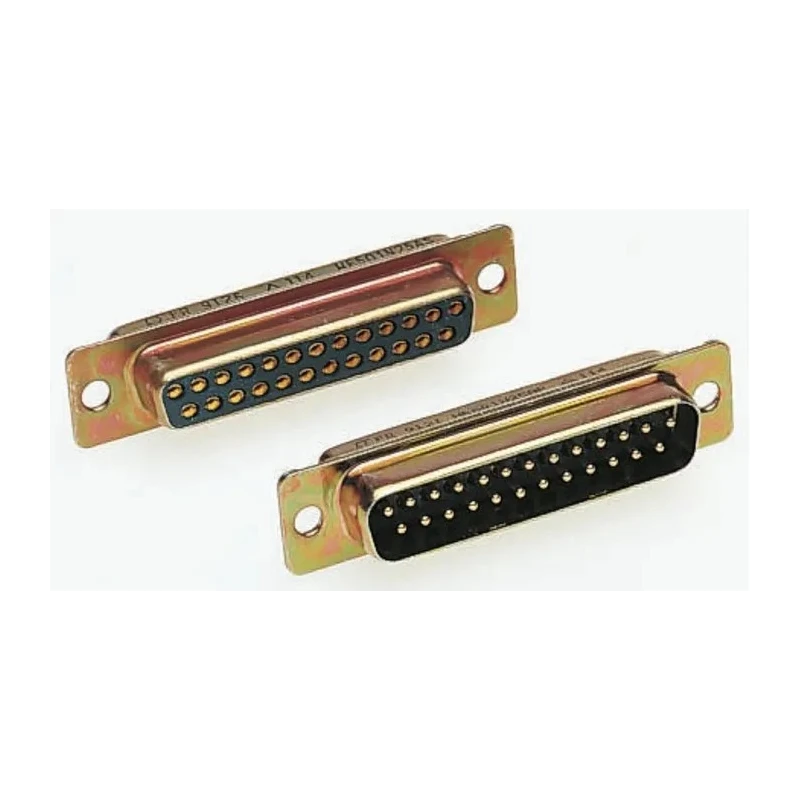

ITT Cannon ORIGINAL D 25 Way Right Angle D-Sub Connector, 2.8 mm Pitch, Through Hole Female, Thermoplastic, 121073-3235 D
Specifications
| Country of Origin | India |
|---|---|
| Brand | ITT Cannon |
| Orientation | Right Angle |
| Current | 5A |
| Model | 121073-3235 D |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | ORIGINAL D |
| Mounting Hardware | 120 in Through Hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.8mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 20 mm |
| D-Sub Shell Size | D |
| RS PRO 25 Way Right Angle Through Hole D-Sub Connector FemaleBrand | RS PRO |
| ITT Cannon ORIGINAL D 25 Way Right Angle PCB D-sub Connector SocketBrand | ITT Cannon |
Key Features
- Offers 25 contacts for secure signal connections.
- Rated for 5A current, supporting demanding applications.
- Right angle configuration for efficient PCB mounting.
- Female connector with D shell size for standardized interface.
- 120 in through hole mounting hardware for reliable assembly.
- Thermoplastic housing ensures durability and moisture resistance.
- Solder termination enables solid contact integrity.
- Wide operating temperature range from -55°C to 125°C.
Product Description
ITT Cannon’s 121073-3235 D ORIGINAL D-Sub Connector delivers high-performance connectivity for demanding electronic, military, and industrial systems. This connector features a robust right angle configuration, making it ideal for efficient PCB mounting in electronic devices and control systems.
With 25 contact points and a female connector gender, this model ensures standardized D shell interfacing for reliable signal transmission. The connector is engineered with a thermoplastic housing, offering moisture resistance and high-temperature endurance, crucial for operation in harsh environments.
The gold-plated copper alloy contacts provide low contact resistance and exceptional reliability, suitable for mission-critical and high-cycle use cases. The solder termination allows solid mechanical connection to circuit boards. The 2.8 mm pitch supports integration with MIL 24308 standard connectors, making it compatible for upgrades and field service across industrial, military, and commercial installations.
120 in through hole mounting hardware is included for secure and stable installation on panels or PCBs. The connector supports a wide operating temperature range from -55°C to 125°C, enabling usage in extreme environments such as aerospace, industrial control cabinets, and laboratory electronic assemblies.
This connector is part of ITT Cannon’s ORIGINAL D series and offers high reliability, monobloc moisture resistance, and compatibility with both cable and panel mount versions. It does not have specific standards/approvals but is engineered to meet typical industrial requirements. Applications span computer interfacing, manufacturing automation, measurement systems, communications, and other electronic control sectors.
Industrial buyers can browse the D-Sub Connector catalog for compatible accessories, including straight and 90° PCB versions and suitable hole cutters. For advanced applications, ITT Cannon’s D-Sub Connectors are trusted for high performance and reliable operation in environments requiring robust signal transmission.
Discover more industrial connectivity solutions in the Electronics Components category and explore the ITT Cannon brand on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 5A, making it suitable for demanding applications.
The contact pitch for this connector is 2.8 mm, which supports integration with compatible systems.
It features a through hole mounting type, and includes 120 in mounting hardware for secure installation.
The connector supports a wide operating temperature range from -55°C to 125°C, suitable for extreme environments.
The housing is made of thermoplastic, while the contacts are composed of copper alloy with gold over nickel plating.
This D-Sub connector features 25 contacts, ensuring secure signal connections.
The connector has a female contact gender, designed for standardized interfacing.
Yes, the 2.8 mm pitch supports integration with MIL 24308 standard connectors, allowing for upgrades and field service.
It utilizes solder termination, which provides a solid mechanical connection to circuit boards.
It is suitable for applications in computer interfacing, manufacturing automation, measurement systems, and communications.
This model features a right angle orientation, making it ideal for efficient PCB mounting.
The country of origin for this connector is India.
