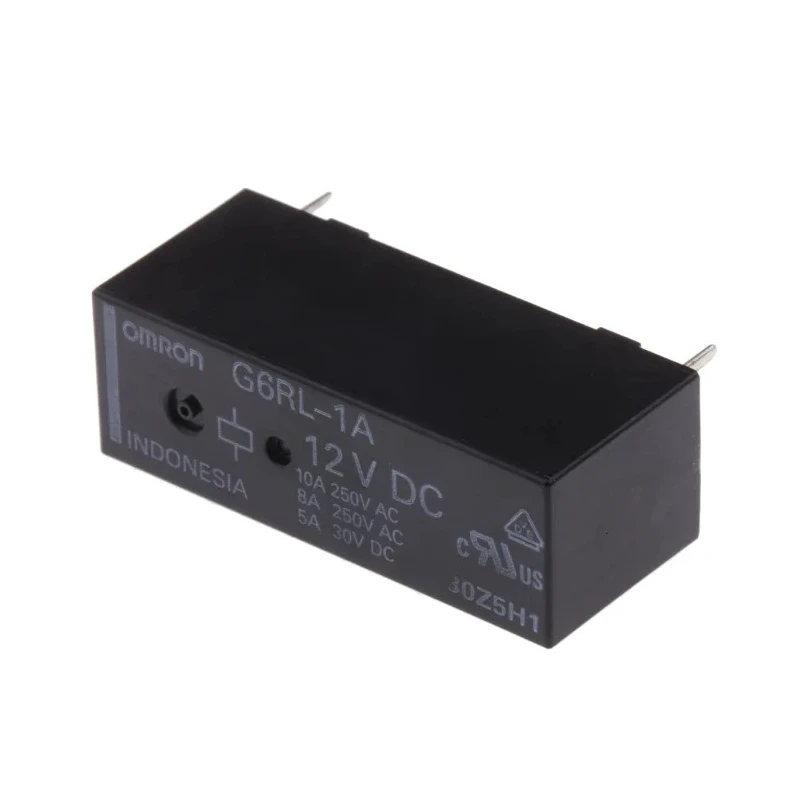

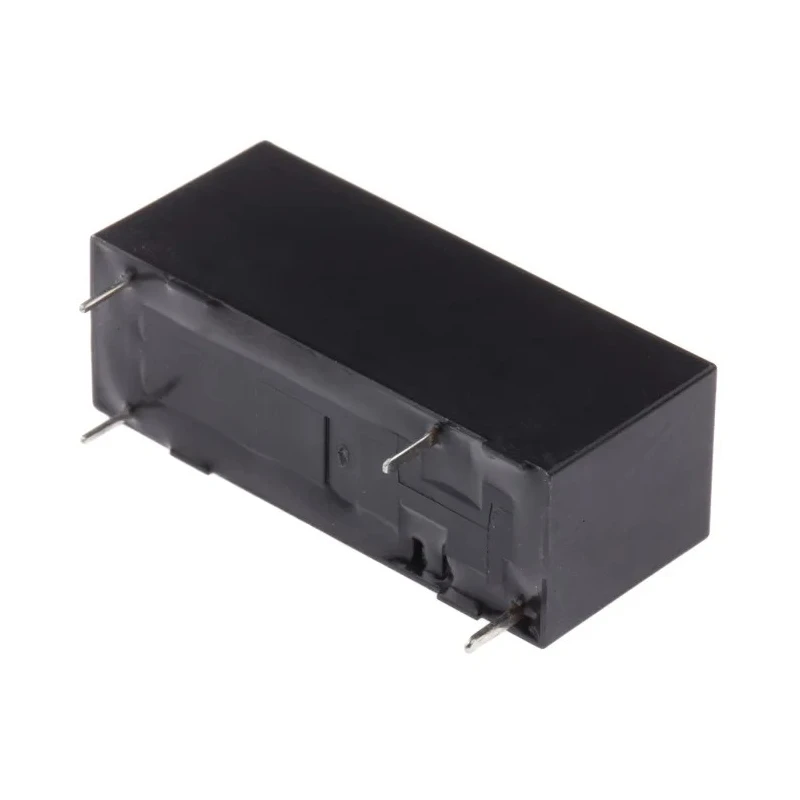

Omron PCB Power Relay 12V DC Coil 10A SPST Low Profile G6RL-1A DC12
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | G6RL-1A DC12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Low Profile | 12.3mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 654Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 220mW |
| Low coil power consumption | 220mW (typical) |
Key Features
- Designed for PCB mounting with a compact, low-profile form factor.
- Operates with a 12V DC coil voltage and offers a maximum switching current of 10A.
- Single Pole Single Throw (SPST) contact configuration for reliable control applications.
- Features silver alloy contacts to provide low contact resistance and durable performance.
- Solder terminal type for secure and efficient installation on PCB assemblies.
- Switching power capability up to 2.5 kVA and supports high voltage applications up to 400V AC and 300V DC.
- Low coil power consumption of 220 mW is ideal for energy-sensitive designs.
- Flux-proof construction along with RoHS standards compliance.
Product Description
Omron G6RL-1A DC12 PCB Power Relay is a versatile, compact relay designed for reliable switching in industrial, automation, and electronic applications. The relay operates with a 12V DC coil and supports a maximum switching current of 10A, making it suitable for power control tasks across a wide range of machinery, control panels, and electronic devices.
With a low profile of only 12.3mm and solder terminals, this relay is ideal for PCB mounting in space-sensitive designs. It utilizes a single pole single throw (SPST) contact configuration, which enables straightforward, dependable circuit control. The contact material is silver alloy, providing excellent conductivity and low resistance for high-performance switching.
The relay withstands high switching voltages - up to 400V AC and 300V DC - making it appropriate for demanding industrial applications. Low coil power consumption (220mW, typical) allows for energy-saving operation, particularly valuable in modern automation systems.
Durability and safety are ensured through RoHS compliance and a robust build. The flux-proof construction prevents contamination, and the wide operating temperature range (-40°C to 85°C) accommodates harsh industrial environments. Additional approvals including UL 508 and VDE support its use in regulated sectors.

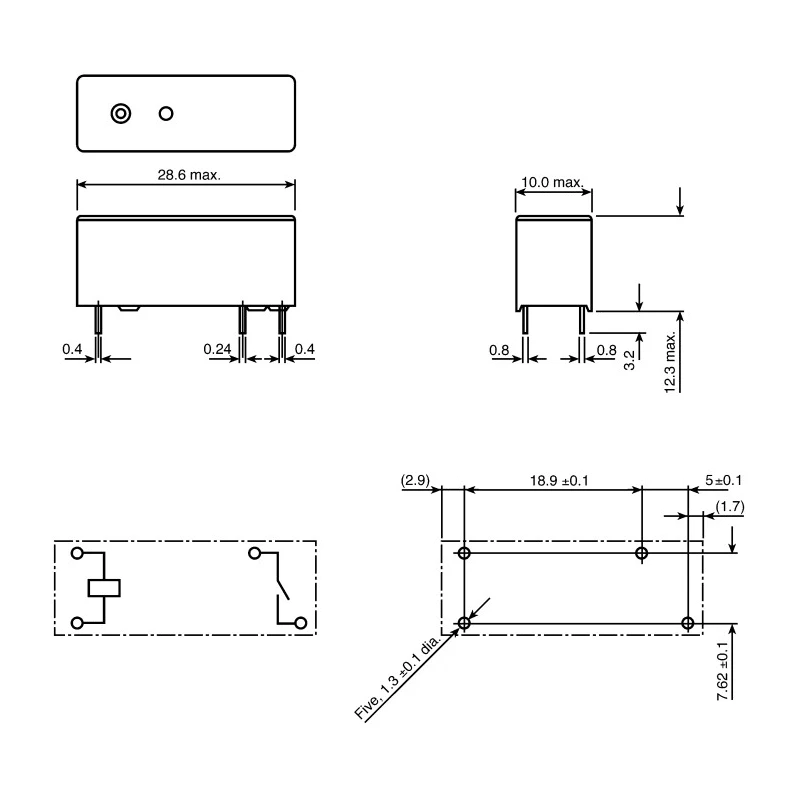

Solder terminals provide quick and reliable installation on PCB assemblies, while a coil resistance of 654Ω ensures stable operation over extended periods. Compact dimensions (28.5mm length, 10mm width, 12.3mm height) make the relay suitable for dense PCB layouts.
Industrial, laboratory, automation, manufacturing, and commercial applications frequently require reliable switching components for power control, signal transmission, and safety circuits. The Omron G6RL-1A DC12 PCB Power Relay meets these needs with precision and performance.
For more advanced relay solutions and technical components, browse the Power Relay category and Omron brand products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a maximum switching current of 10A, making it suitable for various power control applications.
This model operates with a coil voltage of 12V DC, which is essential for its activation.
The relay has compact dimensions of 28.5mm in length, 10mm in width, and 12.3mm in height, allowing for space-efficient PCB mounting.
It features a Single Pole Single Throw (SPST) contact configuration, which provides straightforward circuit control.
The relay has a low coil power consumption of 220mW, which is beneficial for energy-sensitive designs.
This relay can switch up to 400V AC and 300V DC, making it suitable for high voltage applications.
The contacts are made of silver alloy, which provides low contact resistance and enhances performance.
The relay operates within a temperature range of -40°C to 85°C, accommodating various industrial environments.
It is designed for PCB mounting and features solder terminals for secure installation.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
The coil resistance is 654Ω, which ensures stable operation over extended periods.
This relay is suitable for industrial, automation, and electronic applications requiring reliable switching for power control and signal transmission.
