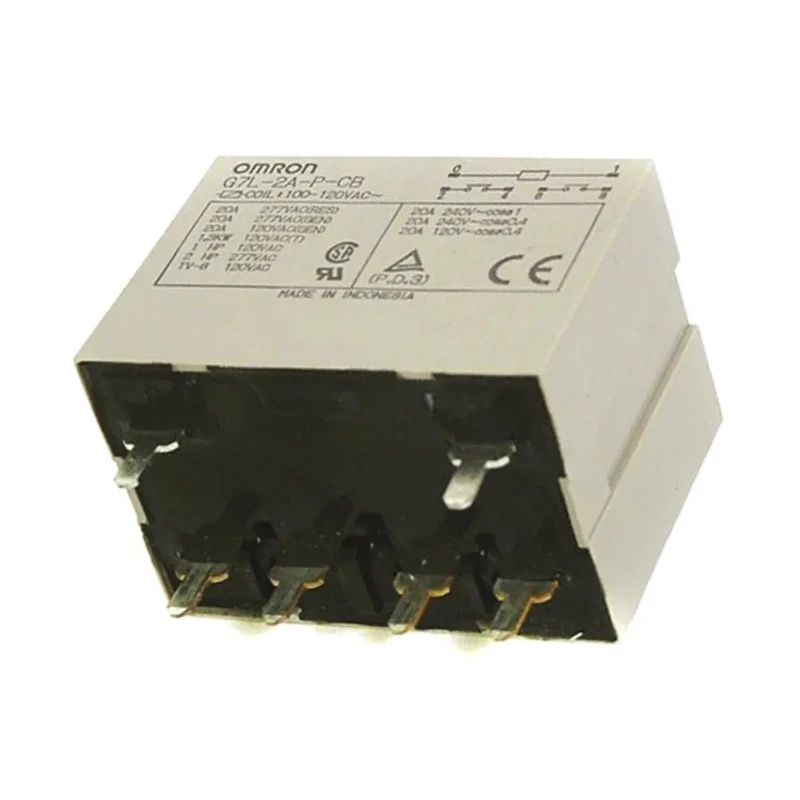

Omron PCB Power Relay 12V dc Coil 20A Switching Current DPST G7L-2A-P 12DC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 41mm |
| Length | 52.5mm |
| Model | G7L-2A-P 12DC |
| Width | 35.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G7L |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 20A |
| Terminal type | Solder |
| Standards/Approvals | CSA, IEC, RoHS, TUV, UL |
| Coil Resistance | 75Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.9W |
Key Features
- Designed for PCB mounting with solder terminal type.
- High dielectric strength and momentary voltage drop tolerance up to 50% of rated voltage.
- Compact dimensions of 52.5mm length, 35.5mm width, and 41mm height.
- Operates reliably between -25°C and 60°C ambient temperatures.
- Silver alloy contact material ensures durable and efficient switching.
- Switching AC voltage rated at 250V AC with 4.4kVA switching power.
- Coil resistance of 75Ω and coil power consumption of 1.9W.
- Flame-resistant UL94V-0 insulation material enhances safety and durability.
Product Description
Omron G7L-2A-P 12DC PCB Power Relay offers robust electrical performance with a 12V dc coil voltage and 20A switching current configured as DPST. It is specifically engineered for PCB mounting with solder terminals, making it ideal for compact and efficient assembly in various electrical and industrial control systems.
The relay withstands momentary voltage drops up to 50% of the rated voltage and maintains high dielectric strength under demanding conditions. Its compact size with dimensions of 52.5mm length, 35.5mm width, and 41mm height allows easy integration on circuit boards.
Operable across a wide temperature range from -25°C to 60°C, it is constructed with silver alloy contacts to support high-quality switching reliability. The coil resistance is 75Ω with a low coil power requirement of 1.9W, making it energy efficient.
The relay accommodates switching AC voltages up to 250V ac and handles switching power of 4.4kVA. Its UL94V-0 flame-resistant insulation assures safety and durability in industrial use.
Certified by CSA, IEC, RoHS, TUV, and UL, this relay meets international safety and quality standards. Manufactured in Indonesia, the Omron G7L-2A-P 12DC relay is suitable for electrical, automation, and control applications demanding high performance and reliability.
Designed for PCB mounting with solder terminal type. High dielectric strength and tolerance to momentary voltage drops up to 50%. Compact dimensions suited for PCB integration. Operational temperature range from -25°C to 60°C.
Durable silver alloy contact material for efficient switching. Capable of switching up to 250V AC and 4.4kVA power. Low coil power consumption of 1.9W with 75Ω resistance. FLame-retardant UL94V-0 insulation ensures user safety.
Certified to multiple international safety and quality standards. Manufactured in Indonesia for quality assurance.
This Power Relay is ideal for industrial automation, electrical control panels, manufacturing equipment, and various applications requiring reliable switching. Explore more high-quality relays and contactors in the Electronics & Electricals category on EnvMart for your system design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 20A.
This model operates with a coil voltage of 12V DC.
The relay has dimensions of 52.5mm in length, 35.5mm in width, and 41mm in height.
It is designed for PCB mounting with solder terminals.
The relay can switch AC voltages up to 250V AC.
The coil resistance is 75Ω.
The coil power consumption is 1.9W.
It operates reliably between -25°C and 60°C.
The contacts are made from silver alloy, ensuring efficient switching.
It is certified by CSA, IEC, RoHS, TUV, and UL.
It can withstand momentary voltage drops up to 50% of the rated voltage.
The relay is manufactured in Indonesia.
