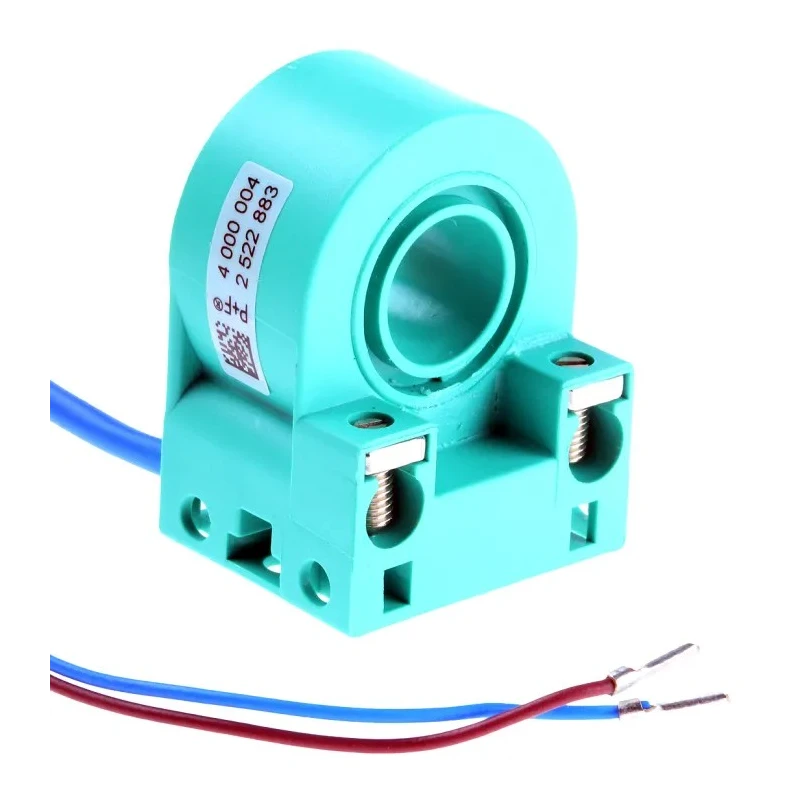

Pepperl + Fuchs Ring Inductive Proximity Sensor NAMUR 25 V dc 20 mm Detection RC10-14-N0

Pepperl + Fuchs RC10-14-N0 ring Inductive Proximity Sensor operates at 25 V dc with a maximum detection distance of 20 mm. Featuring a durable Polybutylene Terephthalate (PBT) housing with an IP67 rating, it is designed for reliable operation in harsh industrial environments, including factory automation and process control.

The sensor's ring body style with 32.5 mm length and 25 mm width provides a compact form factor, facilitating integration into tight spaces. It is prewired with a 2-meter 2-core PVC cable allowing straightforward installation and wiring.

Operating temperature ranges from -20°C to 65°C, making it suitable for both typical and moderately cold or warm industrial settings. The output is NAMUR type with normally closed configuration, delivering 3mA current when face is free and 1mA when covered, ensuring accurate presence detection.

With a maximum switching frequency of 2 kHz, this sensor can detect changes rapidly, supporting automation systems requiring high-speed sensing solutions. The device is compliant with important safety and performance standards including cULus and IEC 60947-5-2:2007, assuring quality and operational safety in electrical applications.

The sensor must be used in conjunction with an isolation barrier interface for proper NAMUR signal integration, typically recommended as RS stock no. 703-7043. Its robust design and reliable operation make it an ideal choice for automation, manufacturing, process monitoring, and control gear applications.

Offers a ring body style with 32.5 mm length and 25 mm width dimensions. IP67 rated housing made of robust Polybutylene Terephthalate (PBT) material. Maximum detection range of 20 mm ensuring high sensitivity in sensing applications.

Operates reliably in temperature range from -20°C to 65°C for harsh environments. Prewired with 2 m 2-core PVC cable for easy installation and connection. Maximum switching frequency of 2 kHz suitable for fast response applications.

Output type is NAMUR with normally closed configuration (3mA when face free, 1mA when face covered). Designed to comply with cULus and IEC 60947-5-2 standards for safety and performance. Manufactured in Indonesia and intended for industrial automation and control systems.
