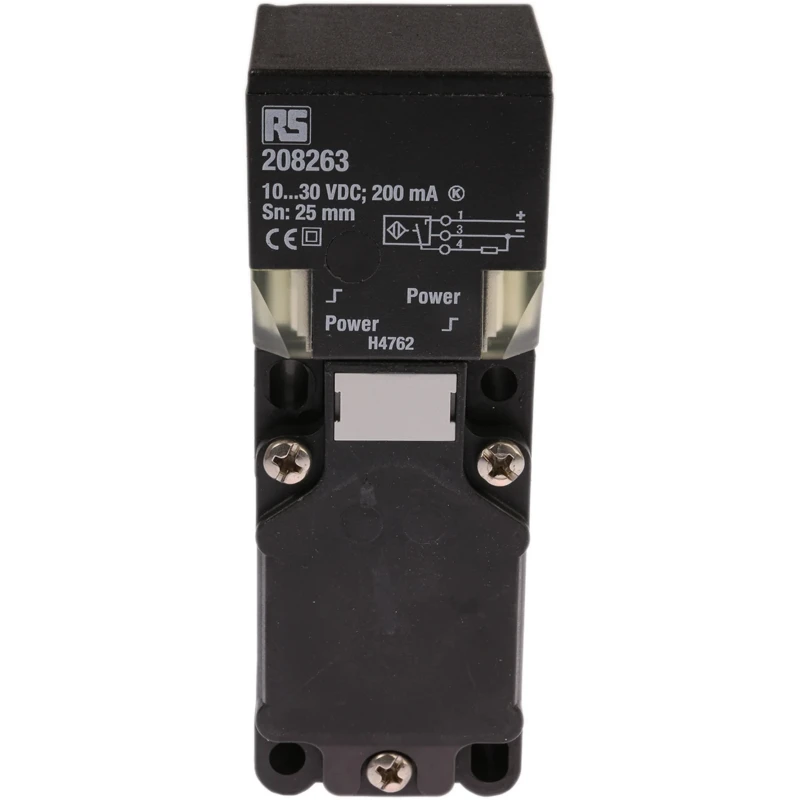

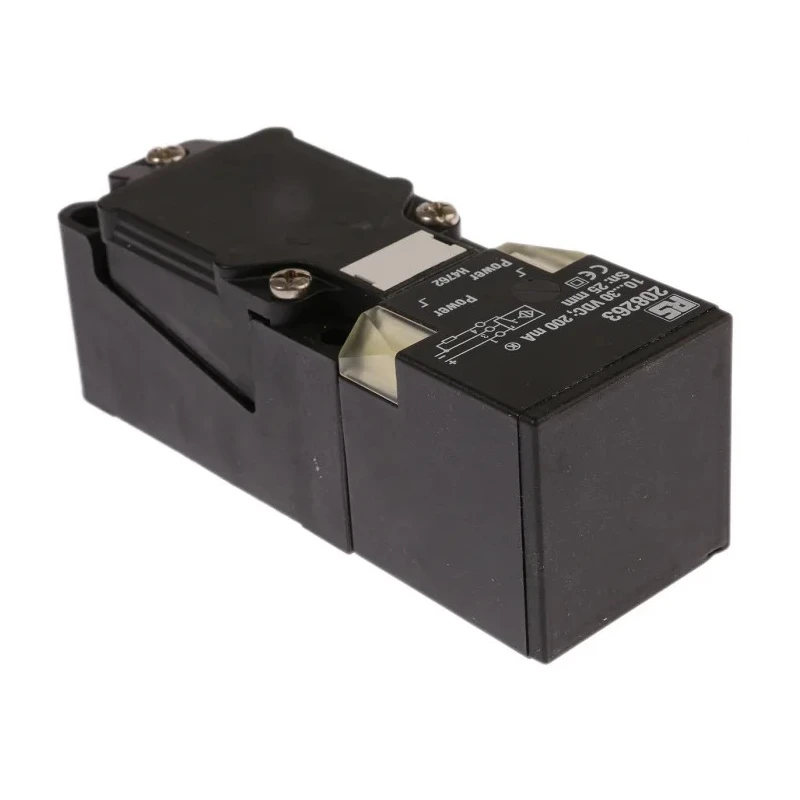

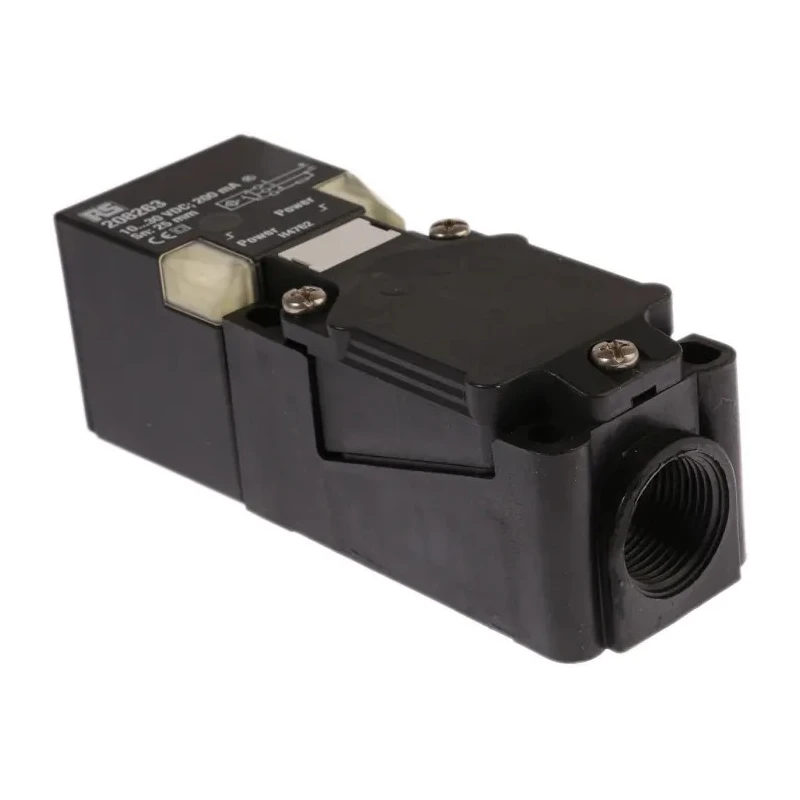

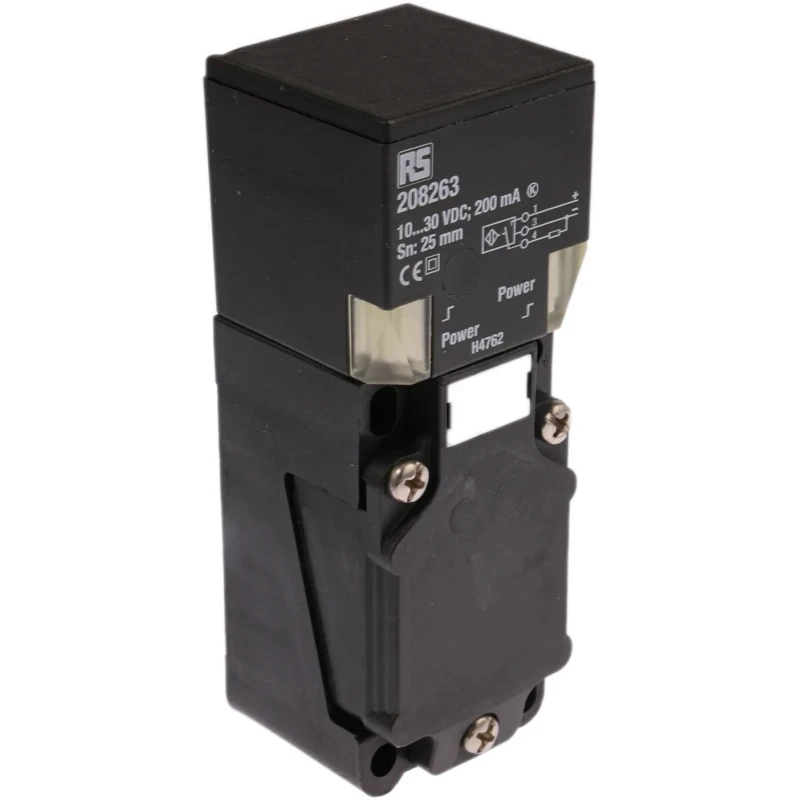

RS PRO Block Inductive Proximity Sensor M12 Thread, PNP Output, 30 V DC, 25 mm Detection Range 208-263

RS PRO 208-263 Block Inductive Proximity Sensor is a high-performance sensor with an M12 thread size and PNP output type, operating at 30 V DC and capable of detecting metal objects up to 25 mm away. Its plastic housing and block form factor provide robustness and ease of installation in various industrial contexts.

This sensor is engineered with an IP68 ingress protection rating, making it dust-tight and protected against water ingress, ensuring reliable operation in challenging environments such as manufacturing plants, hydraulic machinery, and automated robotic systems.

Featuring an unshielded sensing face and partial shielding, the sensor supports a maximum switching frequency of 250 Hz, allowing quick detection and response times. It incorporates reverse polarity protection and short circuit overload protection to safeguard the electronics during operation.

The sensor’s operating temperature range from -30°C to +85°C equips it to function effectively across a wide range of industrial temperatures. Its inductive sensing technology detects all metal materials, both ferrous and non-ferrous, broadening its usability in numerous applications.

Mechanical dimensions include a length of 114 mm, width of 40 mm, and depth of 40 mm, with a non-flush mount and terminal chamber connections via an M20 gland, supporting practical assembly requirements.

Manufactured in Germany, this RS PRO model 208-263 sensor offers precision, durability, and compliance with industrial standards, suitable for applications such as position monitoring in forklift trucks, automated assembly lines, and other hydraulic machinery.

The sensor body is plastic and has M12 thread size with a block style. It features PNP output type and operates up to 30 V DC. The maximum detection range is 25 mm for metal objects. IP68 rated for dust-tight and water-resistant operation.

Supports a switching frequency of 250 Hz with 200 mA max switching current. Operating temperature range extends from -30°C to 85°C. Includes reverse polarity and short circuit overload protections. Unshielded sensing face with partial shielding technology.

Dimensions: length 114 mm, width 40 mm, depth 40 mm, non-flush mount. Terminal type is terminal chamber with M20 gland threading. Explore more sensors and automation components within the RS PRO category at EnvMart.
