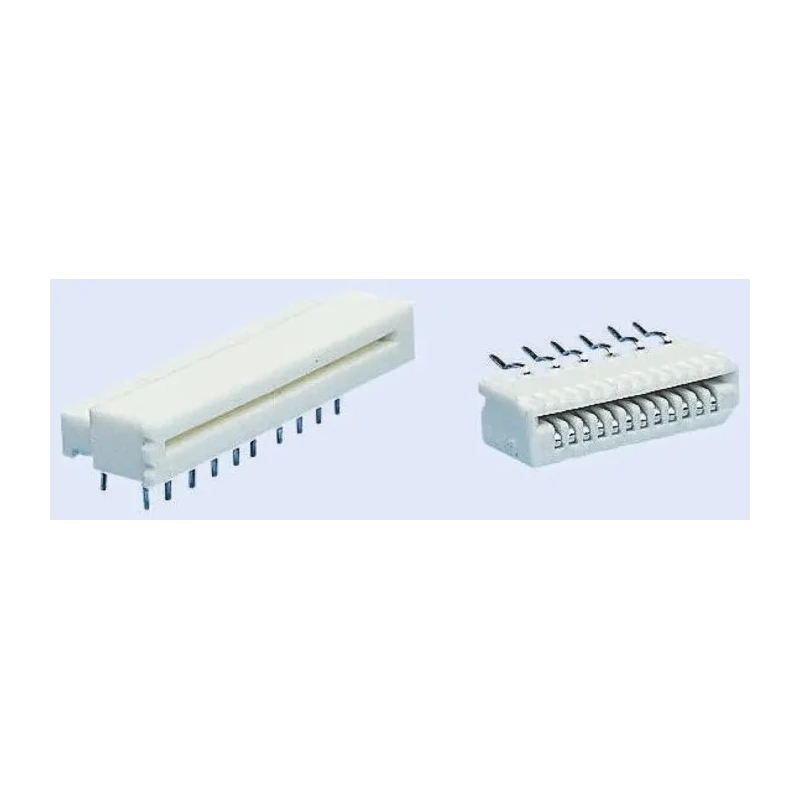

Molex 5597 Series 1.25 mm Pitch 26 Way Straight Female FPC Connector Solder Through Hole 200V 1A 39-53-2265

The Molex 5597 Series 1.25 mm Pitch 26 Way Straight Female FPC Connector, model 39-53-2265, is engineered to provide reliable and compact PCB connectivity solutions in various electronics. Featuring a Zero Insertion Force (ZIF) slide type actuator, this connector enables easy and repeated cycle operation with minimal wear, facilitating secure connections between flexible printed circuits (FPC) and PCB terminals.

Specifically designed for tight packaging applications, the space-saving form factor allows integration into devices with limited board real estate. The orientation is straight, and the termination type is solder, making production line insertion efficient. This female connector accommodates 26 contacts in a single row, providing robust and streamlined circuit integration.

Electrical performance is ensured by phosphor bronze contacts, plated with tin over nickel, delivering excellent conductivity and longevity. The connector is rated for maximum voltage of 200V and a current of 1A, making it suitable for a wide range of signal and power circuits. The through hole mount with staggered solder tails further enhances production efficiency and mechanical stability.

Material selection includes a durable housing made from polyethylene terephthalate for enhanced environmental resilience. The operating temperature range spans from -20°C to 80°C, supporting use in automotive, industrial, and electronic applications. The locking mechanism secures the FPC, and the ZIF feature supports repeat cycle insertion with minimal contact wear.

This connector is part of the Molex 5597 series, which includes options for both right angle and vertical mount orientations. The model presented here is straight and vertical mount with contacts on one side, suited to common PCB layouts.

Space-saving ZIF design for repeat cycling and minimal wear. Slide actuator ensures easy and secure insertion of flexible printed circuits. Staggered solder tails and through hole design streamline production processes. Rated to 200V and 1A for versatile electronic circuit integration.

Durable phosphor bronze contacts and robust housing. Operating temperature from -20°C to 80°C for demanding environments. Ideal for use in automotive, industrial, and consumer electronic applications. Single row with 26 contacts for high-density PCB connectivity.

The Molex 5597 Series FPC Connector is suitable for automotive, instrumentation, and industrial circuit applications. Customers seeking high-reliability and ease-of-use FPC solutions will find this model an excellent fit. Browse more Molex PCB Connectors and FPC solutions in the Electronics & Electricals category on EnvMart.
