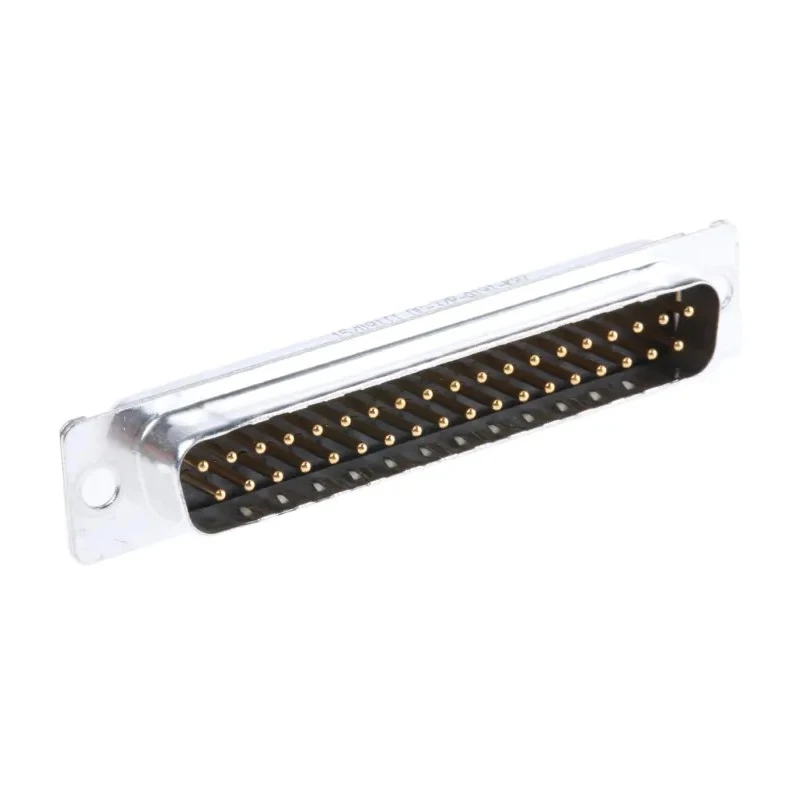

ITT Cannon ORIGINAL D 37 Way Straight Panel Mount D-Sub Connector, 5A, Male, Steel Housing, Solder Termination, 121073-2293 D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1.25kV |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 5A |
| Model | 121073-2293 D |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | ORIGINAL D |
| Mounting Hardware | 120 in Through Hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 37 |
| Contact Gender | Male |
| Connector Gender | Male |
| Contact Size | 20 mm |
| Connector Type D | D-Sub |
| D-Sub Shell Size | C |
| ITT Cannon Through Hole, 37 Pin Solder D-sub Connector PlugBrand | ITT Cannon |
Key Features
- Features 37 contacts with reliable electrical performance.
- Straight orientation designed for panel mount installations.
- Male connector with solder termination for secure connection.
- Steel housing ensures durability and resistance to environmental factors.
- Rated for 5A current and 1.25kV voltage operation.
- Suitable for military, industrial, and commercial applications.
- Compatible with MIL 24308 connectors.
- Gold over nickel contact plating provides low contact resistance.
Product Description
ITT Cannon 121073-2293 D is a high-quality ORIGINAL D series D-Sub connector, engineered for panel mount applications requiring dependable, high-density connectivity. This connector features 37 contacts, straight panel mounting, and male gender, providing reliable and efficient connections in various electronic systems.
The connector is constructed with a robust steel housing that offers mechanical durability and environmental protection, making it suitable for demanding military, commercial, and industrial environments. Solder termination ensures secure attachment and stable electrical performance, while the straight orientation facilitates easy panel integration.
ITT Cannon's 121073-2293 D delivers excellent current rating of 5A and can operate at voltages up to 1.25kV, meeting requirements for high-reliability systems. The gold over nickel plating on copper alloy contacts minimizes resistance, enhances conductivity, and offers superior corrosion protection, resulting in reliable long-term operation.
Designed to be compatible with MIL 24308 connectors, this D-Sub connector supports efficient interfacing with military and industry-standard equipment. The monobloc moisture-resistant construction, high-temperature withstand insulator, and precise 20 mm contact size contribute to its robust operational characteristics.

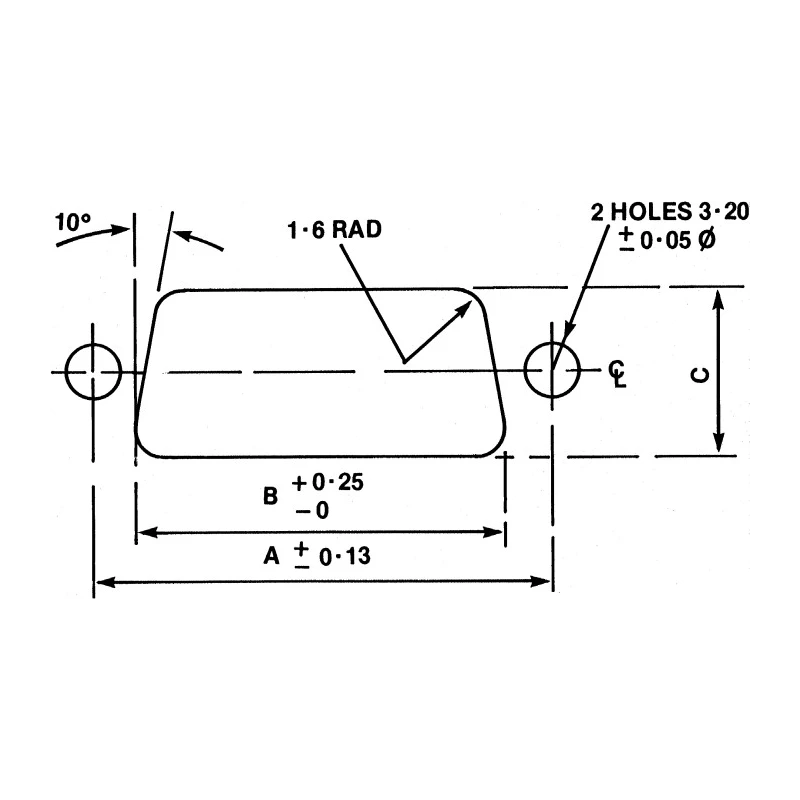

The panel mount through-hole design features 120 in mounting hardware, ensuring secure fitment and alignment. The connector's temperature range spans from -55°C to 125°C, supporting operation in extreme conditions.
Applications for this connector encompass industrial automation, computer interfacing, communications, military electronic systems, and commercial equipment. Its performance, rugged construction, and reliable contact system make it a preferred solution for cutting-edge electronic designs.
37-way connectivity for complex electronic circuits. Rugged steel housing ensures mechanical strength. Gold over nickel plating offers enhanced conductivity and reliability. Straight panel mount type simplifies integration and maintenance.
Solder termination provides lasting electrical contact integrity. Wide temperature range allows for deployment in harsh conditions. Compatible with MIL 24308 connector systems. Used in military, industrial, computer, and commercial applications.
Explore more D-Sub Connectors and ITT Cannon’s complete range of solutions for industrial, military, and computing connectivity on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 5A, making it suitable for various electronic applications.
This model is rated for a voltage operation of up to 1.25kV.
The connector features 37 contacts, allowing for complex electronic circuit connections.
The housing is constructed from steel, providing durability and resistance to environmental factors.
It utilizes solder termination for secure and stable electrical connections.
It operates effectively within a temperature range of -55°C to 125°C.
Yes, it is compatible with MIL 24308 connectors, making it suitable for military applications.
This model supports panel mount installation with a through-hole design.
The contacts are plated with gold over nickel, which helps minimize contact resistance and enhances conductivity.
The contact size is 20 mm, which is standard for this type of connector.
It is suitable for military, industrial, computer interfacing, communications, and commercial equipment applications.
The D-Sub shell size for this model is C, which is standard for connectors with 37 contacts.
