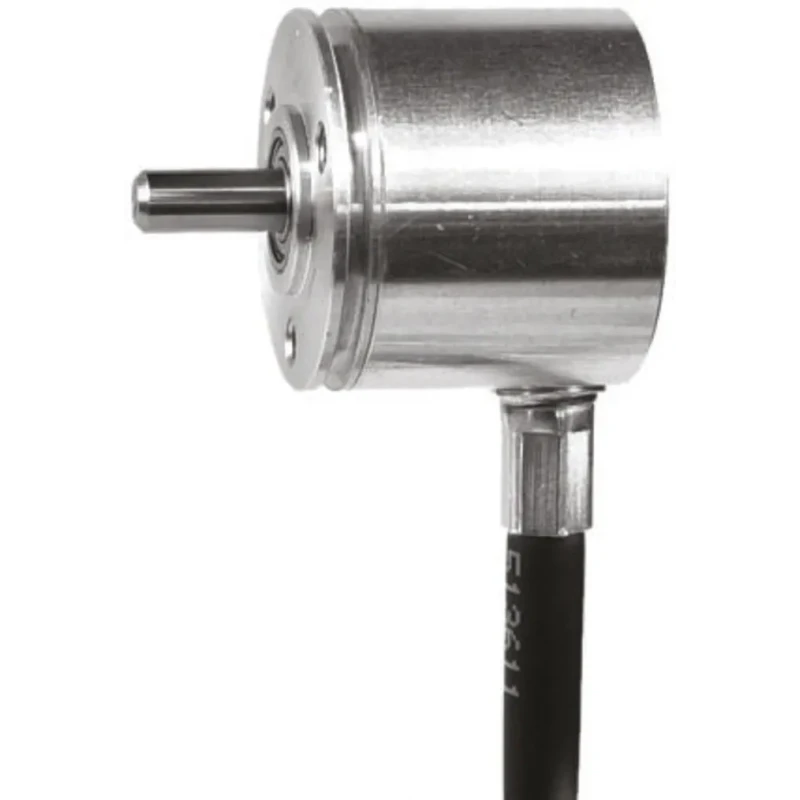

Baumer Optical Incremental Encoder 1024 Pulses Push Pull HTL Solid Shaft 4 mm 30V BTIV 24S 16.24K 1024 G4 5

The Baumer BTIV 24S 16.24K 1024 G4 5 is a high-performance optical incremental encoder, designed to deliver precise rotational angle and speed measurements in automation and industrial environments. With a resolution of 1024 pulses per revolution and a maximum supply voltage of 30V, this compact rotary encoder is suitable for a range of motion control sensor applications, offering accurate feedback for position detection and rotational direction monitoring.

This encoder utilizes optical sensing technology to generate incremental signals, producing both Push Pull and HTL outputs for flexible integration with industrial PLCs and controllers. The solid shaft is 4 mm in diameter, providing rugged mechanical coupling and consistent operation. Its casing diameter of 24 mm and synchro flange mounting allow easy installation in space-limited locations and miniature platforms.

Engineered for demanding environments, the BTIV 24S 16.24K 1024 G4 5 supports rotational speeds up to 1200 rpm, making it suitable for precise speed measurement in servo systems, conveyor drives, and motor monitoring. The spring and shoulder screw mounting further enhance installation stability, while the 1 meter cable enables flexible wiring and connection to control panels.

With an IP54 protection rating, the encoder is safeguarded against dust ingress and water splashes, expanding its utility in manufacturing and laboratory automation. The minimum operating temperature of -20°C and maximum of 85°C allow for reliable performance in varied ambient conditions. Additionally, the compact overall depth of 29 mm and width of 24 mm enhance its suitability for embedded designs.

Typical industrial applications include robotic arms, machine tools, automated assembly lines, packaging machinery, and laboratory instrumentation where accurate position and speed feedback are critical for process control and monitoring. The radial output interface and EN standards compliance offer interoperability and assurance of quality.
