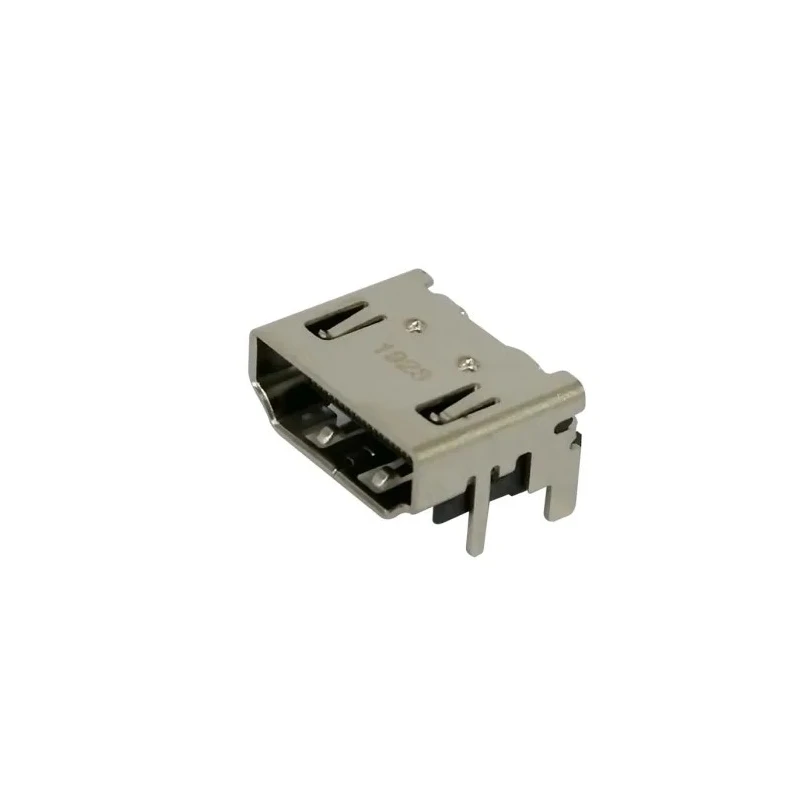

Molex HDMI Connector Type A 19 Way Right Angle Female 40V Brass Gold-Plated 2086588121

Molex introduces the 2086588121 HDMI Connector, Type A, featuring 19 contacts configured in a compact right angle female form. This specialized AV component is engineered for wire-to-board PCB layouts and is ideal for high-density electronic applications where reliable AV connectivity is critical. Its surface mount design, along with solder termination, supports streamlined integration in complex circuit assemblies and manufacturing environments.

The connector is constructed with precision: the contacts are made of brass material and plated with gold to promote corrosion resistance and superior electrical performance over extended periods. The robust housing employs liquid crystal polymer for structural stability, with a silver coloration for ease of identification and aesthetic integration. Designed for a voltage rating up to 40V and a maximum current of 500mA, the 2086588121 supports safe AV signals in modern embedded systems or consumer devices.

The Type A HDMI format and right angle configuration allow for flexible PCB layouts, especially when space constraints require angled connections. Female contact gender ensures compatibility with standard male Type A HDMI cables for simple plug-and-play assembly. The connector’s operating temperature range of -20°C to +85°C makes it well-suited for both consumer electronics and industrial AV systems, covering typical environmental conditions in production and field use.

The Molex 208658 series addresses HDMI v2.1 requirements, supporting 19 circuits for full AV signal mapping without the need for additional mylar. This model is specifically adapted for surface mounting, enabling automated pick-and-place assembly and reducing production cycle times. Professionals frequently select this component for PCB assembly, AV interface panels, and retrofit tasks in advanced electronic builds.

With no explicit approvals required, the connector suits many commercial, industrial, and laboratory electronics projects including instrumentation displays, audio/video switching devices, and custom embedded boards. Its gold plating and robust housing offer excellent longevity, while the well-defined temperature range supports reliability in demanding applications.

19-way female HDMI connector; Type A, right angle form for wire-to-board designs. Brass contacts plated in gold ensure conductive integrity and corrosion resistance. Liquid crystal polymer housing supports structural stability and operational safety.

Rated for 40V and 500mA; suitable for modern AV interfaces and signal transmission. Silver finish; surface mount termination by solder for streamlined PCB integration. Operating temperature: -20°C to 85°C; ideal for industrial, laboratory, and commercial electronics.

Connector adheres to HDMI v2.1 format (19 circuits); no mylar, no special standards approvals. Explore Molex connectors for advanced AV, PCB, and electronics connectivity needs in EnvMart’s Electronic Components category.
