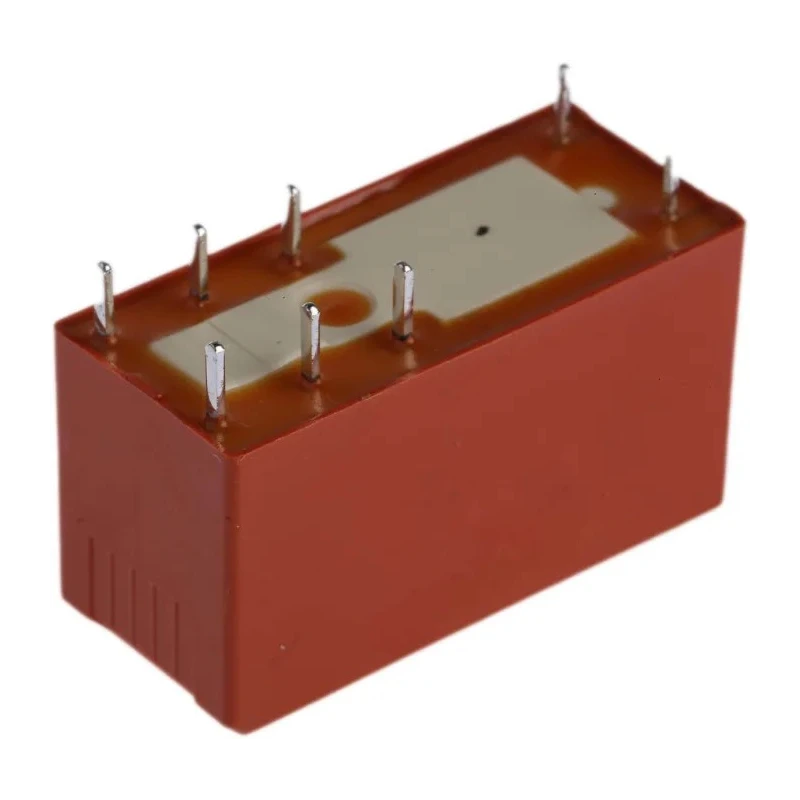

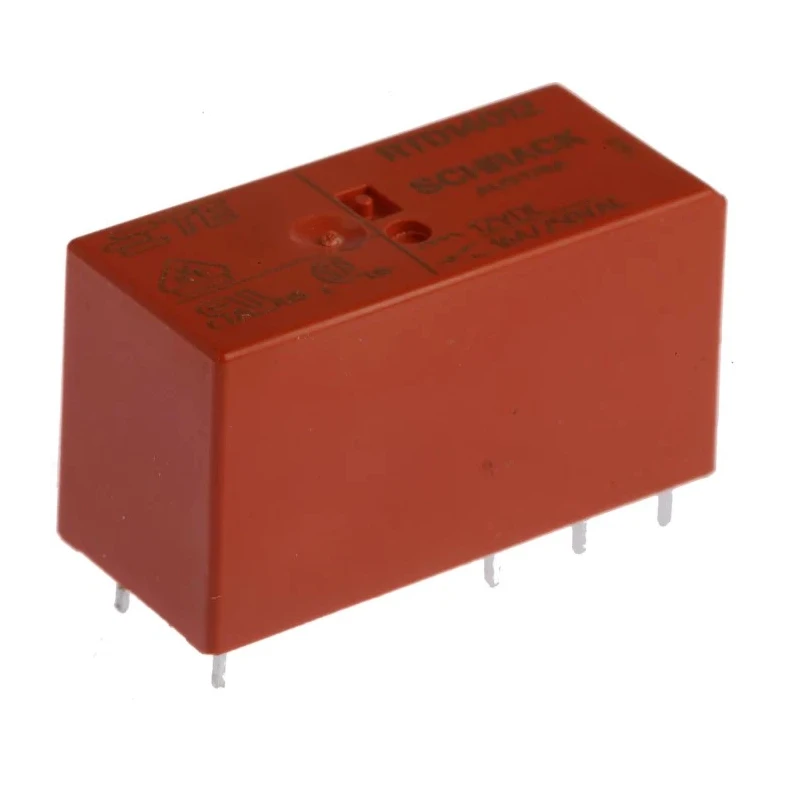

TE Connectivity PCB Power Relay, 12V DC Coil, 16A, SPDT, Solder, RT1 Series RTD14012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTD14012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | cULus, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Operates with a 12V DC coil for efficient control.
- Features a single pole double throw (SPDT) contact configuration.
- Rated for high switching current up to 16A.
- PCB mount design with solder terminals, ideal for circuit integration.
- Silver nickel alloy contacts ensure durability and conductivity.
- RT1 series construction for performance and safety.
- Creepage and clearance distances up to 10mm for insulation.
- Supports switching AC voltages up to 400V.
Product Description
The TE Connectivity RTD14012 is a robust PCB power relay designed for automation, control and switching tasks demanding high reliability and performance. With a 12V DC coil actuating a single pole double throw (SPDT) contact system, this relay is suited for managing loads up to 16A in industrial or domestic electronics.
Its PCB mount configuration and solder terminals facilitate secure and efficient integration on circuit boards, making it ideal for OEMs, panel builders, and automation system designers. The relay’s contact system is constructed from silver nickel alloy for enhanced conductivity and corrosion resistance, contributing to both long service life and reliable switching.
The RT1 series relay meets rigorous standards for insulation, offering creepage and clearance distances of 10mm. Its compact footprint (29mm x 12.7mm x 15.7mm) allows flexible installation in tight PCB layouts. The coil resistance is 360 Ohm, with a coil power requirement of 400mW, balancing sensitivity and energy consumption.
Operating temperature ranges from -40°C to 85°C, ensuring suitability across demanding environments. With UL, cULus, and VDE approvals, the relay supports 400V AC switching at 16A, offering broad applicability in heating systems, interface modules, security lighting, and automation controls.
Applications include industrial automation, domestic appliances, HVAC controls, security systems, and lighting circuits - requiring precise and reliable relay switching. 12V DC coil operation for easy integration with control logic.
SPDT contacts deliver versatile switching capability. High 16A switching current rating for handling substantial loads. Soldered PCB terminals ensure strong electrical connections. Silver nickel alloy contacts maximize durability and performance.
RT1 series meets international standards for quality. Compact construction minimizes space requirements. Wide operating temperature range and robust insulation properties. Browse more TE Connectivity relays and automation components in the Power Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 12V DC, allowing for easy integration with control logic.
It can handle a maximum switching current of 16A, making it suitable for substantial loads.
This relay features a single pole double throw (SPDT) contact configuration, providing versatile switching capabilities.
The dimensions of this model are 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for flexible installation in tight spaces.
The operating temperature range for this relay is from -40°C to 85°C, ensuring suitability for demanding environments.
The coil resistance is 360 Ohm, balancing sensitivity and energy consumption.
This model uses solder terminals, ensuring strong electrical connections on circuit boards.
The relay has cULus and VDE approvals, indicating compliance with international safety and performance standards.
It can switch AC voltages up to 400V, making it versatile for various applications.
The contacts are made from silver nickel alloy, which enhances conductivity and corrosion resistance.
This relay is suitable for applications in industrial automation, domestic appliances, HVAC controls, security systems, and lighting circuits.
This relay belongs to the RT1 series, known for its performance and safety features.
