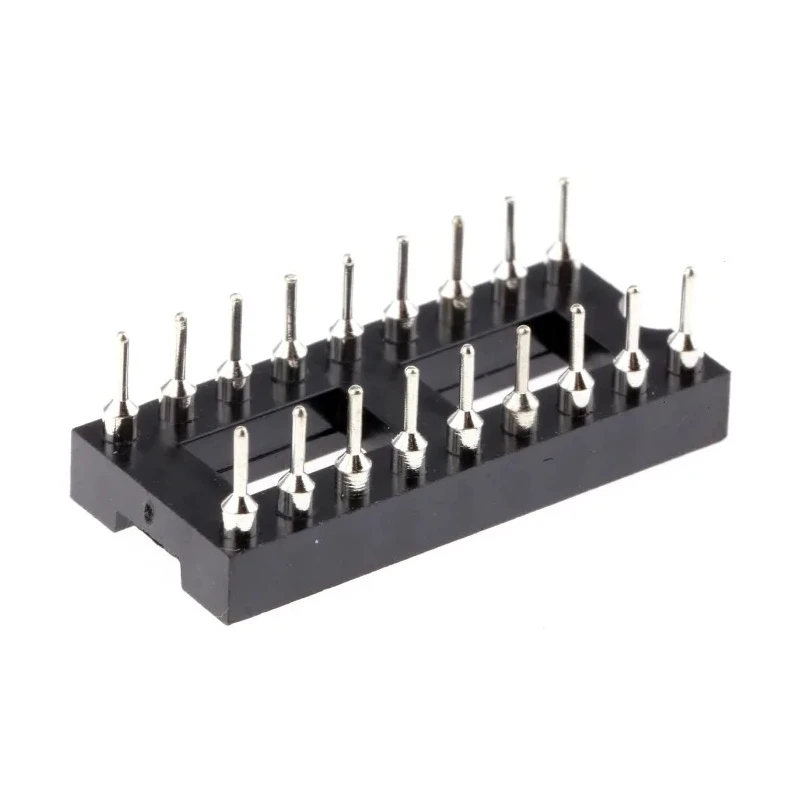

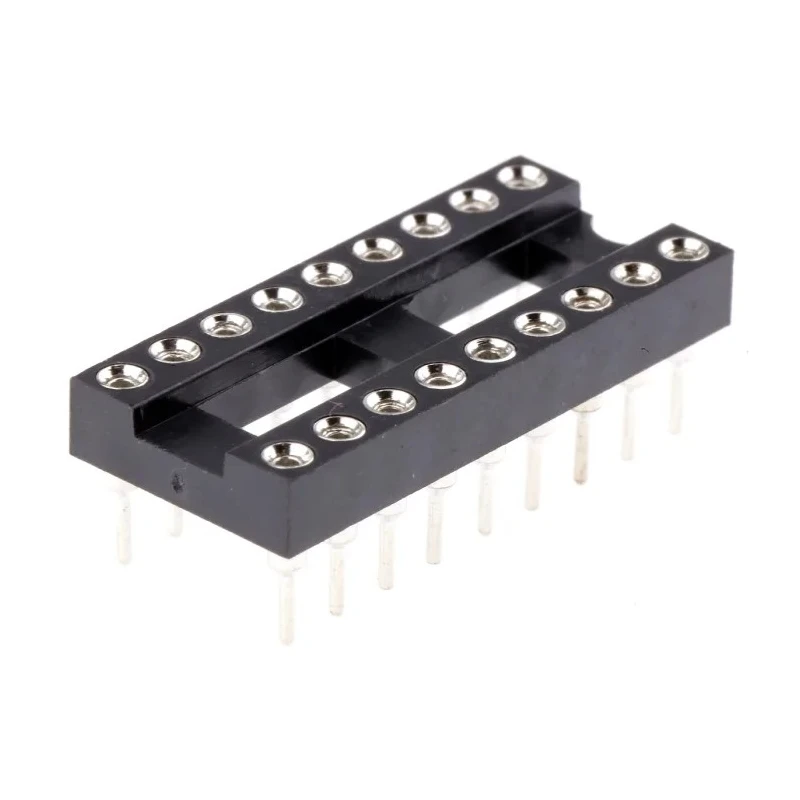

Winslow Vertical 18-Way Through Hole DIL Socket, 2.54 mm Pitch, Turned Pins, Open Frame, 5A W30518TTRC

Winslow W30518TTRC is a vertical 18-way dual in-line (DIL) socket with a 2.54 mm pitch, designed for reliable mounting of ICs in demanding electronic applications. Featuring a through-hole configuration, this socket integrates securely with printed circuit boards and supports robust soldered termination.

Engineered with turned pins, the W30518TTRC model ensures high conductivity and a dependable mechanical connection, suitable for both industrial and laboratory installations requiring precision interfacing. Its open frame structure facilitates easy inspection and cleaning of contact areas, maintaining performance over repeated insertions.

The socket supports a rated current of up to 5A, providing ample headroom for a range of signal and power ICs encountered in commercial, industrial, and laboratory electronics. Vertical orientation maximizes PCB real estate, allowing for stacked or densely packed designs.

Constructed with tin-plated beryllium copper alloy contacts, the device combines corrosion resistance with optimal signal integrity. The housing, made from strong polybutylene terephthalate (PBT), delivers exceptional thermal and mechanical performance, withstanding temperatures from -55°C to 150°C.

Typical electrical connectors benefit from this low-profile design, making it ideal for compact PCB layouts and automated assembly lines. With a row width of 7.62 mm, length of 22.78 mm, width of 4.6 mm, and depth of 10.14 mm, the socket fits standard 18-way DIL footprints.

Industrial, laboratory, and commercial electronics, including automation hardware, test equipment, and instrumentation, utilize these sockets for reliable IC interfacing. The solder termination is compatible with standard PCB manufacturing practices, ensuring broad usability.

18-way open frame dual in-line (DIL) socket for precision IC mounting. 2.54 mm pitch compatible with standard IC packages. Through-hole mount provides robust PCB integration. Turned pin design delivers high conductivity and secure mechanical retention.

Rated for up to 5A current handling for reliable operation. Vertical orientation optimizes board space and assembly. Contacts made from tin-plated beryllium copper alloy for durability and conductivity. Housing manufactured from polybutylene terephthalate for thermal stability.

Wide operating temperature range from -55°C to 150°C for industrial and electronic environments. Low-profile socket suitable for compact PCB layouts. Explore all Winslow DIL socket solutions and related PCB connector products in Electronics & Electricals on EnvMart.
