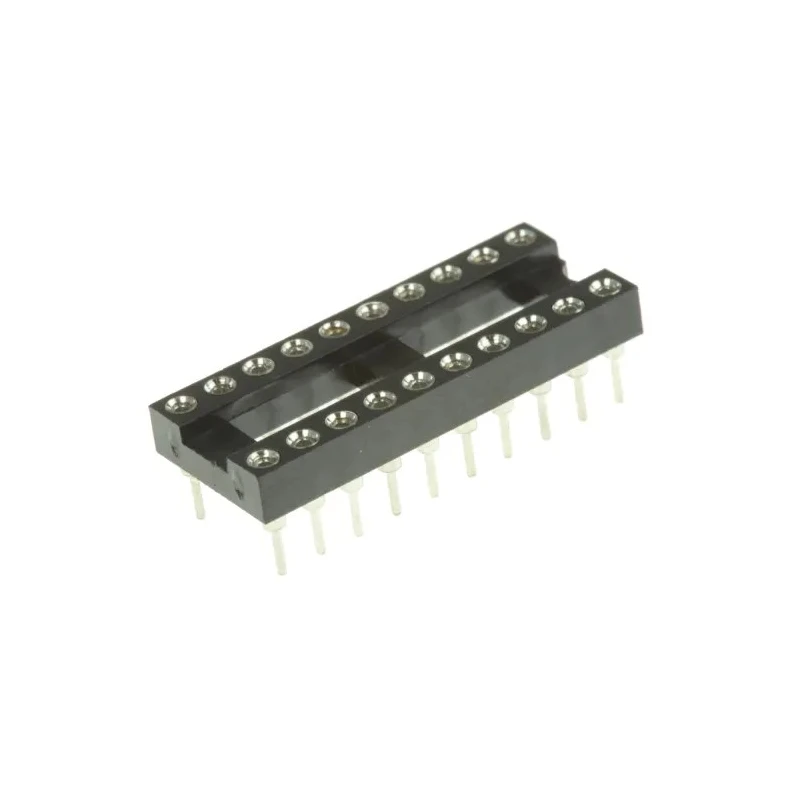

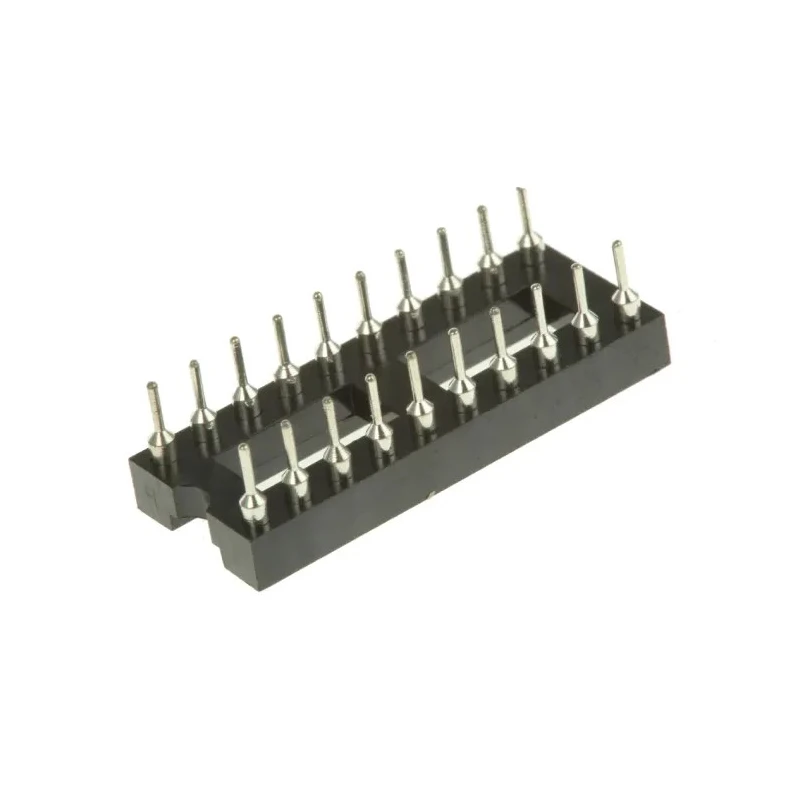

Winslow 2.54 mm Pitch Vertical 20 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30520TTRC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Winslow |
| Orientation | Vertical |
| Current | 5A |
| Temperature range | -55°C to +150 °C |
| Frame Type | Open Frame |
| Length | 25.32mm |
| Model | W30520TTRC |
| Depth | 10.14mm |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Beryllium Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -65°C |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Pin Type | Turned |
| Row Width | 7.62mm |
Key Features
- Supports 20 turned pin contacts for robust IC connections.
- Vertical open frame design enhances airflow and accessibility.
- Through hole mount enables secure and reliable installation on PCB boards.
- Rated for up to 5A current handling per contact.
- Beryllium copper contacts with tin plating ensure optimum conductivity and corrosion resistance.
- Operating temperature range from minus 65°C up to 150°C for flexibility in demanding environments.
- Tin over nickel-plated contact for added durability and performance.
- Polybutylene terephthalate housing offers high mechanical strength and stability.
Product Description
The Winslow W30520TTRC is a high-quality DIL (Dual In-Line) socket featuring a 2.54 mm pitch, a vertical orientation, and 20 turned pin contacts, purpose-built for through hole PCB mounting and rated for a current of up to 5A per contact. This open frame socket is commonly used in electronics and embedded systems for reliable IC socketing and easy chip replacement, ensuring robust mechanical and electrical performance in a variety of industrial and commercial applications.
Each socket is constructed with beryllium copper alloy contacts, overlaid with tin plating to provide excellent conductivity, corrosion resistance, and durability. The four-finger contact design (3 to 5 microns) allows a secure and low-resistance connection to pins, reducing the risk of intermittent faults or signal degradation.
The open frame architecture increases airflow around the IC and facilitates heat dissipation, while also making inspection and chip insertion/removal easier. The housing is made of polybutylene terephthalate (PBT), a material chosen specifically for its strong mechanical properties, dimensional stability, and resistance to temperature extremes.
Designed for through hole mounting, the W30520TTRC socket can be soldered firmly onto PCBs, providing a long-term stable placement and compatibility with typical DIP layouts. With a standard pitch of 2.54 mm and row width of 7.62 mm, it supports a wide range of IC types and configurations. The socket measures approximately 25.32 mm in length, 10.14 mm in depth, and 4.6 mm in width.
The product is engineered for high reliability, supporting a wide working temperature range from -65°C to 150°C, making it suitable for both consumer electronics and demanding industrial environments.
This DIL socket is ideal for applications in electronic manufacturing, PCB assembly, laboratory prototyping, education, instrumentation, embedded control panels, and industrial automation.
Browse more Winslow sockets and PCB mounting solutions in Electronics Components at EnvMart.
Explore more products in our PCB Socket category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Winslow W30520TTRC DIL socket is rated for a maximum current of 5A per contact.
This model features a pitch size of 2.54 mm, which is standard for many dual in-line package (DIP) configurations.
The contacts are made of beryllium copper alloy and are plated with tin to enhance conductivity and corrosion resistance.
It operates within a temperature range of -65°C to +150°C, making it suitable for various environments.
This unit is designed for through hole mounting, allowing secure soldering onto printed circuit boards (PCBs).
The socket measures approximately 25.32 mm in length, 10.14 mm in depth, and 4.6 mm in width.
It features an open frame design that enhances airflow and accessibility for easier chip insertion and removal.
The W30520TTRC supports 20 turned pin contacts, facilitating robust connections for integrated circuits.
This model uses solder termination for secure connections on PCBs.
The row width of the socket is 7.62 mm, which is compatible with standard DIP layouts.
The Winslow W30520TTRC is manufactured in India.
It is suitable for applications in electronic manufacturing, PCB assembly, laboratory prototyping, and industrial automation.
