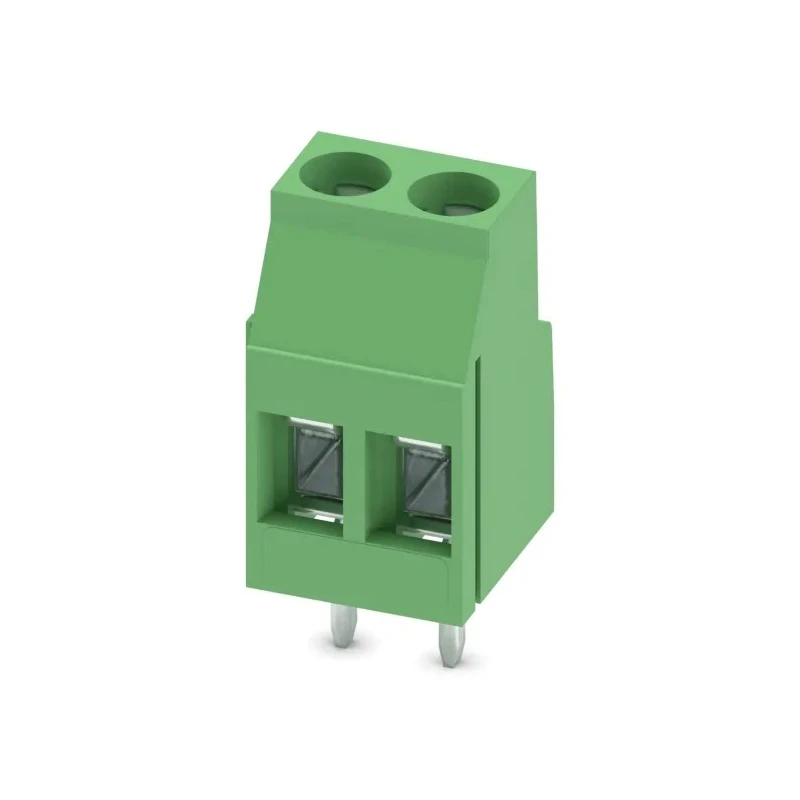

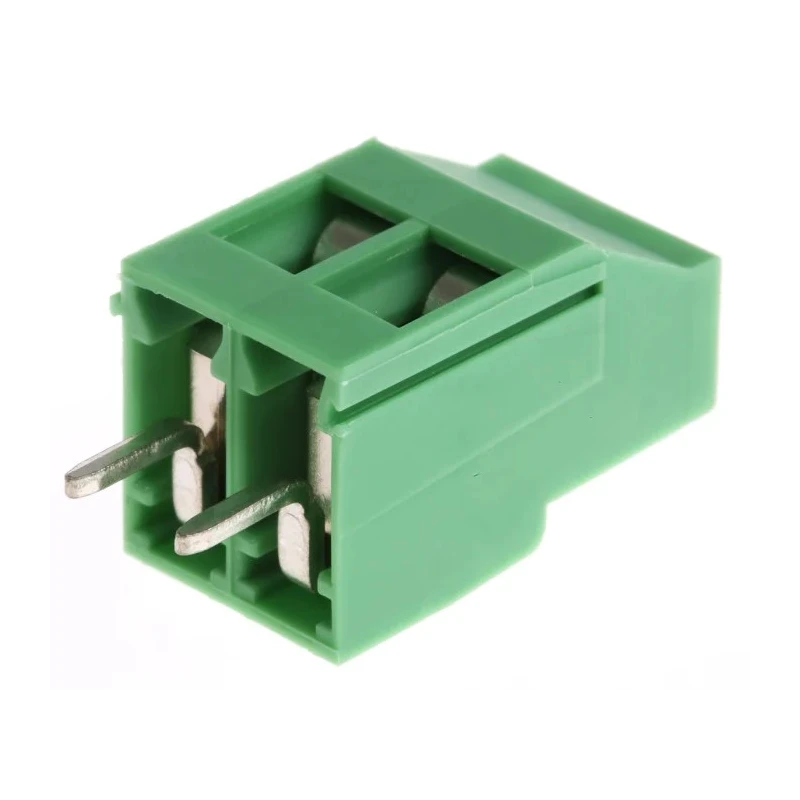

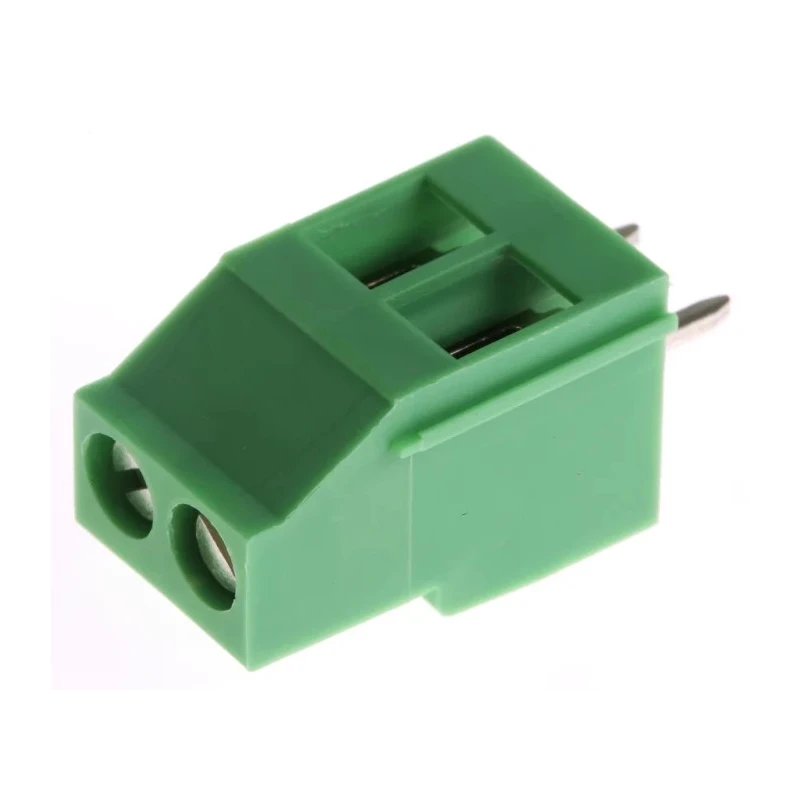

Phoenix Contact MKDS 3/2 Series PCB Terminal Block 2-Contact 5 mm Pitch 1 Row 24A Green Right Angle 1711026

The Phoenix Contact MKDS 3/2 Series PCB Terminal Block, model 1711026, is a robust and versatile component engineered for dependable electrical connections in modern electronic assemblies. This terminal block features two contact positions in a single row with a 5 mm pitch, offering a compact solution for high-density PCB layouts where space efficiency is critical.

Constructed with a durable green polyamide housing, the block provides strong insulation properties and resistance to mechanical stresses encountered in industrial environments. It is equipped with a right-angle orientation, simplifying the routing of conductors along the PCB edge. Through-hole mounting ensures the connection remains secure during assembly and operation.

The terminal block is rated for currents up to 24A and voltages up to 320V, making it well-suited for automation, machinery, and power electronic circuits requiring consistent performance under demanding load conditions. The screw connection technology enables robust wire retention and is compatible with both solid and flexible conductors. Supported wire sizes range from 0.2mm² to 4mm² (24AWG to 12AWG), ensuring adaptability across a variety of wiring applications.

An integrated protective guide functions as an anti-mismating feature, helping to direct conductors into their correct positions, thus reducing risks of improper connections and installation errors. The terminal block’s low temperature rise under load is achieved through optimized contact force, supporting reliability in continuous operational environments. The modular latch system allows multiple blocks to be securely joined, facilitating multi-position configurations without compromising stability.

Common applications include control cabinet assembly, compact wiring setups in industrial automation, electrical panels for machinery, and general electronic equipment where reliability, safety, and assembly ease are key. For installation, the block is designed for soldering, providing a permanent and vibration-resistant connection. Its green color coding aids in straightforward wiring identification during integration and maintenance.

Phoenix Contact is recognized globally for high-quality connection technology, making the 1711026 an ideal choice for professionals and system integrators who require reliability and efficiency from their PCB terminal blocks.
