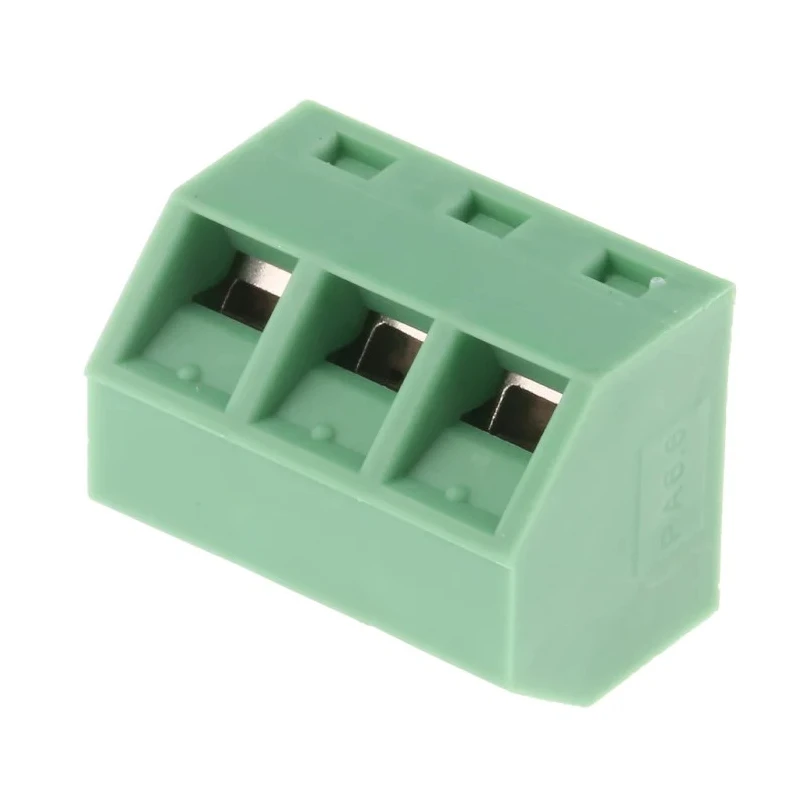

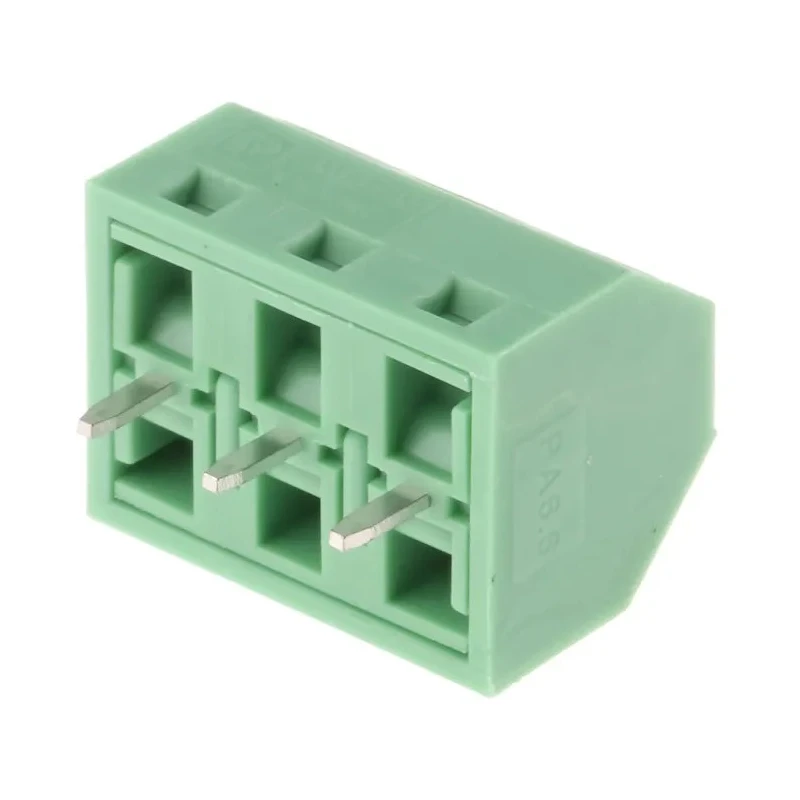

Phoenix Contact PCB Terminal Block 3 Contacts 5 mm Pitch 45° Angled Wave Soldering Mount SMKDSN 1.5/3-5.08 1869224

Phoenix Contact model 1869224 is a SMKDSN 1.5/3-5.08 Series PCB Terminal Block specifically engineered for applications requiring reliable, wave soldering mount connections. This robust terminal block is optimized for mounting on printed circuit boards where secure and efficient wire connectivity is essential for electronic and industrial equipment.

Featuring a 45° angled orientation, the connector greatly facilitates multi-row arrangements on the PCB, supporting design flexibility and ease of access. With a 5 mm pitch between contacts and provision for three contacts in a single row, it suits a broad range of PCB layouts while maintaining high electrical integrity.

Performance is assured by a current rating of up to 13.5A and a voltage rating of up to 400V, making it suitable for applications demanding substantial electrical throughput. The screw terminal connection system enables straightforward, reliable wire attachment, accommodating a variety of wire gauges and ensuring a strong mechanical and electrical link.

The terminal block is constructed from durable polyamide material and comes in a green color for standard circuit identification. Its compact footprint and high contact force support low-temperature rise and excellent performance even with extended operational loads. Linear pinning allows straightforward integration into PCB designs.

This product is recognised under CSA, cULus, and EU RoHS standards, assuring compliance with major international safety and environmental guidelines. It is ideally suited for use in electronic panels, manufacturing equipment, laboratory instruments, and industrial control systems where robust PCB connection solutions are necessary.

Designed for high reliability wave soldering mount applications. Accommodates 3 contacts in a single row with 5 mm pitch. 45° angled connector supports multi-row PCB arrangements. Rated for up to 13.5A current and 400V voltage.

Screw connection terminals ensure secure wire fixing. Compact, durable polyamide construction in green color. Recognised to CSA, cULus and EU RoHS standards. Ideal for PCB headers in industrial and electronic designs. Explore more PCB Terminal Block solutions in Electronics & Electricals categories from Phoenix Contact on EnvMart.
